BERGONZI F 32
- Condition: used
- published: 15/06/2026
- 26IND49253
Technical data
- Condition: used
- Year: undefined
- Drilling capacity : 31/40 mm
- Outreach : 801/1200 mm
Description

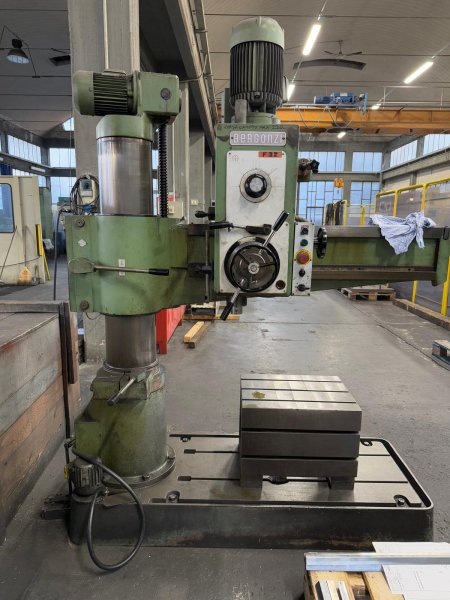

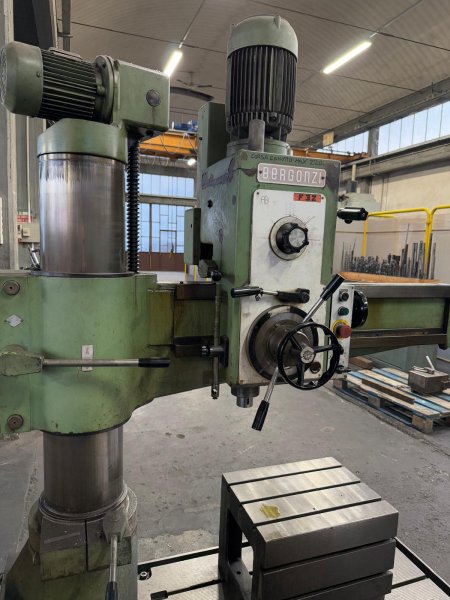

BERGONZI F 32 RADIAL DRILLING MACHINE
Maximum working diameter 35/45 mm.
Maximum distance between spindle center and column 1,000 mm.
Maximum distance between spindle nose and base 1,070 mm.
Spindle d ...
BERGONZI F 32 RADIAL DRILLING MACHINE
Maximum working diameter 35/45 mm.
Maximum distance between spindle center and column 1,000 mm.
Maximum distance between spindle nose and base 1,070 mm.
Spindle diameter - C.M. 4; 70 mm.
Spindle stroke 220 mm.
Spindle speed 60 - 1,300 rpm.
Spindle motor power 2.8 hp.
Column diameter 210 mm.
Total weight 1,400 kg.
Complete with:
- cube 500 x 400 x 380 H mm.
