SAN ROCCO mec 80 b4
- Condition: used
- published: 15/06/2026
- 26IND49254
Technical data
- Condition: used
- Year: undefined
- Mandrel diameter: 0/100 mm
- X-axis travel: 1001/2000 mm
- Y-axis stroke: 1001/2000 mm
Description

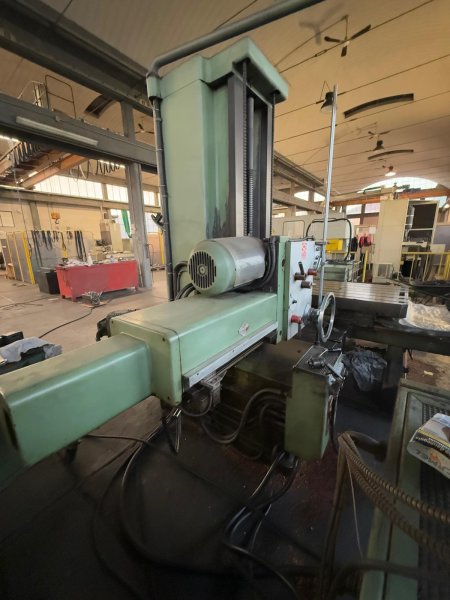

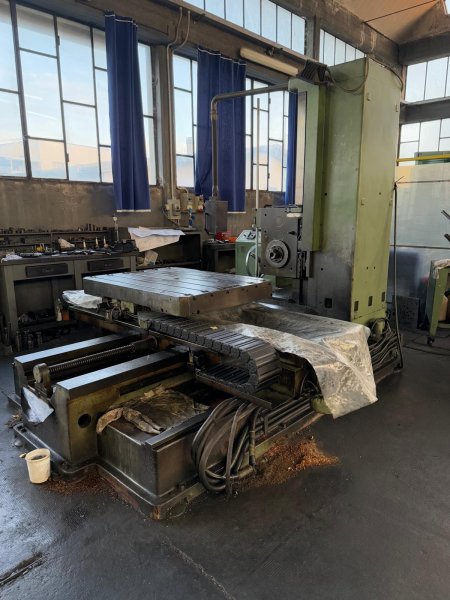

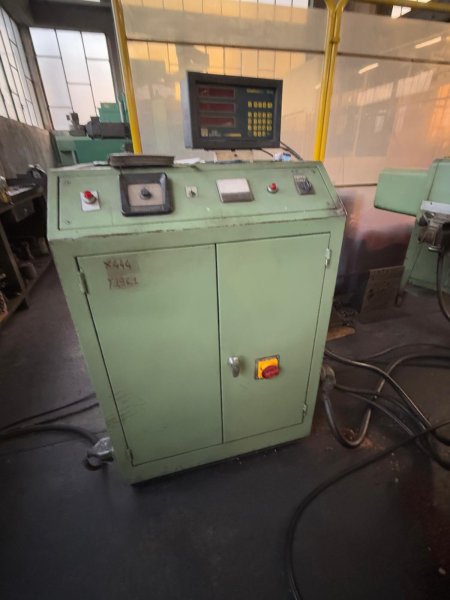

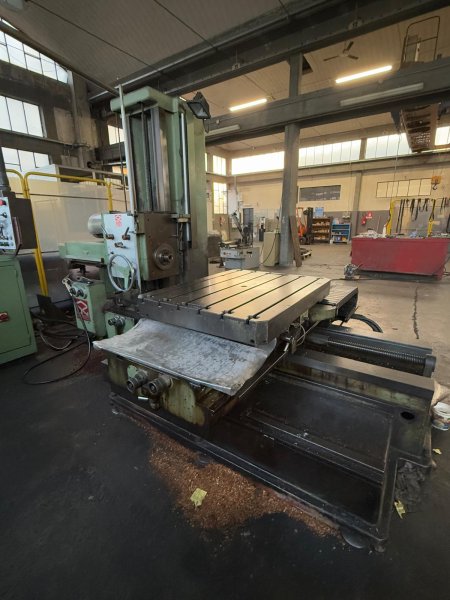

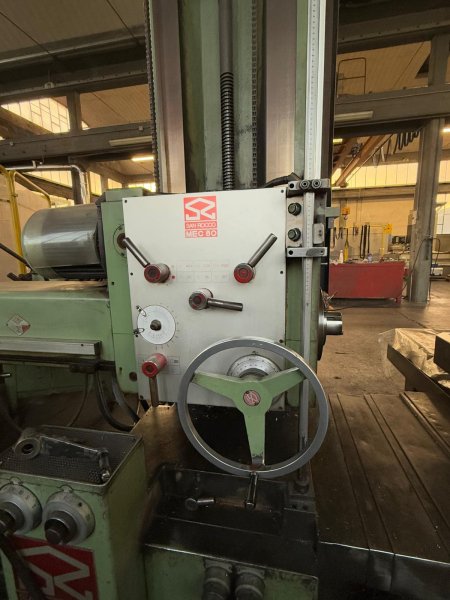

SAN ROCCO MEC 80 B4 TABLE BORING MACHINE
Transverse travel (X) 1,500 mm
Longitudinal travel (W) 1,000 mm
Vertical head travel (Y) 1,200 mm
Table 1,220 x 920 mm
Table load capacity 3,000 kg
Spindle dia ...
SAN ROCCO MEC 80 B4 TABLE BORING MACHINE
Transverse travel (X) 1,500 mm
Longitudinal travel (W) 1,000 mm
Vertical head travel (Y) 1,200 mm
Table 1,220 x 920 mm
Table load capacity 3,000 kg
Spindle diameter 80 mm
Spindle taper ISO 40
Spindle travel (Z) 600 mm
Spindle speed - No. 12; 15 - 1,100 rpm
Spindle motor power 27 kW
Working feeds 10 ÷ 1,000 mm/min
Rapid feeds 2,400 mm/min
Total weight 9,000 kg
Complete with:
- viewer
