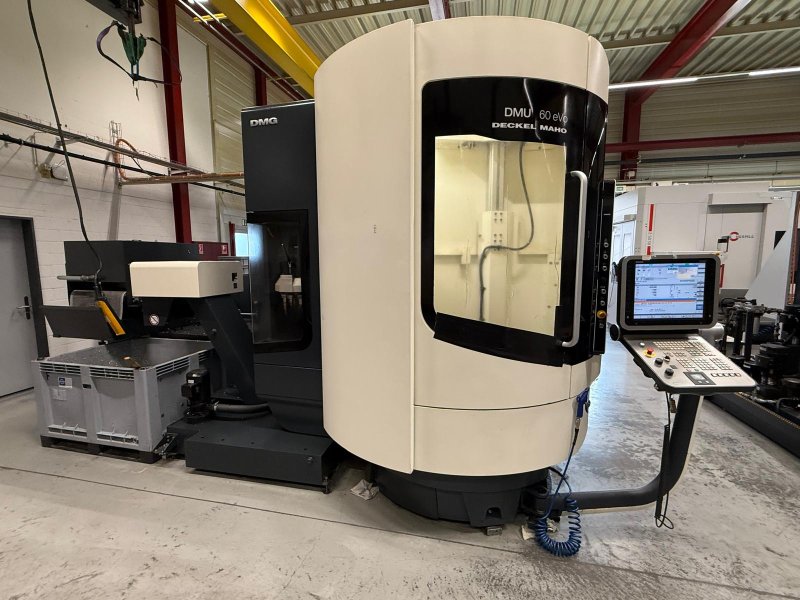

DECKEL MAHO DMU 60 eVo 2012
- Condition: used
- published: 17/06/2026
- 26IND49257
Technical data
- Condition: used
- Year: 2012
Description

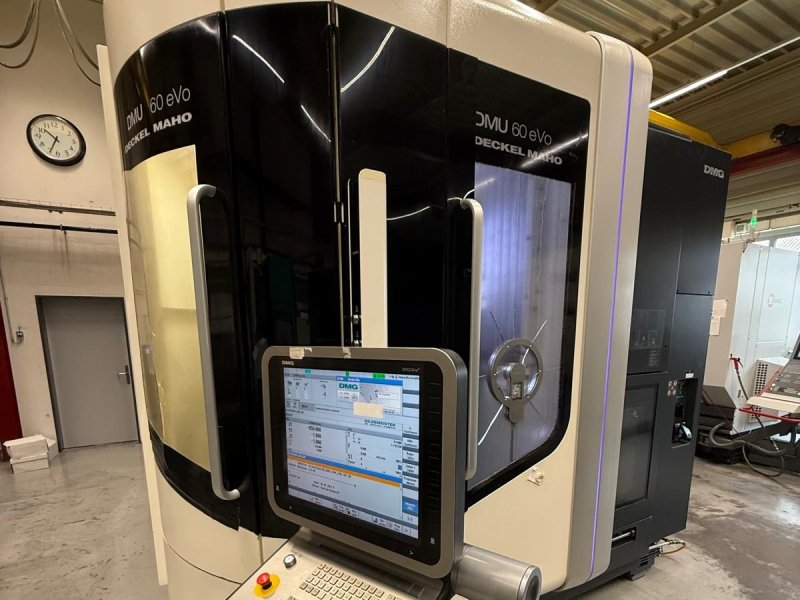

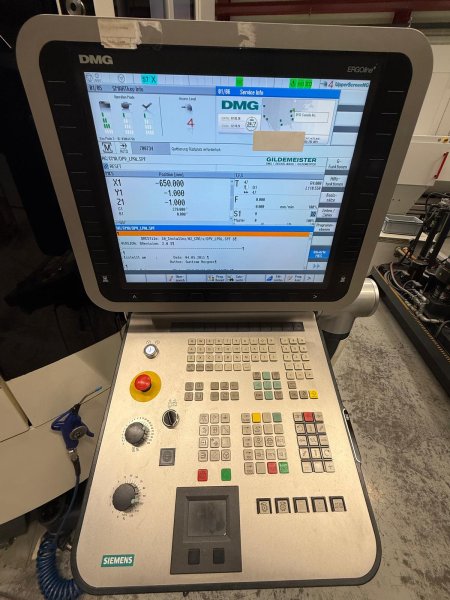

CNC Control: Siemens 840D 3D Control
Axes
X-axis travel (mm): 600
Y-axis travel (mm): 500
Z-axis travel (mm): 500
C-axis tilt (degrees): 360° (0.001)
B-axis tilt (degrees): -5 / +110°
Distance betw ...
CNC Control: Siemens 840D 3D Control
Axes
X-axis travel (mm): 600
Y-axis travel (mm): 500
Z-axis travel (mm): 500
C-axis tilt (degrees): 360° (0.001)
B-axis tilt (degrees): -5 / +110°
Distance between spindle and table surface (mm): 600
Feed rate (m/min): 80
Rapid feed (m/min): 80
Acceleration on axes (m/s²): 10

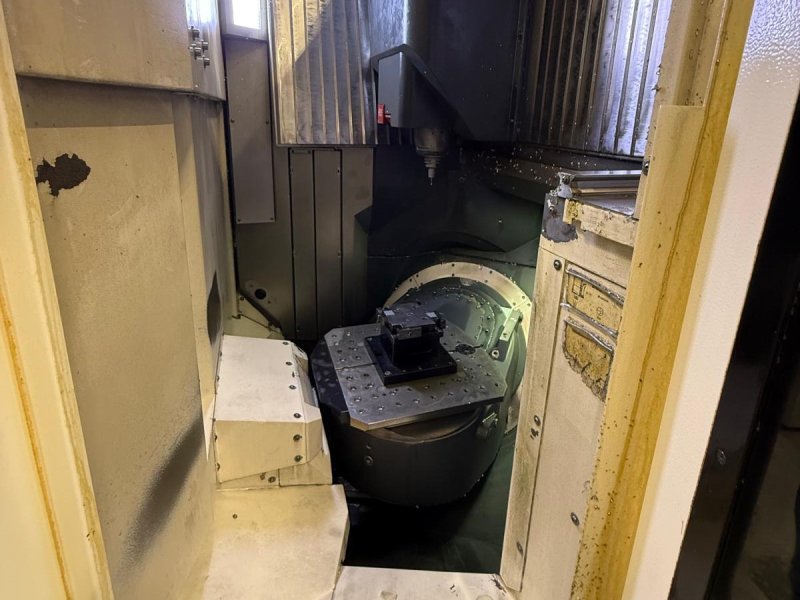

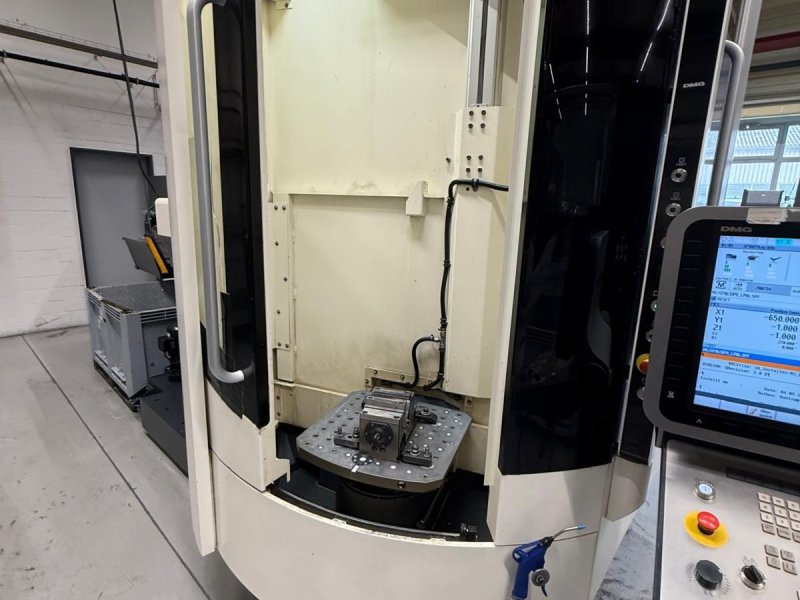

Worktable
Number of pallets: 2
Table dimensions (mm): 500 x 500
Maximum workpiece size (D x H) (mm): 500 x 525
Maximum workpiece weight (kg): 240
Spindle
Spindle speed rpm: 18000
Spindle power kW: 35/25 (40%ED/cont)
Spindle torque Nm: 130/87 (40/100%ED)
Cooling
Through-spindle coolant bar: 40
Cooling tank capacity liters: 980
Tool system

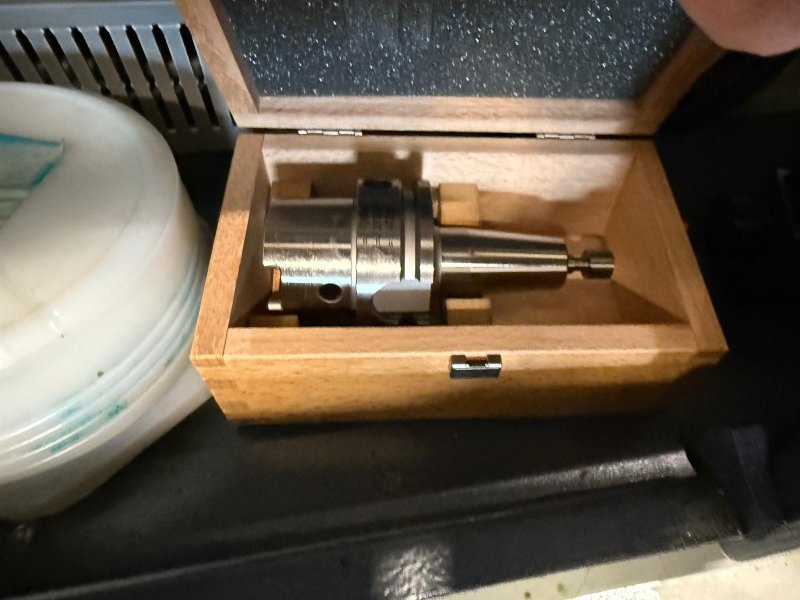

Tool holder: HSK-A 63
Tool magazine positions: 60
Tool changer: Double gripper
With adjacent positions free mm: 130
With adjacent positions occupied mm: 80
Maximum length Tool diameter (mm): 300
Maximum tool weight (kg): 6
Chip-to-chip time (s): 4.5
Equipment
Electronic handwheel
Chip extractor

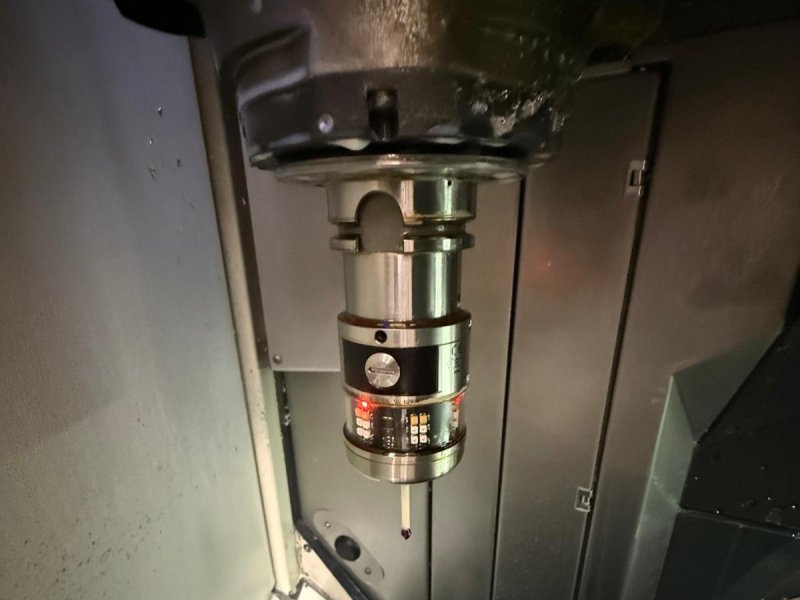

Infrared probe
Wash gun
Mist collector
Programmable coolant nozzles
DXF import function
Internal cooling
Electrical cabinet active cooling unit
Temperature compensation

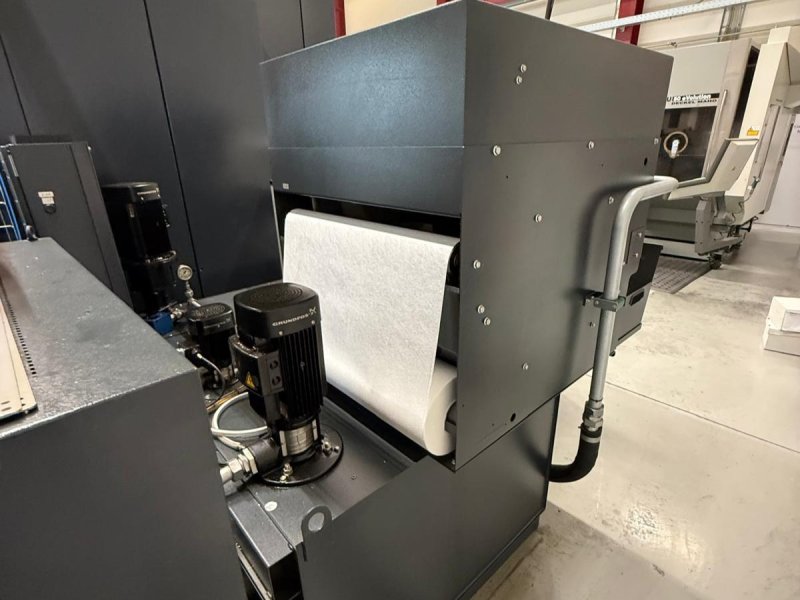

Paper web filter
DMG AUTOshutdown
DMG GREENmode
DMG MACHINEcheck
High-Speed Setting
DMG Netservice client
DMG Service Agent

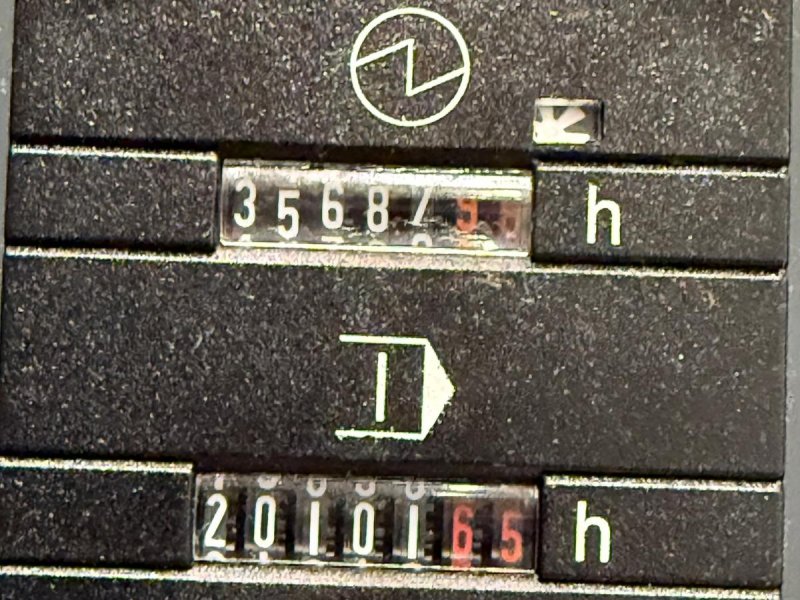

Machine operating times
Under voltage: 35687
Spindle operating times: 20101
Rated power (kVA): 70
Basic machine dimensions / weight
Length (mm): 4700
Width (mm): 6000
Height (mm): 2800
Weight (kg): 12000
