ASQUITH WNCR CNC 1987
- Condition: used
- published: 17/06/2026
- 26IND49259
Technical data
- Condition: used
- Year: 1987
Description

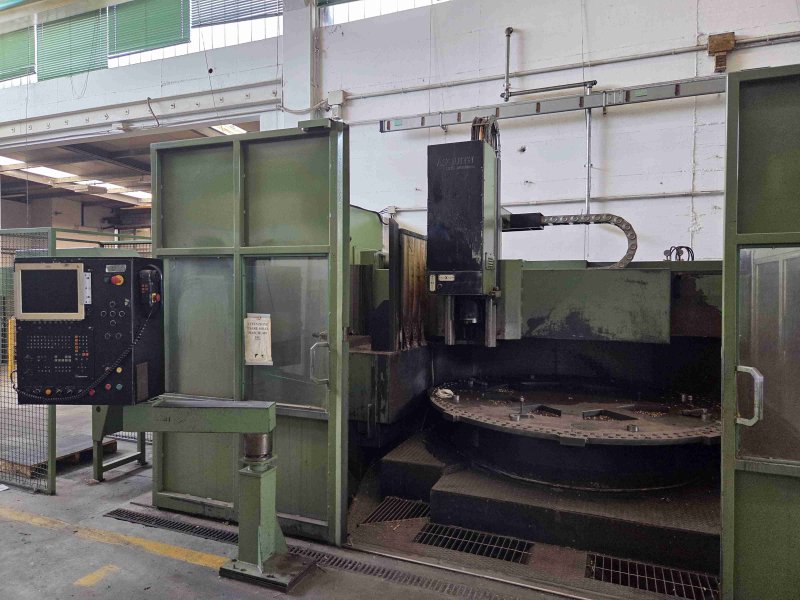

ASQUITH WNCR CNC ROTARY TABLE VERTICAL DRILLING MACHINE

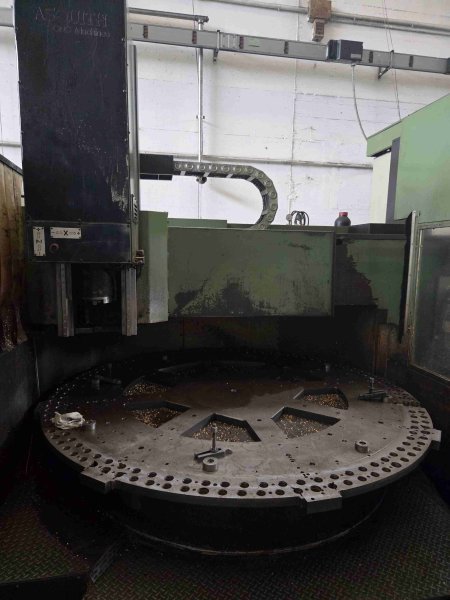

Table diameter (C) 2,000 mm.
Maximum working diameter 2,000 mm.
Maximum working height 500 mm.
Table load capacity 15 tons.
Table speed 0-2 rpm. ...
ASQUITH WNCR CNC ROTARY TABLE VERTICAL DRILLING MACHINE
Table diameter (C) 2,000 mm.
Maximum working diameter 2,000 mm.
Maximum working height 500 mm.
Table load capacity 15 tons.
Table speed 0-2 rpm.
Drill head transverse travel (X) 1,000 mm.
Spindle vertical travel (Z) 500 mm.
Spindle taper ISO 50
Spindle speed 30-3,000 rpm.
Spindle diameter 85 mm.
Spindle motor power 27 kW.

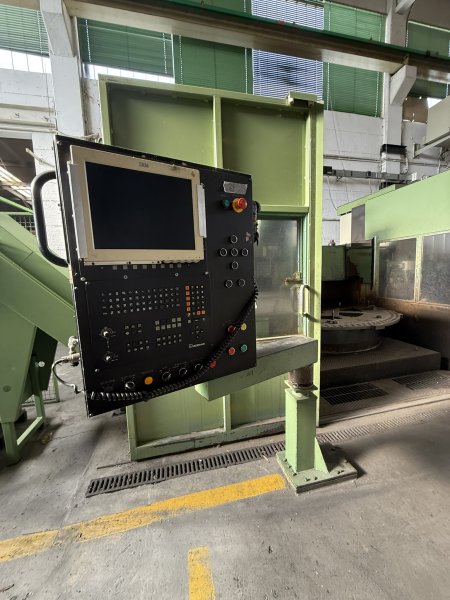

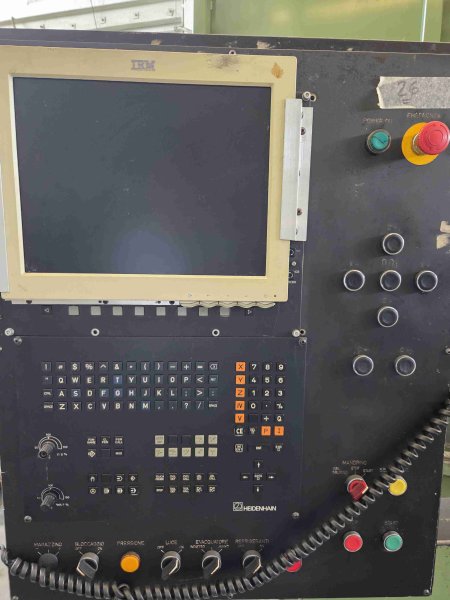

Heidenhain TNC 415 CNC
Total weight 12 tons.
Year of construction/overhaul 1987/2013
Complete with:
- 16-slot tool magazine
- Internal spindle coolant
- Chip conveyor
- Cover
