GUALDONI GV 93 CNC 1998
- Condition: used
- published: 17/06/2026
- 26IND49260
Technical data
- Condition: used
- Year: 1998
- X-axis travel: 0/4000 mm
Description

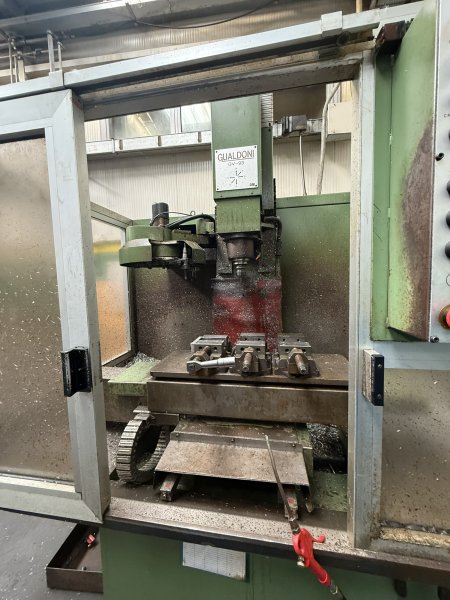

GUALDONI GV 93 CNC VERTICAL MILLING MACHINE
Table 800 x 250 mm.
Table transverse travel (X) 450 mm.
Table longitudinal travel (W) 250 mm.
Head vertical travel (Y) 500 mm.
Spindle taper ISO 30
Spindle ...
GUALDONI GV 93 CNC VERTICAL MILLING MACHINE
Table 800 x 250 mm.
Table transverse travel (X) 450 mm.
Table longitudinal travel (W) 250 mm.
Head vertical travel (Y) 500 mm.
Spindle taper ISO 30
Spindle motor power 5 kW
Spindle speed 100 ÷ 8,000 rpm
Working feeds (X; W; Y) 10 ÷ 5,000 mm/min.
Rapid feeds (X; W; Y) 15,000 mm/min.

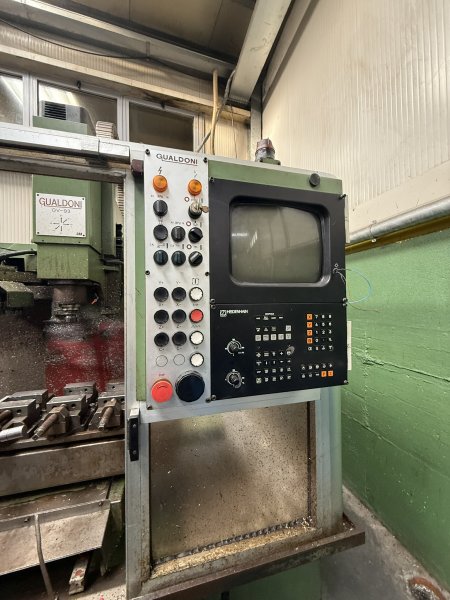

Heidenhain 360 CNC
Total weight 2,000 kg.
Built in 1998
Complete with:
- 10-slot tool magazine
- 3 vices

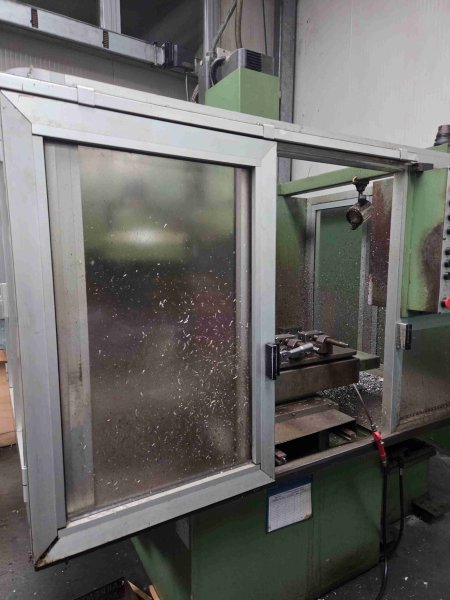

- Safety guards
