VAM 250 S/V 1995
- Condition: used
- published: 09/07/2026
- 26IND49269
Technical data
- Condition: used
- Year: 1995
Description

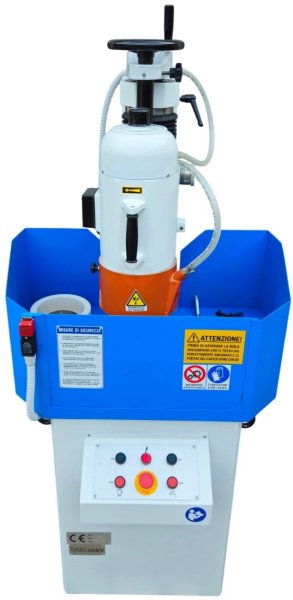

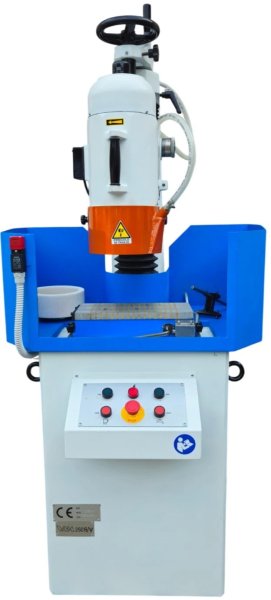

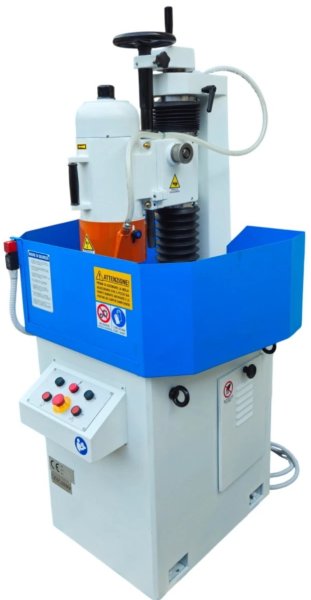

VAM GRINDING MACHINE
WITH REINFORCED COLUMN
MODEL 250 S/V
COMPLETE WITH NEW 350 X 150 MM MAGNETIC CHUCK
USED MACHINE, CE, REFURBISHED AND APPROVED
FEATURES
• Base and column support arm: made of t ...
VAM GRINDING MACHINE
WITH REINFORCED COLUMN
MODEL 250 S/V
COMPLETE WITH NEW 350 X 150 MM MAGNETIC CHUCK
USED MACHINE, CE, REFURBISHED AND APPROVED
FEATURES
• Base and column support arm: made of the highest-quality monolithic cast iron with ribs at the points subjected to the greatest stress, ensuring maximum rigidity of the grinding wheelhead.
• Grinding wheel motor head: composed of a special three-phase motor with external ventilation and dynamic balance, whose large spindle rotates on special bearings suitable for high speeds, with automatic backlash compensation.
• Column: cast iron, hinged on the column support arm by means of large, adjustable tapered roller bearings, ensuring maximum rigidity against bending.
• Rapid vertical feed: achieved by means of a handwheel acting on a pair of helical gears.
• Micrometric vertical feed: achieved by means of a pawl located on the handwheel drum; it can be engaged or disengaged, allowing direct readings on the handwheel vernier scale to 0.01 mm.
SUPPLIED ACCESSORIES
• Cooling system with electric pump
• Grinding wheel holder complete with cup wheel
• Protective cover
• Service key
• Very low voltage controls

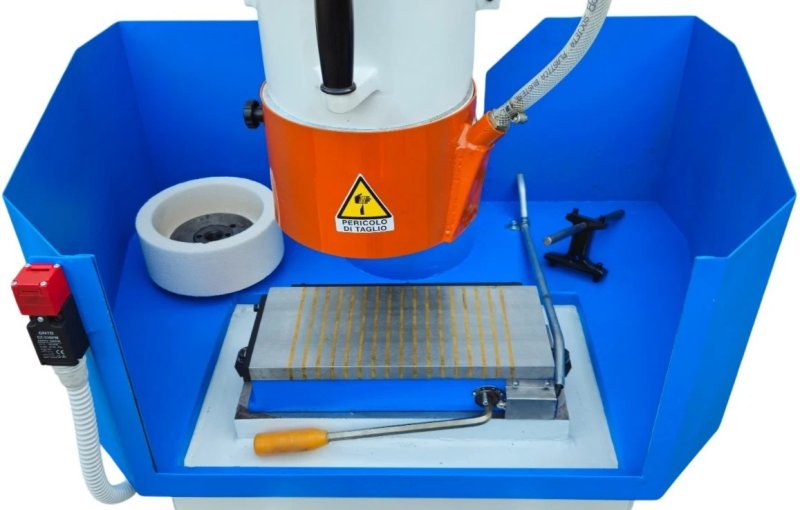

• New permanent magnetic chuck 350 x 150 mm
TECHNICAL DATA
Item 250 S/V
DISTANCE BETWEEN TABLE AND WHEEL (without magnetic chuck) 250 mm
MAXIMUM GRINDING SURFACE 170 x 340 mm
MICROMETRIC FEED WITH A TINTING 0.01 mm
WHEEL HOLDER SPINDLE ROTATION SPEED 2800 rpm
CUP WHEEL DIMENSIONS 200 x 76 x 78 mm
WHEEL MOTOR POWER 3 kW
ELECTRIC PUMP POWER 0.09 kW
MAXIMUM INSTALLED POWER 3.09 kW
MACHINE WEIGHT: 500 kg
WE REMAIN AVAILABLE FOR ANY FURTHER TECHNICAL AND/OR COMMERCIAL INFORMATION REQUIREMENTS.
Working
Revised
CE compliant
Retrofitted
