LTF 662.00
- Condition: used
- published: 18/06/2026
- 26IND49270
Technical data
- Condition: used
- Year: undefined
Description

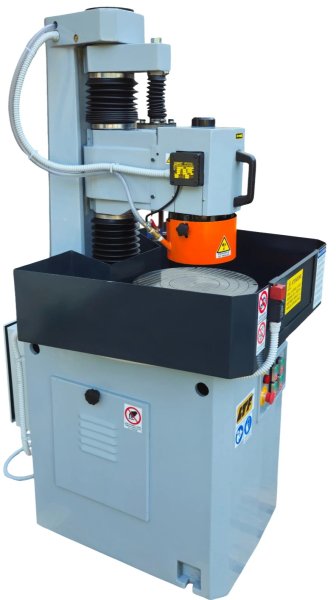

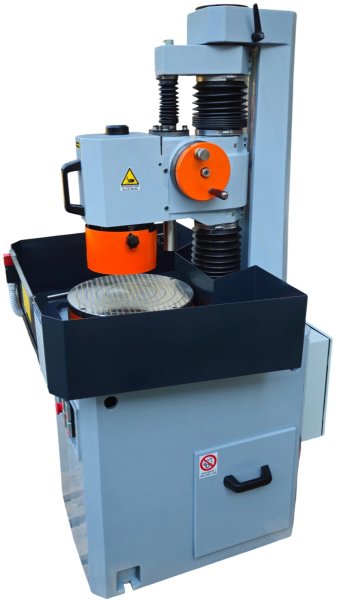

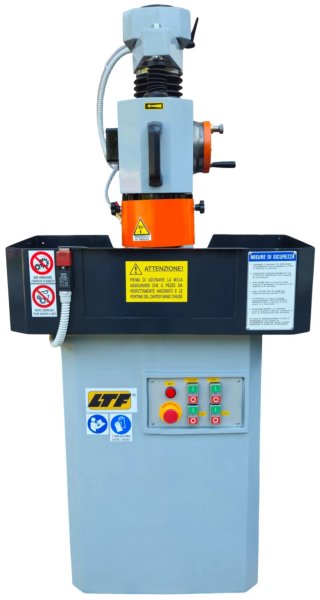

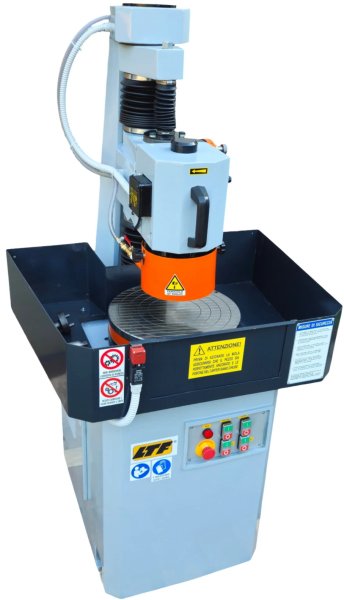

LTF 662.00 GRINDING MACHINE
WITH EXTRA-TYPE REINFORCED COLUMN
WITH ROTARY TABLE AND MAGNETIC CHUCK
USED MACHINE, FULLY OVERHAULED AND COMPLIANT TO SAFETY STANDARDS
FEATURES
• Base and column suppo ...
LTF 662.00 GRINDING MACHINE
WITH EXTRA-TYPE REINFORCED COLUMN
WITH ROTARY TABLE AND MAGNETIC CHUCK
USED MACHINE, FULLY OVERHAULED AND COMPLIANT TO SAFETY STANDARDS
FEATURES
• Base and column support arm: made of the highest-quality cast iron with ribs at the points subjected to the greatest stress, ensuring maximum rigidity for the grinding wheelhead.
• Grinding wheel motor head: composed of a special three-phase motor with external ventilation and dynamic balance, whose large spindle rotates on special bearings suitable for high speeds, with automatic backlash compensation.
• Column: cast iron, hinged to the column support arm by means of large, adjustable tapered roller bearings, ensuring maximum rigidity against bending.
• Rapid vertical feed: This is achieved by means of a graduated handwheel that acts on a pair of helical gears, allowing a feed rate of 2 mm per revolution.
• Micrometric vertical feed: This is achieved by means of a pawl located on the handwheel drum; it can be engaged or disengaged, allowing direct readings on the handwheel vernier scale to the nearest 0.01 mm.
ACCESSORIES SUPPLIED
• Coolant system with electric pump
• Grinding wheel holder complete with cup wheel
• Protective cover
• Service wrenches
• New electrical system with very low voltage controls

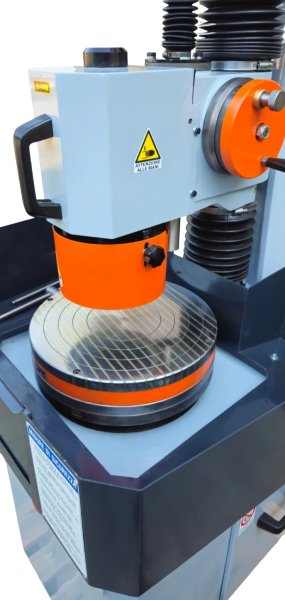

• Permanent magnetic chuck, diameter 400 mm

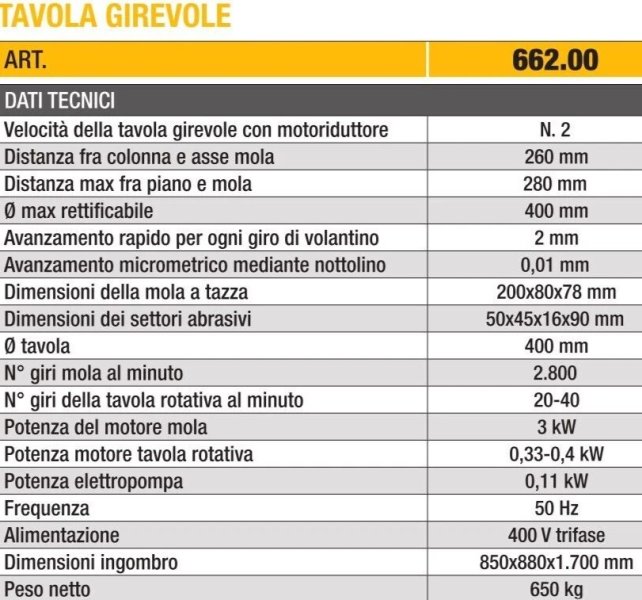

TECHNICAL CHARACTERISTICS
ITEM 662.00
Distance between column and grinding wheel axis: 260 mm
Maximum distance between table and grinding wheel: 280 mm
Maximum grinding surface: Ø 400 mm
Rapid feed per handwheel turn: 2 mm
Micrometric feed with pawl: 0.01 mm
Cup grinding wheel dimensions: 200 x 80 x 78 mm
Table diameter: 400 mm
Rotary table speed with gearmotor: 2
Rotary table revolutions per minute: 20-40
Rotary table motor power: 0.33-0.4 kW
Grinding wheel revolutions per minute: 2,800
Grinding wheel motor power: 3 kW
Electric pump power: 0.11 kW
Three-phase power supply: 50 Hz, 220/380 V
Overall dimensions: mm 950x1050x1700
Net weight 650 kg
Working
Revised
CE compliant
Retrofitted
