GRAZIOLI dania
- Condition: used
- published: 18/06/2026
- 26IND49274
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description

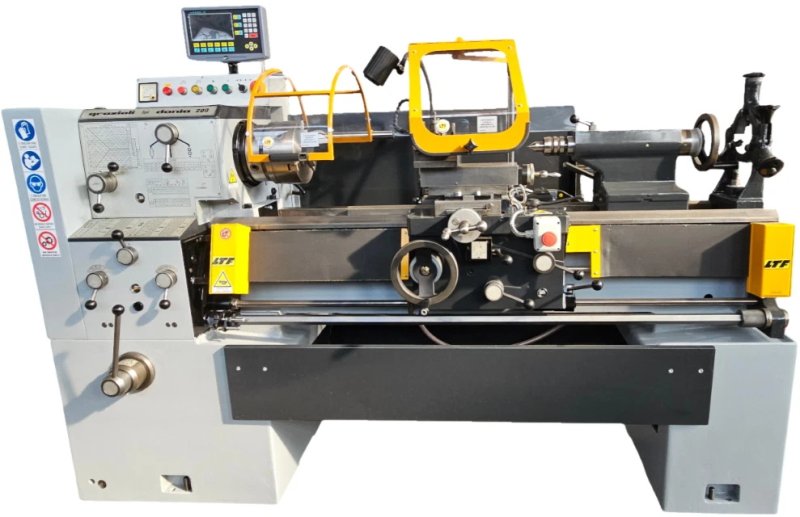

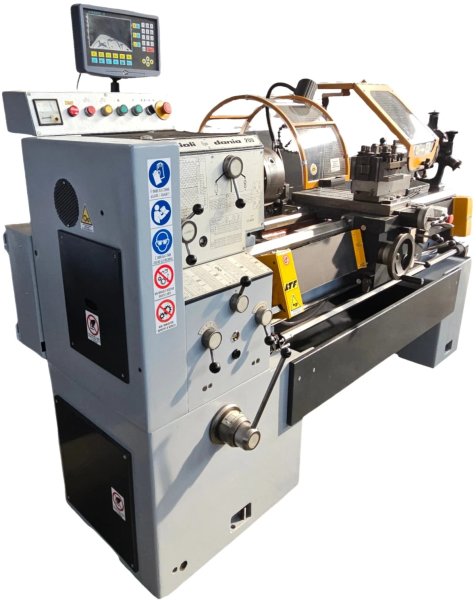

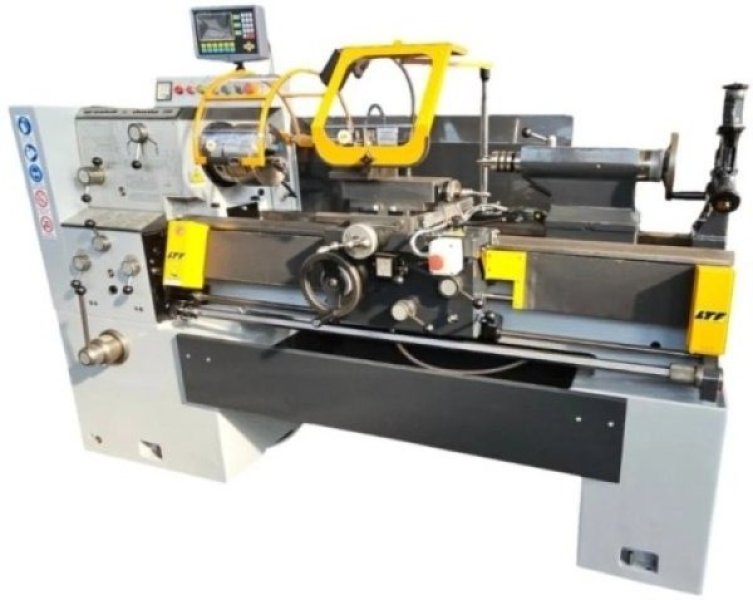

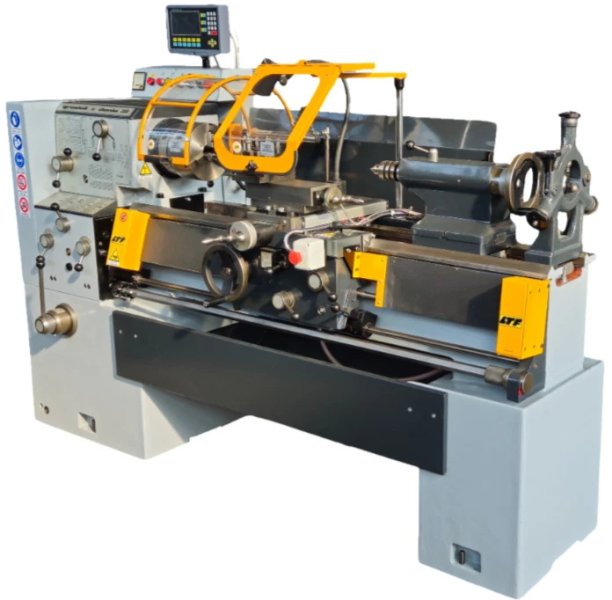

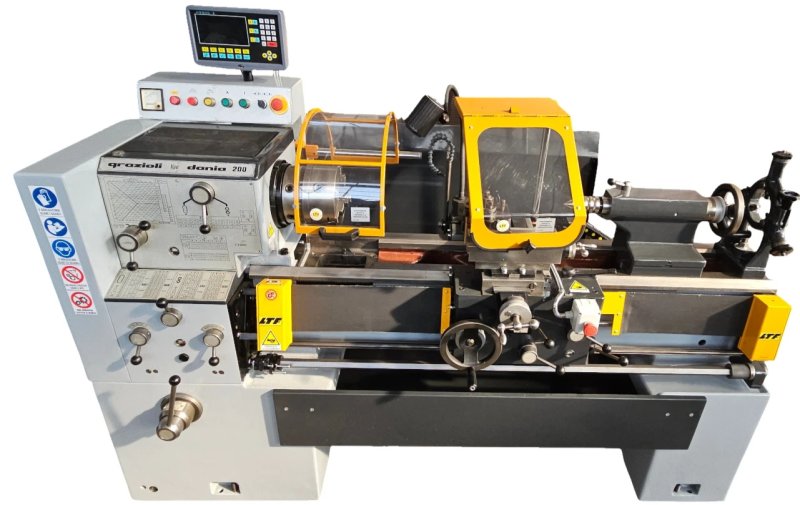

PROFESSIONAL PARALLEL LATHE
GRAZIOLI DANIA 200 X 1000
VIEWED ON THREE AXES
REFURBISHED AND APPROVED
High-quality Italian lathe, completely mechanically, electrically, and aesthetically reconditioned. ...
PROFESSIONAL PARALLEL LATHE
GRAZIOLI DANIA 200 X 1000
VIEWED ON THREE AXES
REFURBISHED AND APPROVED
High-quality Italian lathe, completely mechanically, electrically, and aesthetically reconditioned.
Fully compliant with current safety regulations
New three-axis readout
Equipment
NEW self-centering chuck, diameter 200 mm, 3+3 jaws + 3 turning jaws
Compliant with regulations, including fixed and movable interlocking guards
LED light
Coolant system
Rear metal splash guard
Moving rest
Service wrenches

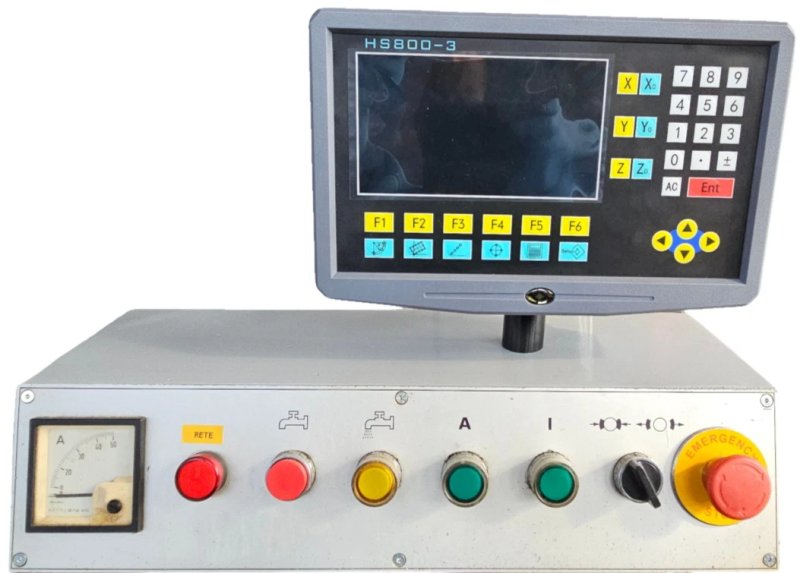

NEW three-axis digital readout

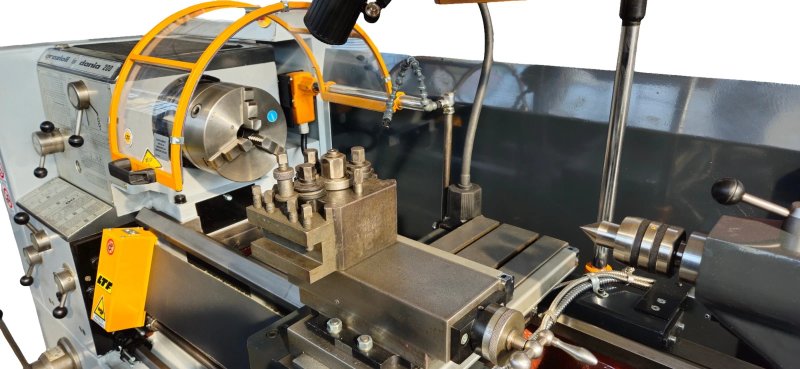

Quick turret with three tool holders
NEW rotating tailstock
Technical specifications
Height of centers above bed: 200 mm
Distance between centers: 1000 mm
Bed width: 300 mm
Maximum turning diameter above bed: 400 mm
Maximum turning diameter above carriage: 240 mm
Thread width: 240 mm
Maximum allowable diameter above the thread: 580 mm mm
Spindle nose Cam Lock 6"
Bar passage 50 mm
Tailstock taper CM4
Tailstock stroke 150 mm
Tailstock quill diameter 60 mm
Cross slide stroke 200 mm
Tool slide stroke 125 mm
Spindle speed (24): 20 - 2000 rpm
Spindle motor power 4 kW
Electric coolant pump 0.2 kW
Overall dimensions 230 x 100 x H 170 cm
Net weight 1550 kg
Working
Revised
CE compliant
Retrofitted
