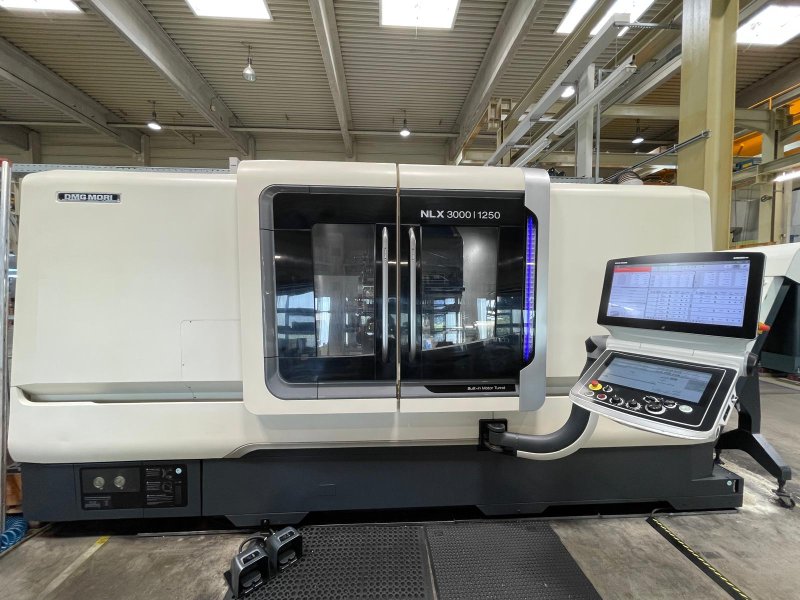

DMG MORI NLX 3000 1250 Y 2016
- Condition: used
- published: 24/06/2026
- 26IND49303
Technical data
- Condition: used
- Year: 2016
Description

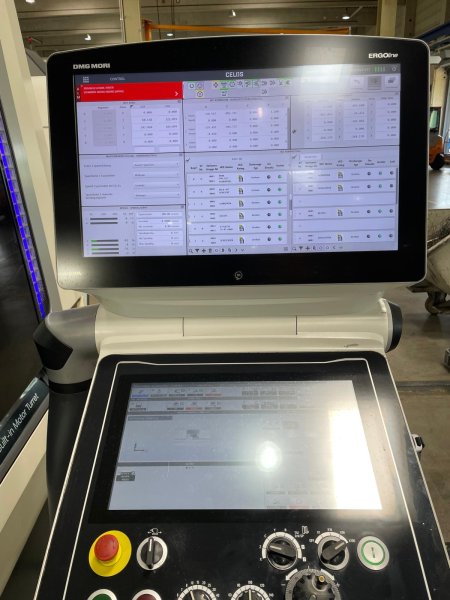

Numerical control: Mitsubishi M730UM
Capacity
Asse X corsa mm: 280
Asse Y corsa mm: ±60
Asse Z corsa mm: 1370
Screw length mm: 1260
Voltage diameter mm: ø 420
Voltage diameter … mm: ø 97 ...
Numerical control: Mitsubishi M730UM
Capacity
Asse X corsa mm: 280
Asse Y corsa mm: ±60
Asse Z corsa mm: 1370
Screw length mm: 1260
Voltage diameter mm: ø 420
Voltage diameter … mm: ø 978
Voltage diameter of the slot (asse) mm: 808
Bar passage mm: 90

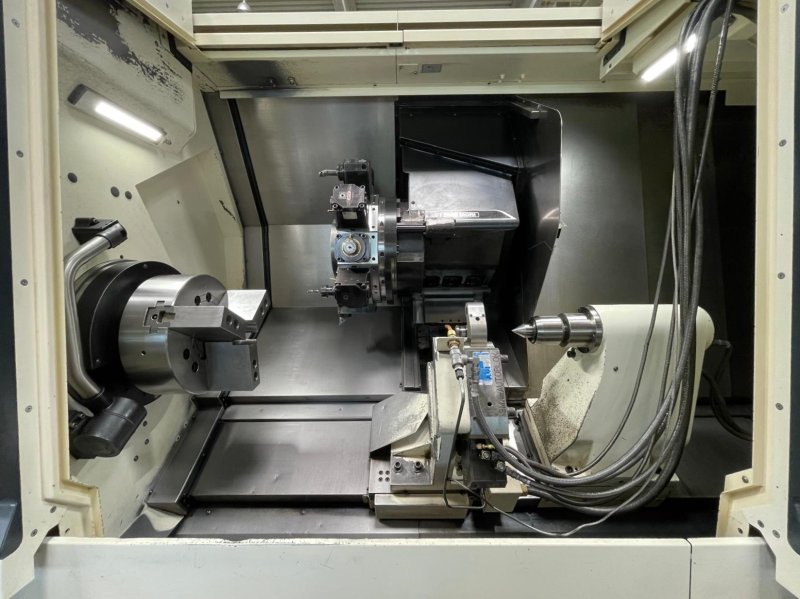

Torretta superiore
Number of utensil positions: 12

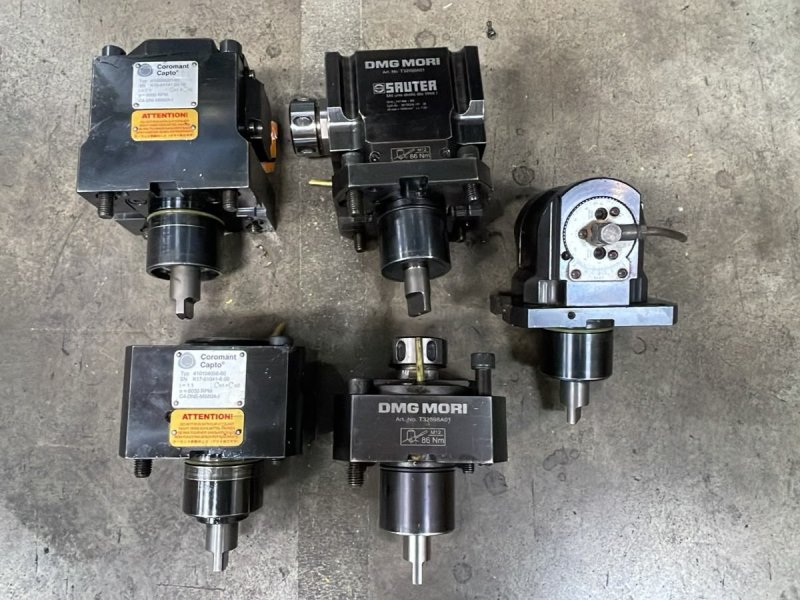

Motorized utensil, number of turns rpm: 10000

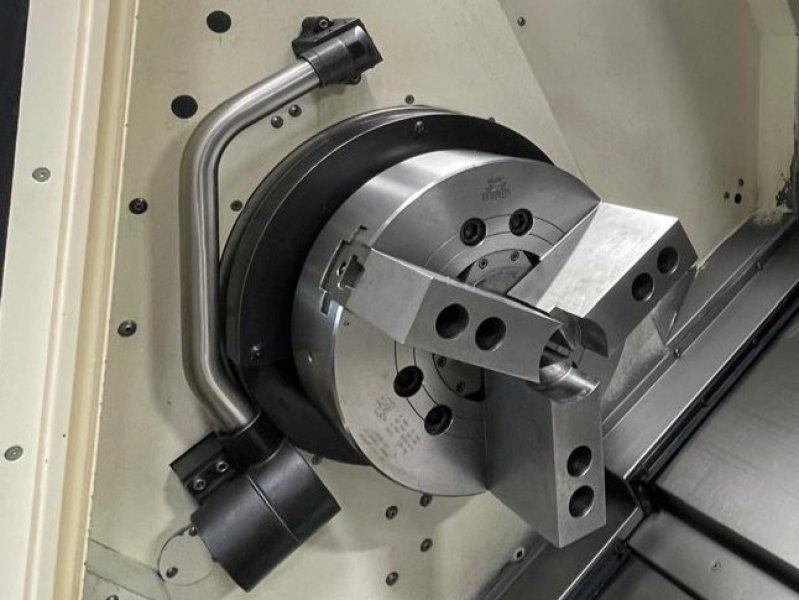

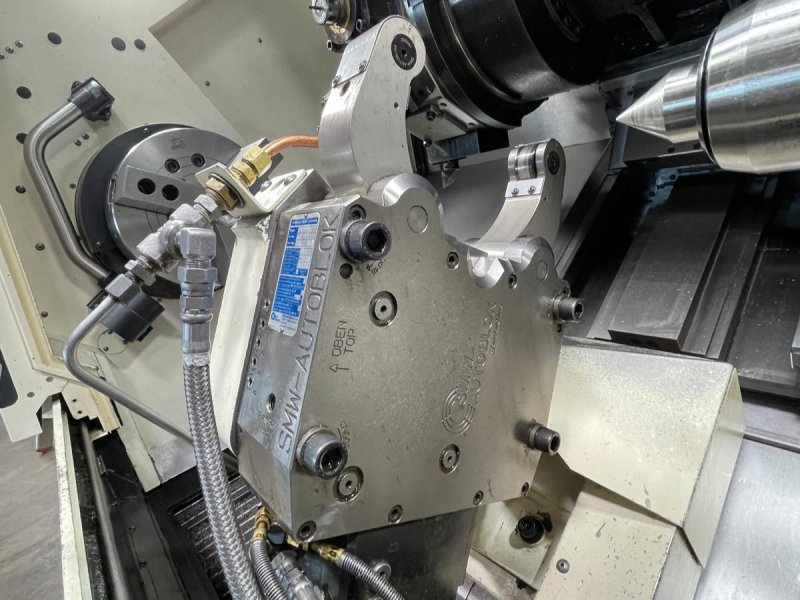

Main chuck
Chuck rotation speed rpm: 3000
Chuck power kW: 22/18.5
Bar passage mm: ø 91
Chuck attachment type: 15"
Costruttore: KITAGAWA
Naso mandrino: IS A2-8

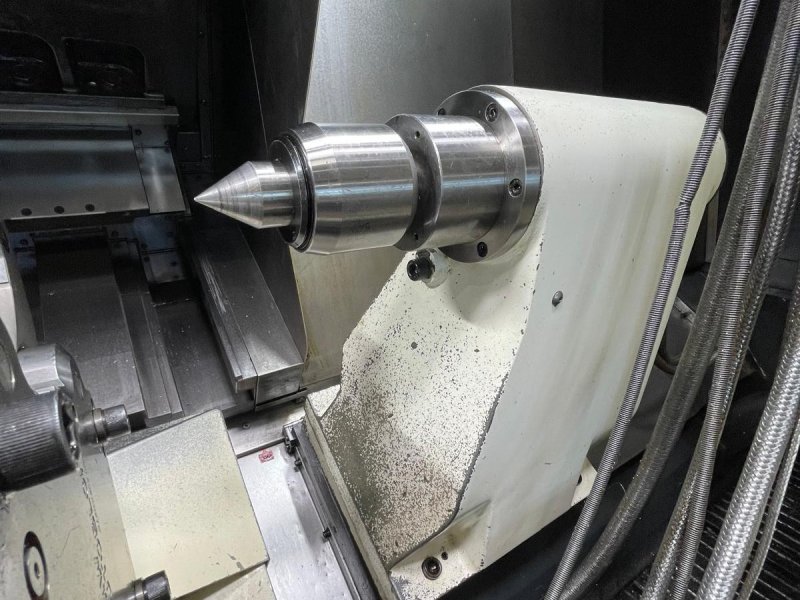

Counterpoint
Corsa della contropunta mm: 1284
Attack: MT-5
Lubrocoolant system
High pressure bar: 10
Equipment
Convogliatore trucioli
Flush the air through the spindle with activation of the function M
Presetting, utensil control arm
Filter for nebbie oleose
constant ripper
LAMPADA AREA DI LABOR
Pedal switch (doppio) for main spindle and counter spindle
Skimmer per oil
Custom Macro common variables (200)
Main dimensions of the machine / weight
Length mm: 5300
Length mm: 2500
Height mm: 2400
Weight kg: 8900
