TITAN sc 17 cnc 2003
- Condition: used
- published: 24/06/2026
- 26IND49304
Technical data
- Condition: used
- Year: 2003
- Max working height : 0/1000 mm
- Max working diameter : 1001/2000 mm
Description

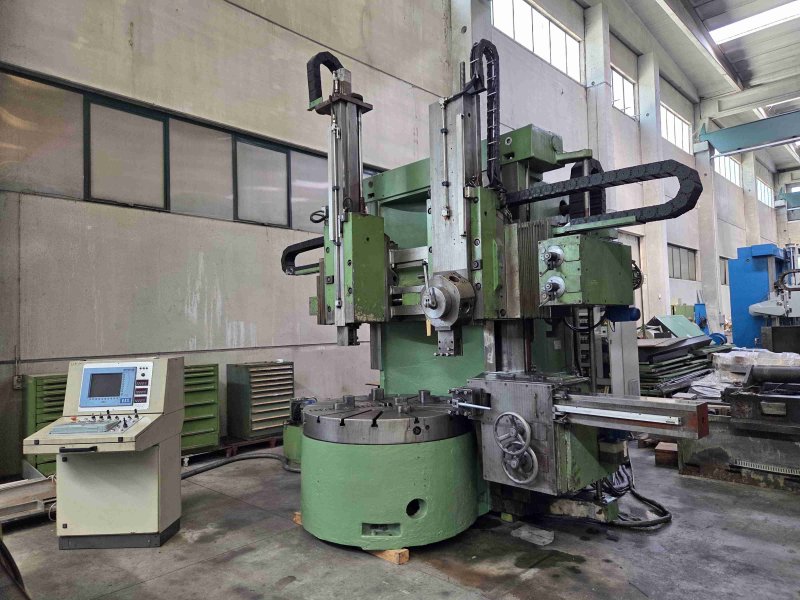

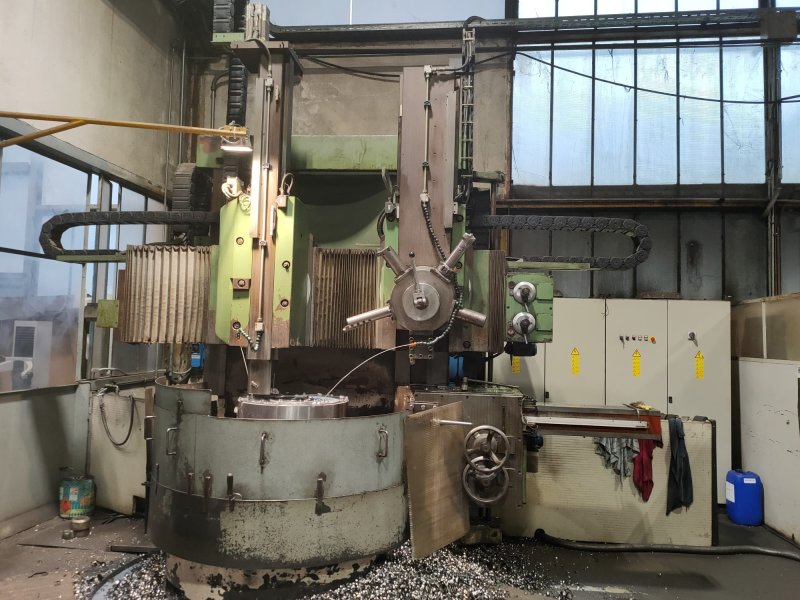

TITAN SC 17 CNC VERTICAL LATHE

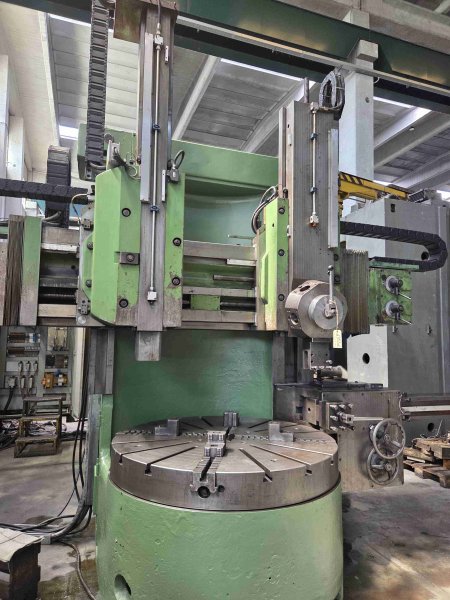

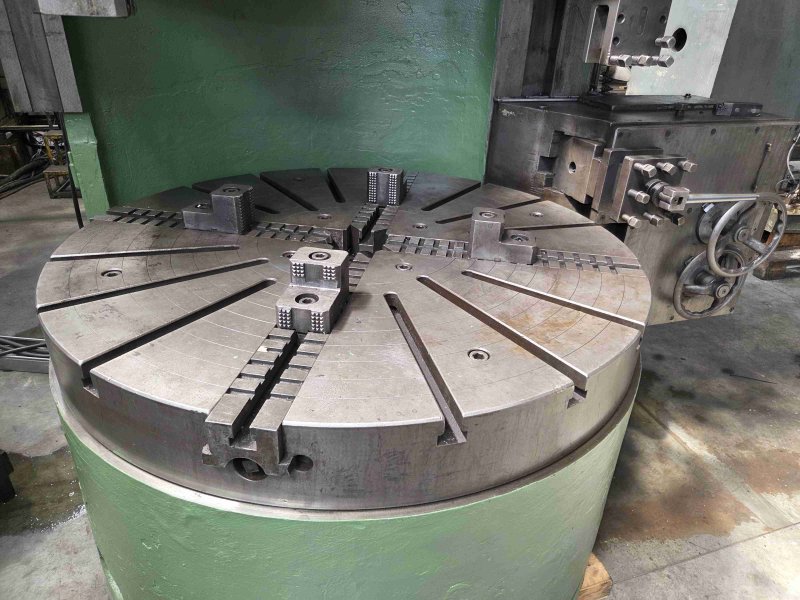

Table diameter 1,450 mm
Max. turning diameter 1,600 mm
Max. turning height 1,000 mm
Table load capacity 8,000 kg

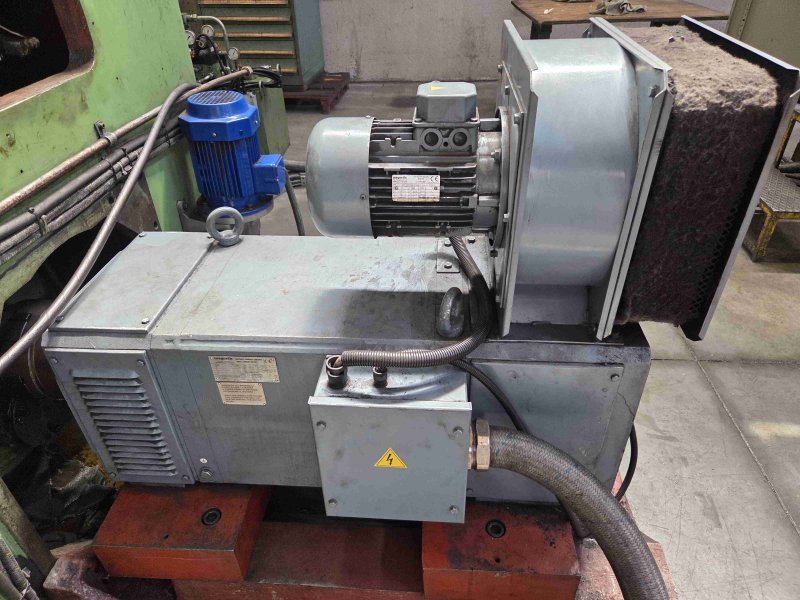

Table motor power 55 kW
Table speed 2.2 ÷ 200 rpm
1 CNC ...
TITAN SC 17 CNC VERTICAL LATHE
Table diameter 1,450 mm
Max. turning diameter 1,600 mm
Max. turning height 1,000 mm
Table load capacity 8,000 kg
Table motor power 55 kW
Table speed 2.2 ÷ 200 rpm

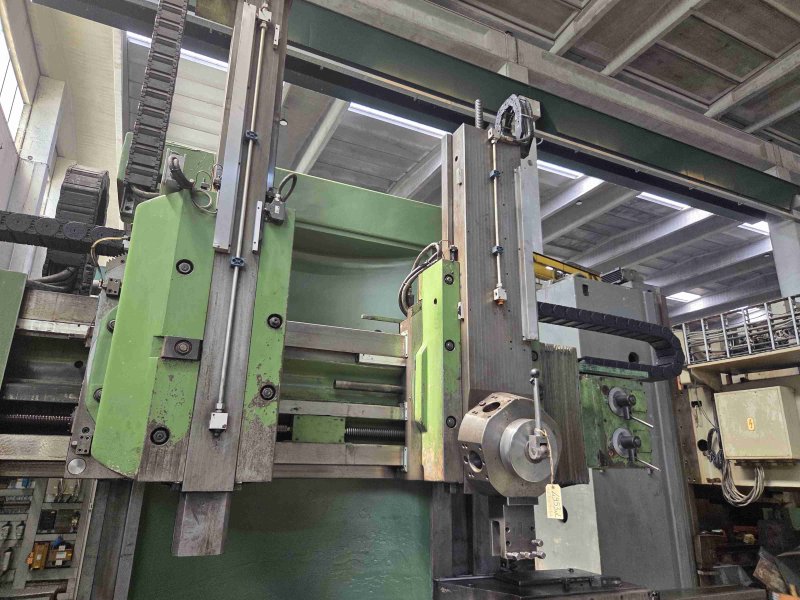

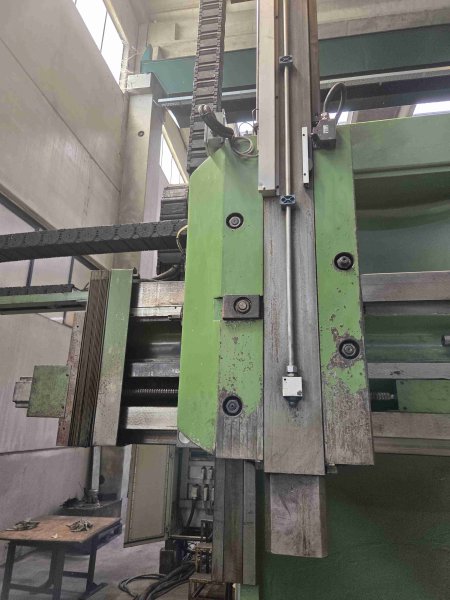

1 CNC vertical slide with ram:
- vertical travel 1,100 mm

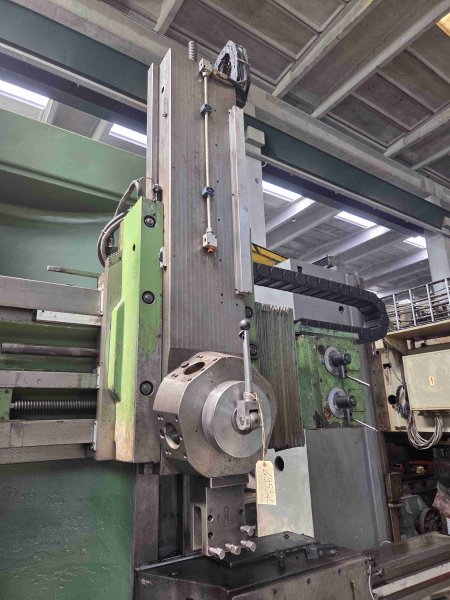

1 vertical slide with manual pentagonal turret:
- vertical travel 750 mm
- max. tilt 35°
- displayed
1 lateral slide displayed
Crossbeam vertical travel 1,000 mm

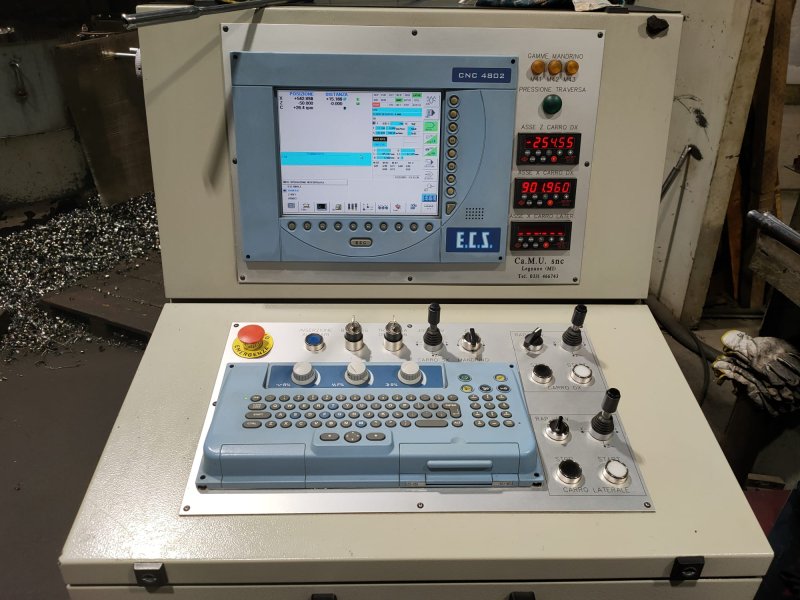

CNC ECS 4802
Total weight 21,400 kg
Year of manufacture 2003
