DIEDESHEIM V 80 21 GE CNC 1983
- Condition: used
- published: 24/06/2026
- 26IND49306
Technical data
- Condition: used
- Year: 1983
- Max working diameter : 1001/2000 mm
- Max working height : 0/1000 mm
Description

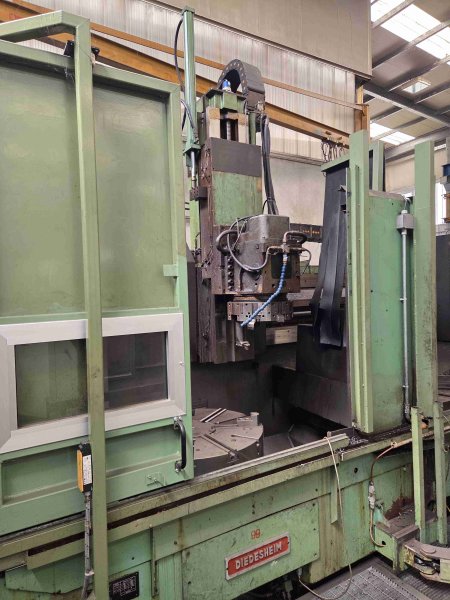

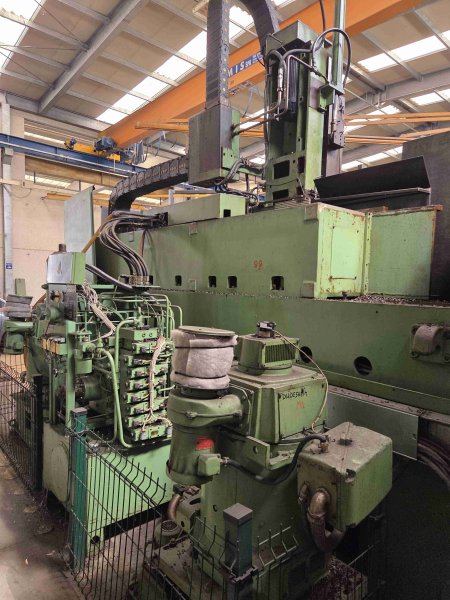

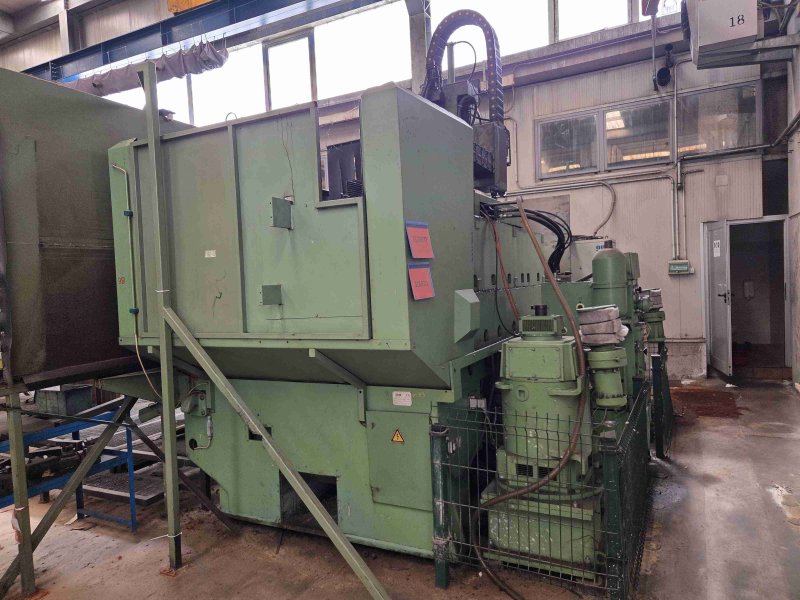

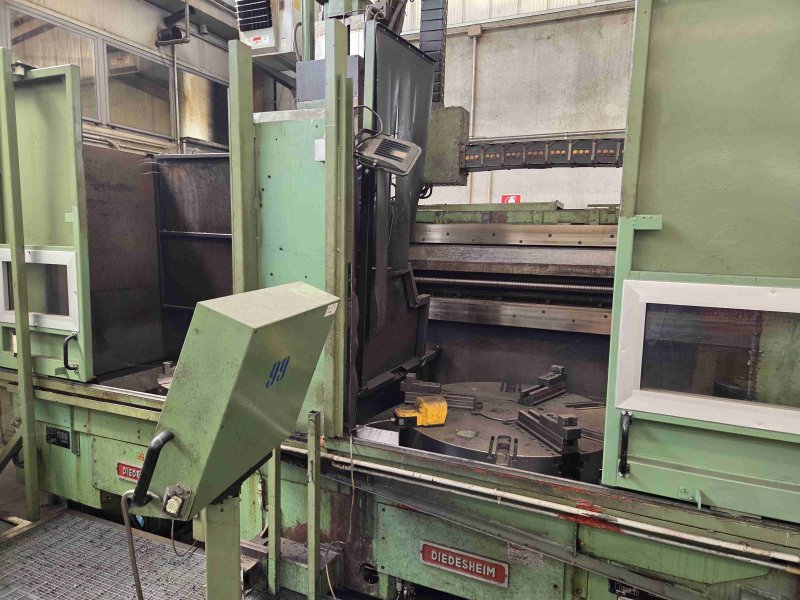

DIEDESHEIM V 80 21 GE CNC VERTICAL LATHE

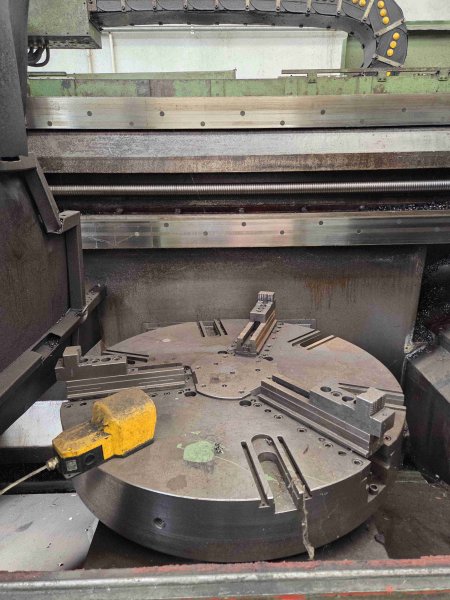

Self-centering diameter 1,150 mm.
Maximum working diameter 1,200 mm.
Self-centering diameter 900 mm.
Maximum working diameter 1,000 mm.
Maximum turning height ...
DIEDESHEIM V 80 21 GE CNC VERTICAL LATHE
Self-centering diameter 1,150 mm.
Maximum working diameter 1,200 mm.
Self-centering diameter 900 mm.
Maximum working diameter 1,000 mm.
Maximum turning height 600 mm.
Table load capacity 1,000 kg.

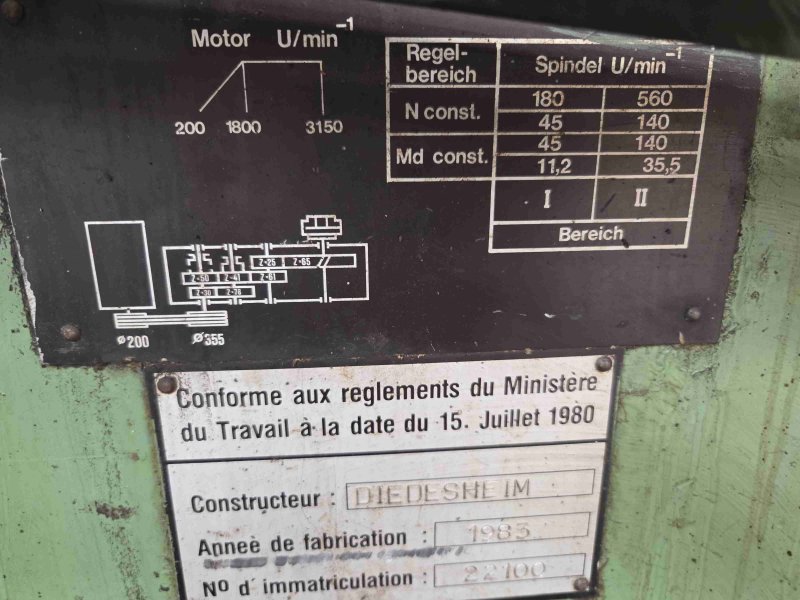

Table rotation speed 11.2 ÷ 560 rpm.
Table motor power 2 x 60 kW.

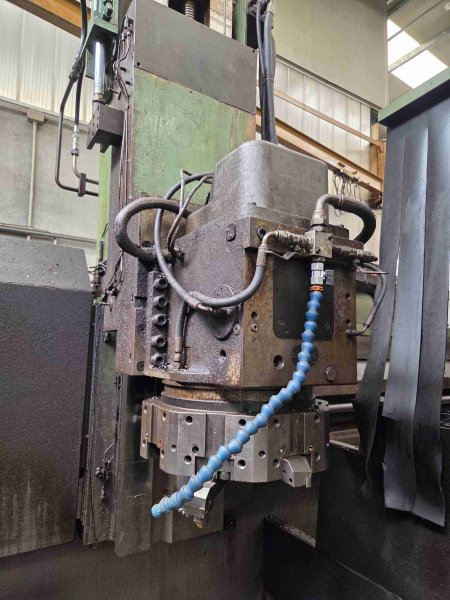

One vertical slide with automatic 7-position square turret:
- Vertical travel (Z) 816 mm.
- Transverse travel (X) 2,618 mm.
Working feeds (Z; X) 1 ÷ 8,000 mm/min.

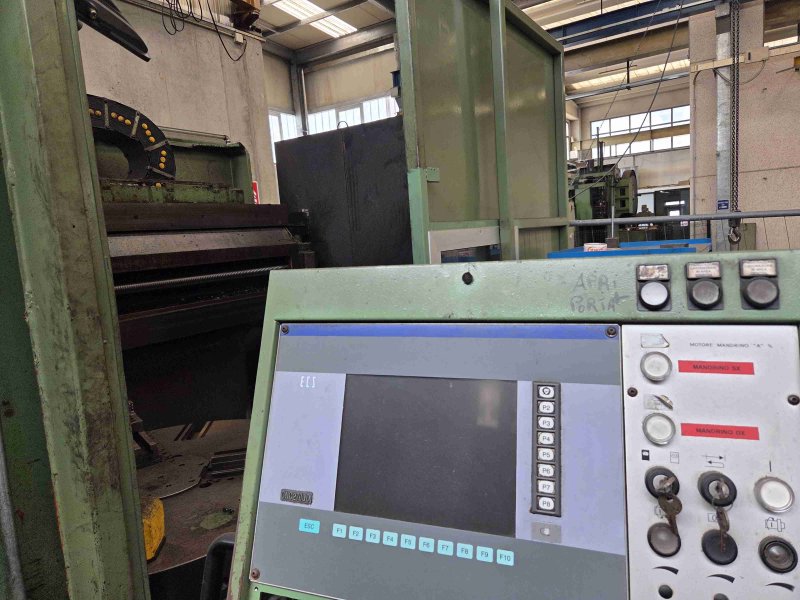

CNC ECS 2702 D
Total weight 32 tons

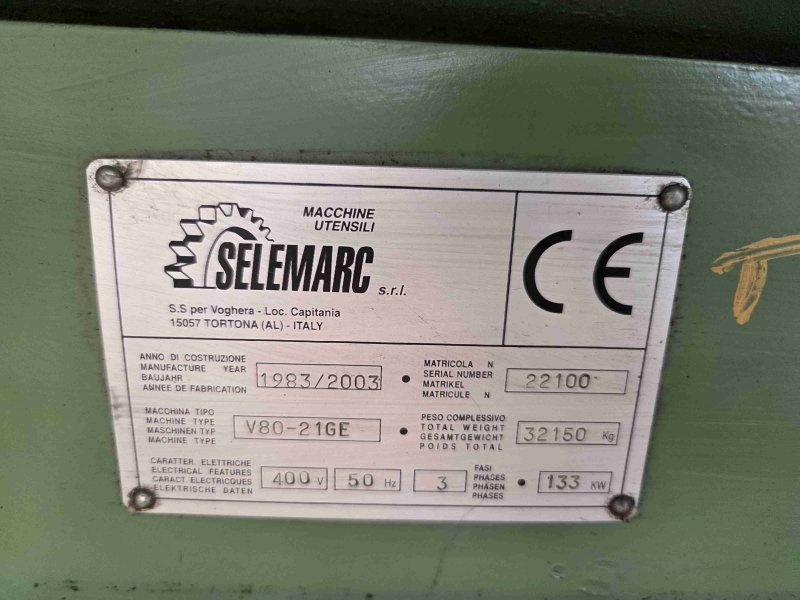

Year of construction/overhaul 1983/2003
