OERLIKON R 2
- Condition: used
- published: 24/06/2026
- 26IND49307
Technical data
- Condition: used
- Year: undefined
Description

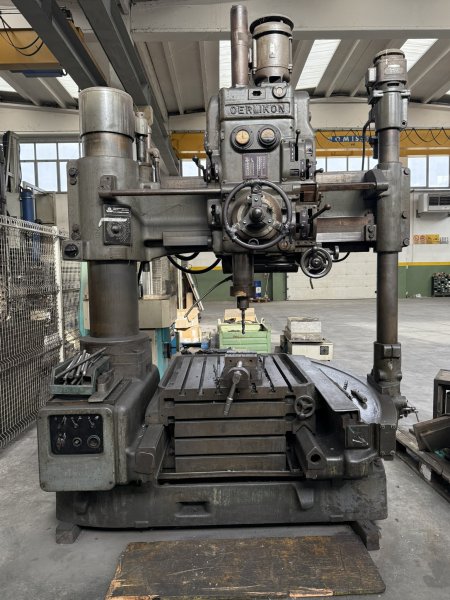

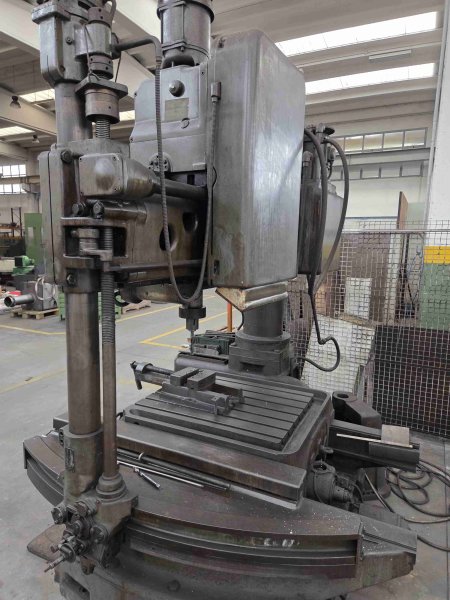

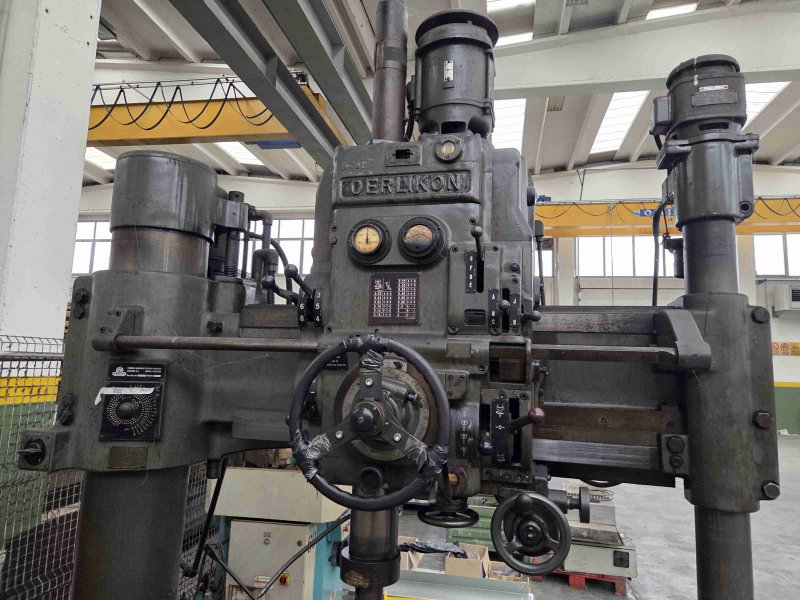

OERLIKON R 2 GANTRY DRILLING MACHINE
Table 1,000 x 900 mm.
Clearance between sides 1,490 mm.
Vertical clearance between spindle and table 700 mm.
Table load capacity 1,500 kg.
Table travel (X) 1,080 m ...
OERLIKON R 2 GANTRY DRILLING MACHINE
Table 1,000 x 900 mm.
Clearance between sides 1,490 mm.
Vertical clearance between spindle and table 700 mm.
Table load capacity 1,500 kg.
Table travel (X) 1,080 mm.
Head traverse travel (Y) 650 mm.
Rack vertical travel (Z) 300 mm.
Traverse travel 580 mm.
Spindle diameter - CM 5; 75 mm
Spindle speed - No. 18; 38 - 1,590 rpm.
Spindle motor power 4.5 kW.
Total weight 5,500 kg.
Complete with:
- vice
