ESAB SUPRAREX 3100 2020
- Condition: used
- published: 26/06/2026
- 26IND49314
Technical data
- Condition: used
- Year: 2020
Description
CNC TUBE CUTTING MACHINE WITH HIGH DEFINITION PLASMA
ESAB MODEL SUPRAREX 3100
Year 2020
Manufacturer ESAB
Model SUPRAREX 3100
FEATURES
Maximum tube length: 8000 mm
Minimum tube diameter: 100 mm
Max ...
CNC TUBE CUTTING MACHINE WITH HIGH DEFINITION PLASMA
ESAB MODEL SUPRAREX 3100
Year 2020
Manufacturer ESAB
Model SUPRAREX 3100
FEATURES
Maximum tube length: 8000 mm
Minimum tube diameter: 100 mm
Maximum tube diameter: 750 mm
Minimum tube thickness: 3 mm
Maximum tube thickness: 20 mm
Bevel cutting with V- and Y-bevels

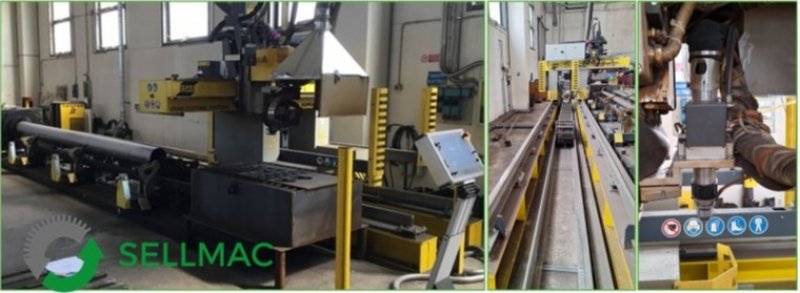

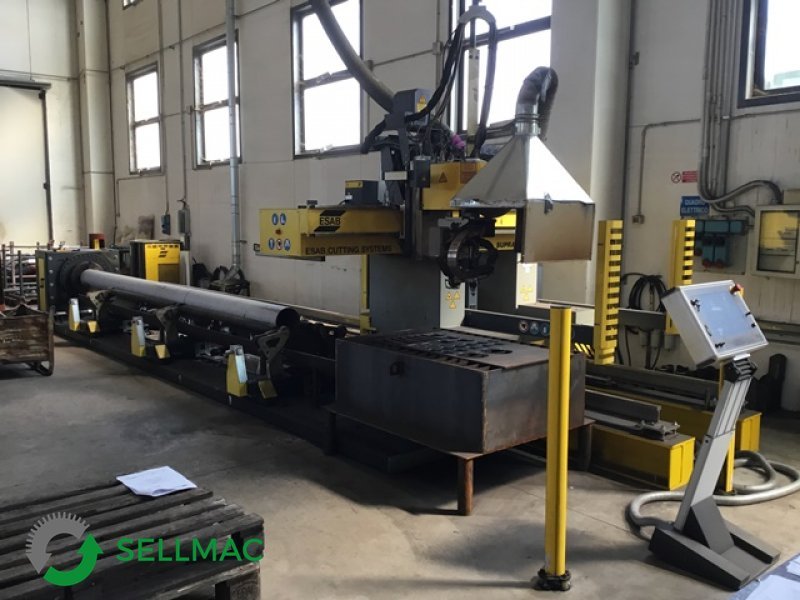

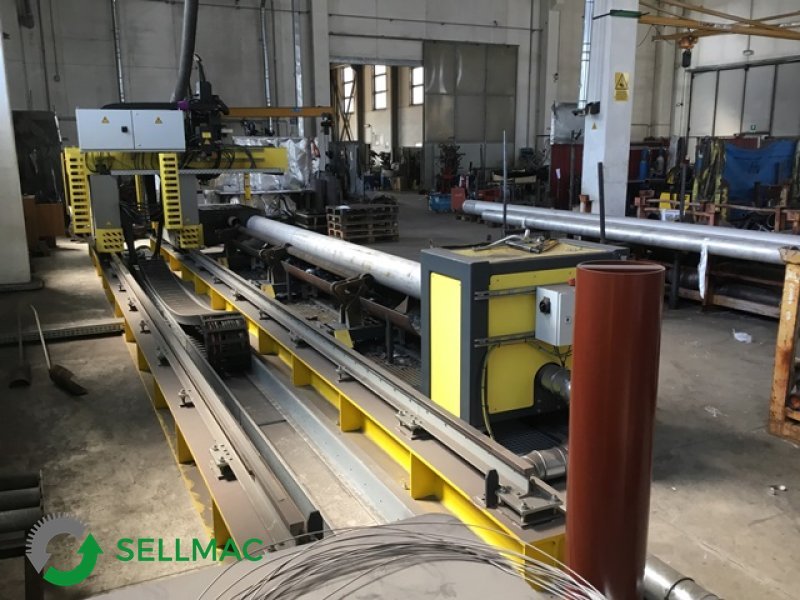

The SUPRAREX SXE3100 machine consists of:

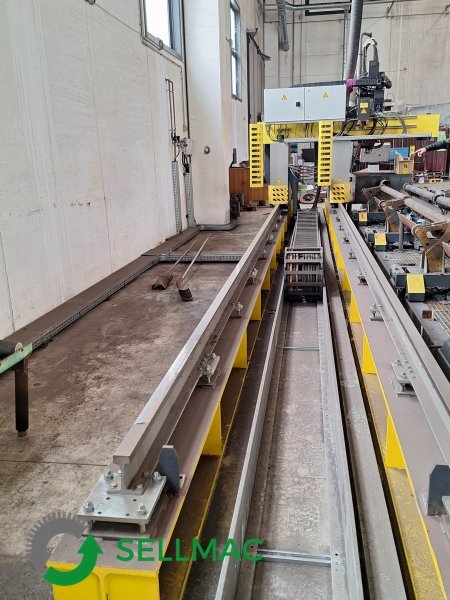

1 main machine body equipped with longitudinal and transverse guides made with precision rack and pinion systems and brushless motors. The X-axis, with a guide length of 11,000 mm, is equipped with dual motors.

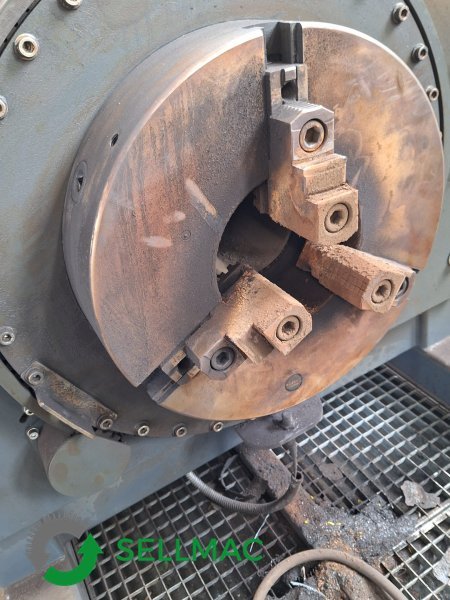

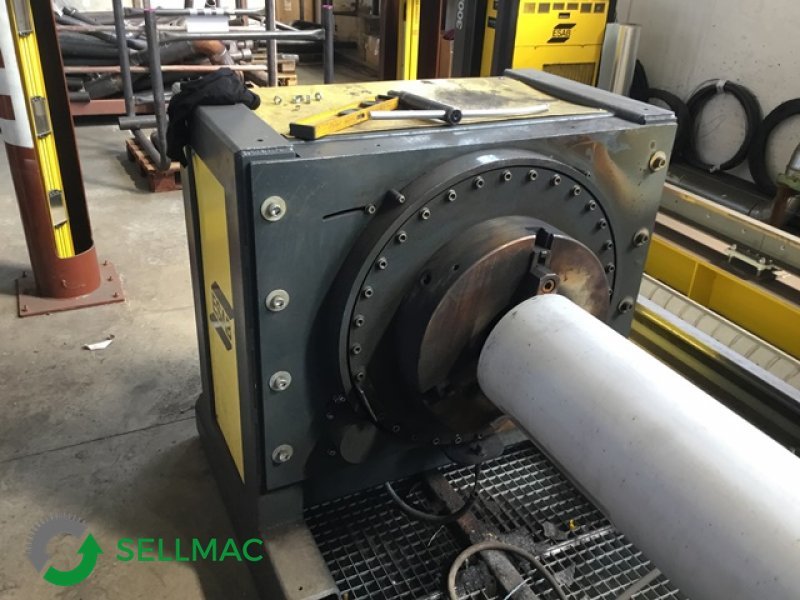

One synchronized-axis spindle for tube cutting.

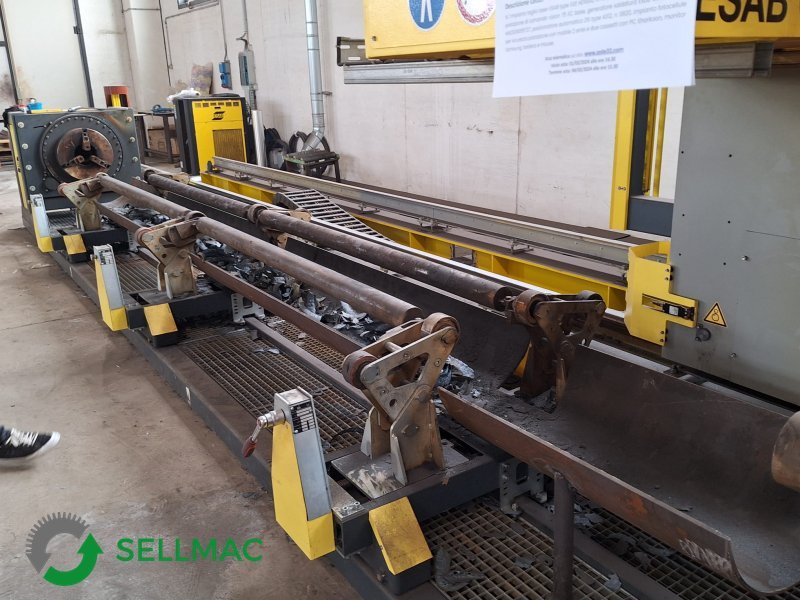

Three tube support carriages, manually positioned via a trapezoidal screw.
One carriage for an ESAB iSerie300 plasma generator with a maximum power of 300A.

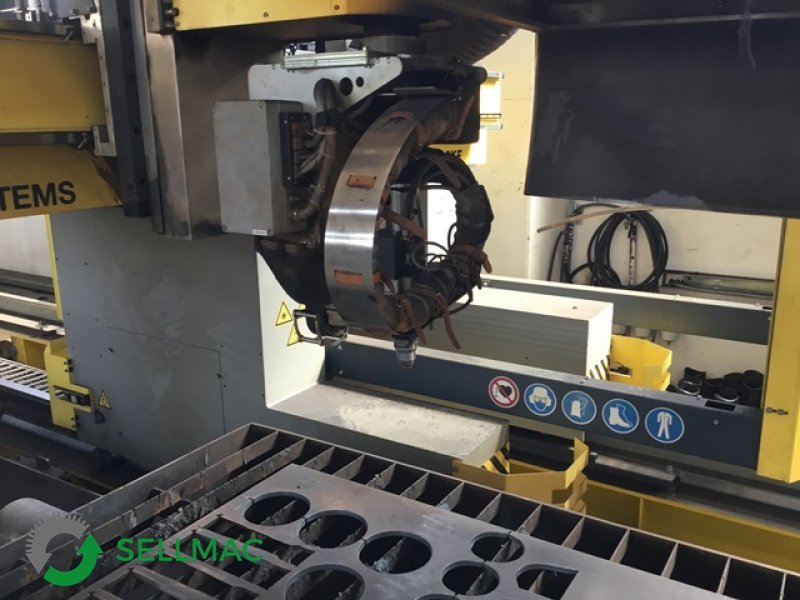

One 1 VBA WRIST bevel cutting unit with the following features:
• Rotation +- 540°
• Bevel angle adjustment +- 60°
• Bevel cutting angle +- 45°
• Maximum tilt speed 38°/sec
• Z-axis positioning speed 4000 mm/sec
• Tangential control during cutting
• V- or Y-bevel option
• Protection system in the event of a plasma torch collision
• Torch height control under arc voltage
• Torch height control with feeler foot for bevel cuts

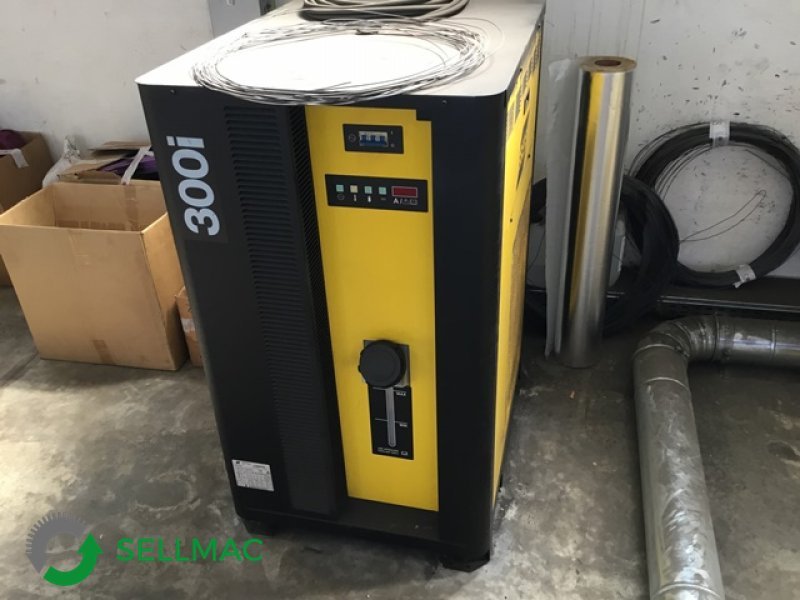

No. 1 iSeries300i plasma power source with the following features:
• Rated current output: 300A
• Current adjustment range: 5/300A
• Output voltage: 180V
• Power supply: 380V 50/60Hz
• Duty cycle at 40°C: 100%
• Plasma gas: Air/O2/Ar-H2/No
• Shielding gas: Air/No2/O2/H2O
• Weight: 244 kg
• Dimensions: 1219 x 898 x 1031 mm
1 safety system using photocells
1 1 ESAB VISION T5 CNC with 18.5" color touchscreen monitor (glove-friendly) and OpWizard application to assist the operator in using the machine for flat cutting
1 ESAB TUBE CUTTING programming software
Accessory included: Flat cutting table with slats, dimensions 1,500 x 1,000 mm
Machine supplied with manuals and CE declaration of conformity
All technical data shown is indicative and subject to change without notice; therefore, it should not be considered binding.
Working
CE compliant
