ONA techno h400
- Condition: used
- published: 30/06/2026
- 26IND49318
Technical data
- Condition: used
- Year: undefined
Description

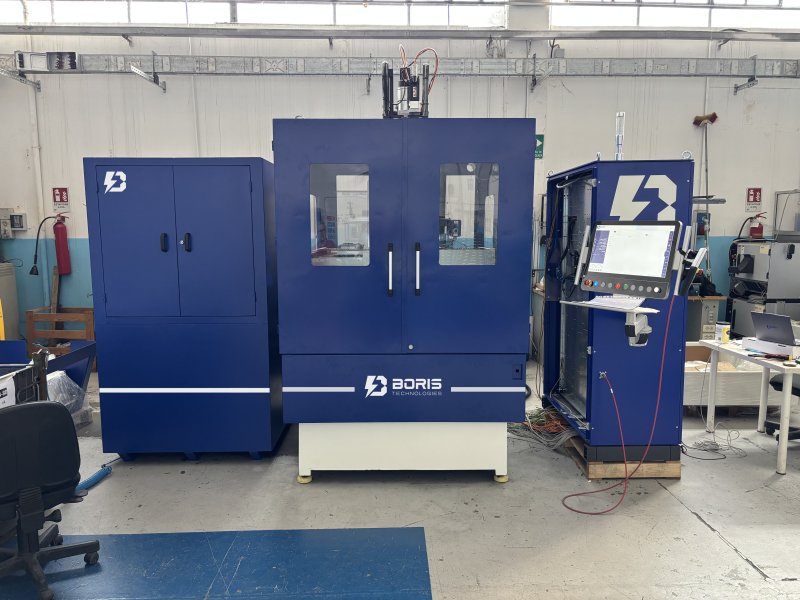

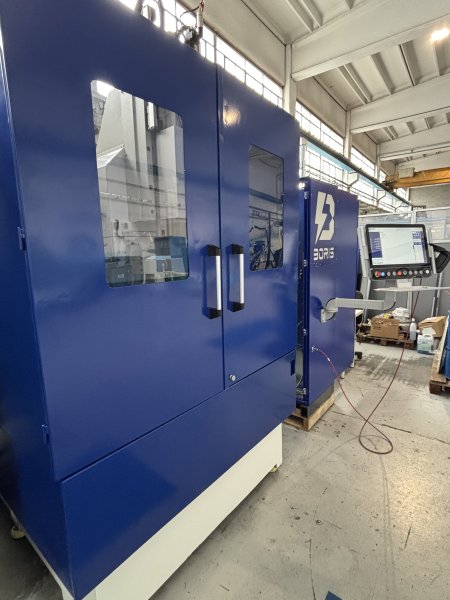

ONA H400 die-sinking EDM machine completely overhauled and updated by Boris Technologies, incorporating a new numerical control, new electronics, a new EDM generator, and a modern operator interface.
...
ONA H400 die-sinking EDM machine completely overhauled and updated by Boris Technologies, incorporating a new numerical control, new electronics, a new EDM generator, and a modern operator interface.
The retrofit was developed to enhance the machine's original mechanical structure, maintaining the typical solidity and robustness of ONA machines while bringing it up to current operating standards in terms of control, automation, usability, and erosion process management.

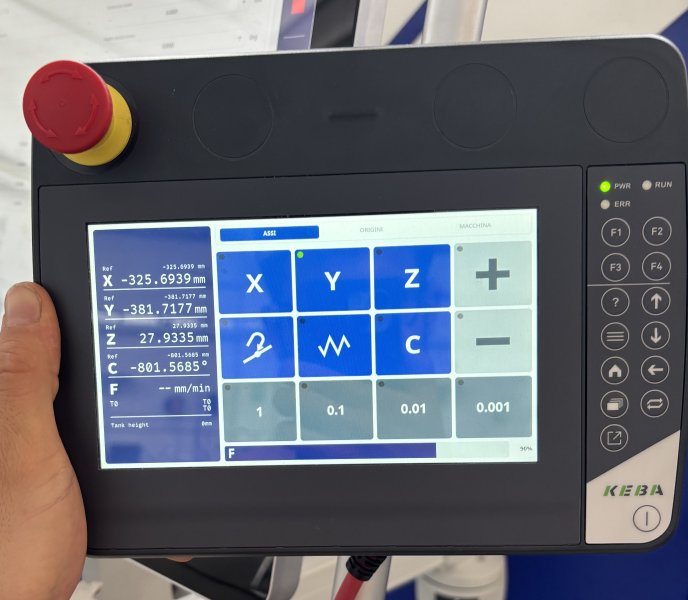

The machine is equipped with KEBA axis control, synchronous brushless motors with absolute encoders, external Fagor optical scales on the X/Y/Z axes, and an integrated C-axis for interpolation and rotation machining. The HMI is managed via a 27" Full HD touch monitor, accompanied by a 7" KEBA touch remote control, for convenient use both from the main panel and near the work area.

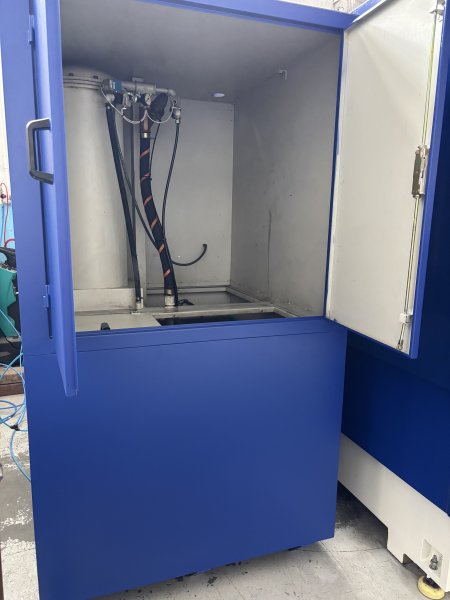

The EDM generator is a newly installed unit, designed by Boris Technologies, with a modular 60 A system expandable to 100 A. The machine also integrates Marzola EDM power electronics and spark control, a self-cleaning filter unit, and a dielectric cooling unit.
Mechanically, the machine has undergone a complete overhaul: ball screws overhauled and inspected, a ground worktable, an updated transmission with a complete replacement of belts and pulleys, a new pneumatic unit, completely redone electrical wiring, and a complete replacement of all main hydraulic components and pipes.

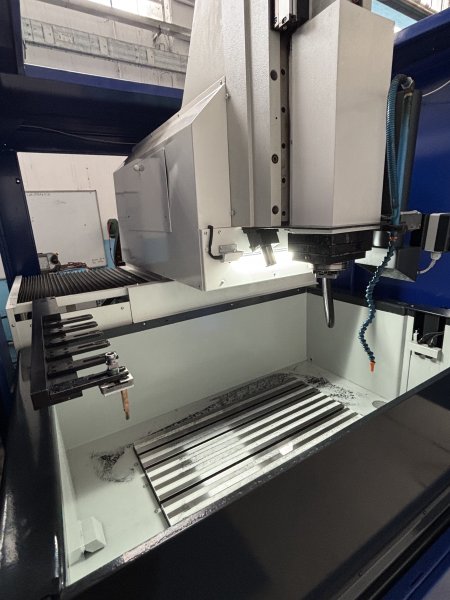

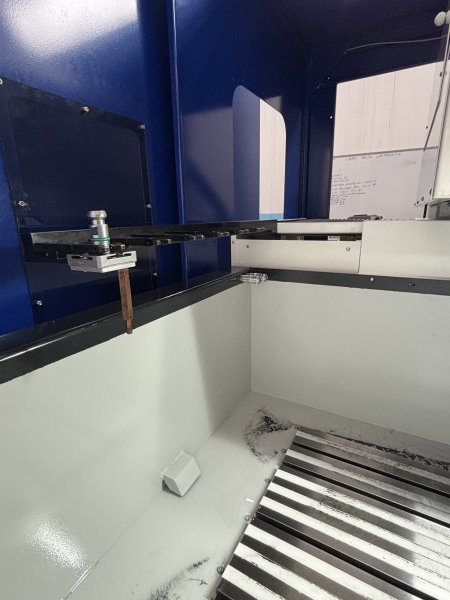

The machine is also equipped with a 6-position automatic tool magazine, an integrated C-axis, and a 1200 × 800 × 400 mm work tank, making it suitable for complex EDM machining, molds, precision parts, and applications requiring reliability, automation, and accurate process control.
Main Features
Axis Travels:
X-Axis: 840 mm
Y-Axis: 640 mm
Z-Axis: 640 mm
Dimensions
Table: 800 × 600 mm
Tank: 1200 × 800 × 400 mm
Capacity
Machine Weight: 3800 kg
Maximum Table Load: 1500 kg
Maximum C-Axis Load: 50 kg static / 10 kg dynamic
Control and Automation
KEBA GmbH CNC
27" Full HD Touch HMI
7" KEBA Touch Remote Control
6-Position Automatic Tool Magazine
Integrated C-Axis for Positioning, Rotation, and Interpolation
Generator and EDM System
New Boris Technologies Generator
60 A Power Expandable to 100 A
Marzola EDM Electronics
Self-cleaning filter unit
Integrated dielectric cooling
Machine Condition
Complete Retrofit
New Electronics
Rebuilt Wiring
New Pneumatics
Overhauled Hydraulics
Verified and Updated Mechanics
This ONA H400 represents a particularly interesting solution for those looking for a robust, up-to-date, and ready-to-use die-sinking EDM machine, with performance and interface comparable to a modern machine but at a more competitive investment than a new one.
Working
Under warranty
CE compliant
Retrofitted
