DECKEL MAHO DMU 200 P 2000
- Condition: used
- published: 30/06/2026
- 26IND49319
Technical data
- Condition: used
- Year: 2000
- X-axis travel: 1001/2000 mm
Description
Year of manufacture: 2000

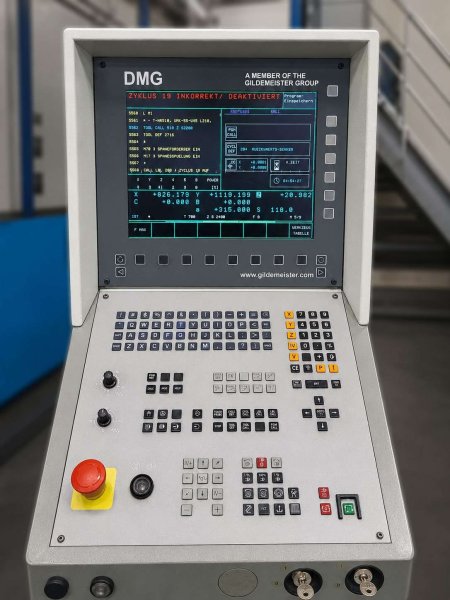

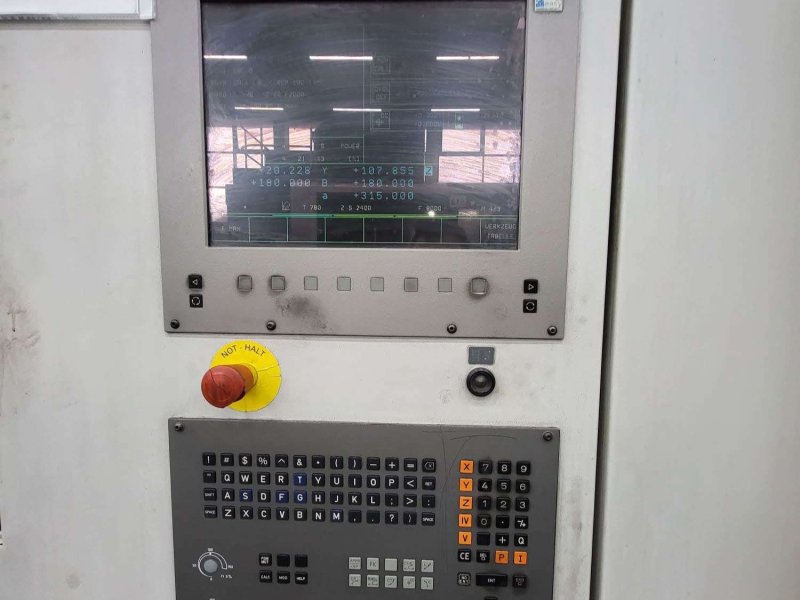

Numerical control: Heidenhain TNC 430
Axes
X-axis travel mm: 1800
Y-axis travel mm: 2000
Z-axis travel mm: 1100
C-axis angle: 360° (0.001)
B-axis angle: -7/+187°
Feed rate ...
Year of manufacture: 2000
Numerical control: Heidenhain TNC 430
Axes
X-axis travel mm: 1800
Y-axis travel mm: 2000
Z-axis travel mm: 1100
C-axis angle: 360° (0.001)
B-axis angle: -7/+187°
Feed rate m/min: 60/40/40
Rapid feed m/min: 60/40/40

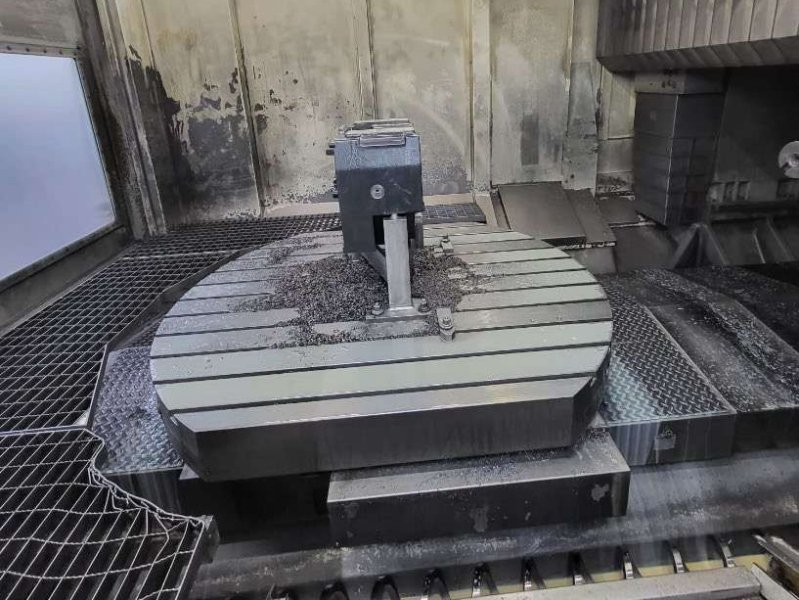

NC milling/turning table:
Table dimensions mm: Ø1700x1400
Maximum workpiece weight kg: 5000
Table rotation speed rpm: 200

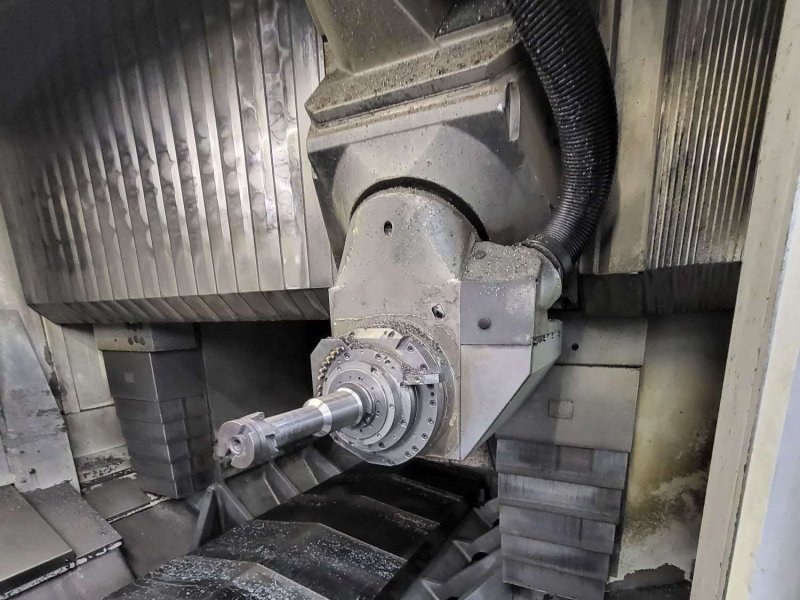

Spindle
Spindle rotation speed rpm: 8000
Spindle power kW: 30/20 (40% ED/cont)

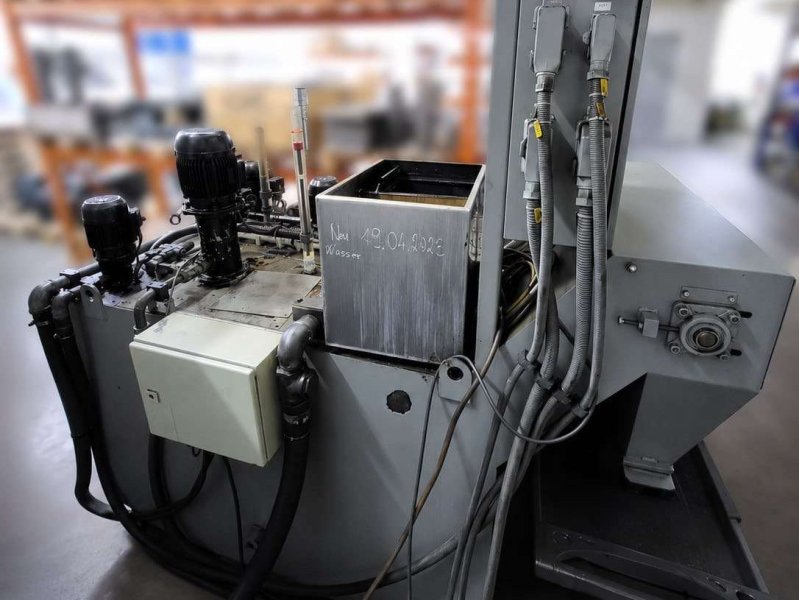

Coolant
Tank capacity: 900 liters
Tool magazine
SK 50 tool holder
Tool magazine positions: 120
Double gripper tool changer
Tool change time, chip to chip: 13.5 s
Equipment
Electronic handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Wash gun
4 operating modes
Tool integrity monitor
Oil skimmer

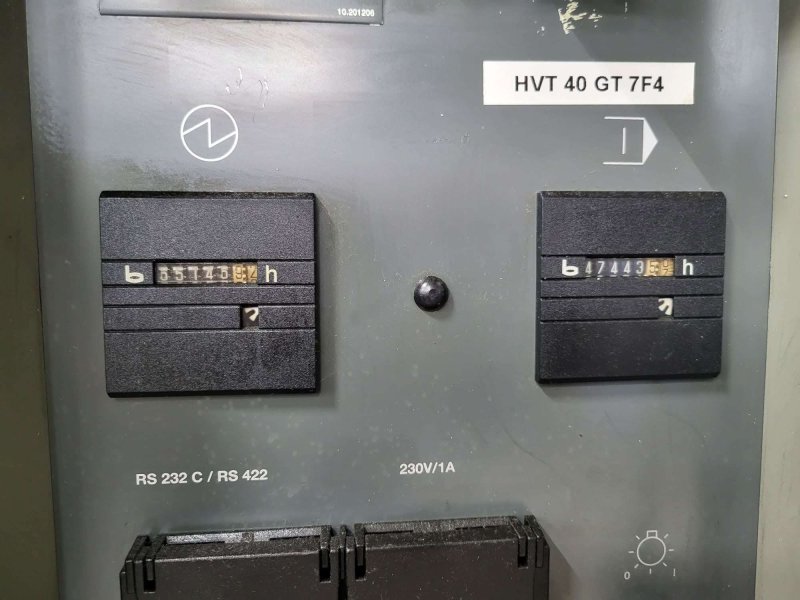

Working time
Powered: 65,200
Spindle in operation: 47,500
Main machine dimensions / weight
Length mm: 7,900
Width mm: 8800
Height mm: 4174
