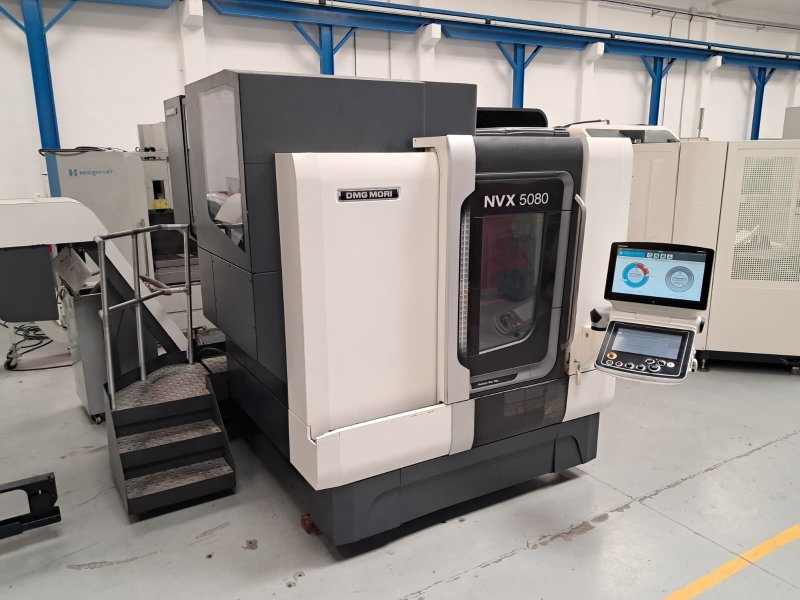

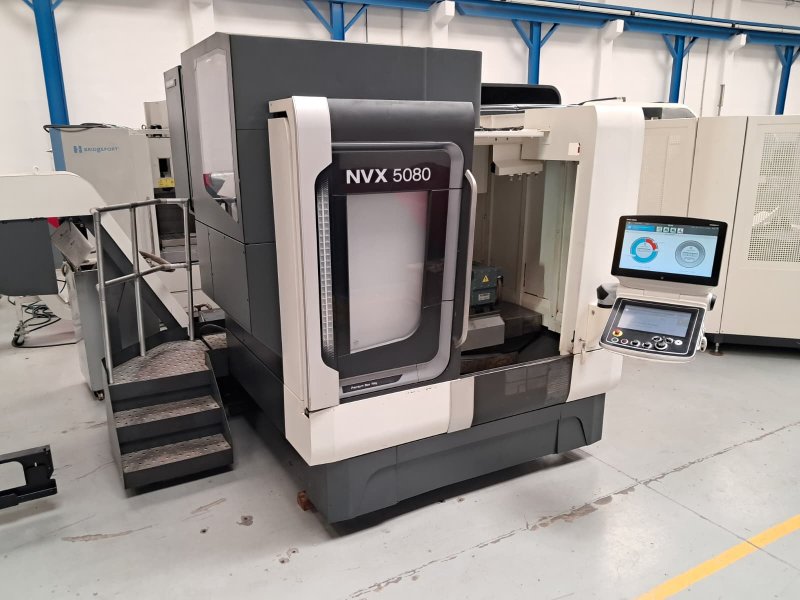

DMG MORI NVX 5080/50 2015
- Condition: used
- published: 23/07/2026
- 26IND49323
Technical data
- Condition: used
- Year: 2015
- X-axis travel: 0/1000 mm
Description
Year of manufacture: 2015

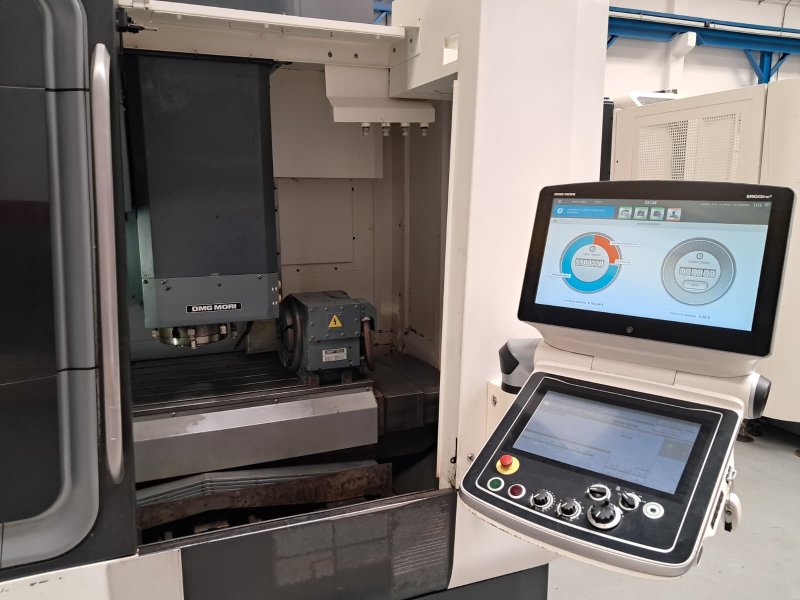

Numerical control: M-730UM
Axes
X-axis travel (mm): 800
Y-axis travel (mm): 530
Z-axis travel (mm): 510
Distance between table surface and spindle tip (mm): 150-660
Feed rate ...
Year of manufacture: 2015
Numerical control: M-730UM
Axes
X-axis travel (mm): 800
Y-axis travel (mm): 530
Z-axis travel (mm): 510
Distance between table surface and spindle tip (mm): 150-660
Feed rate (m/min): 5
Rapid feed rate (m/min): 30

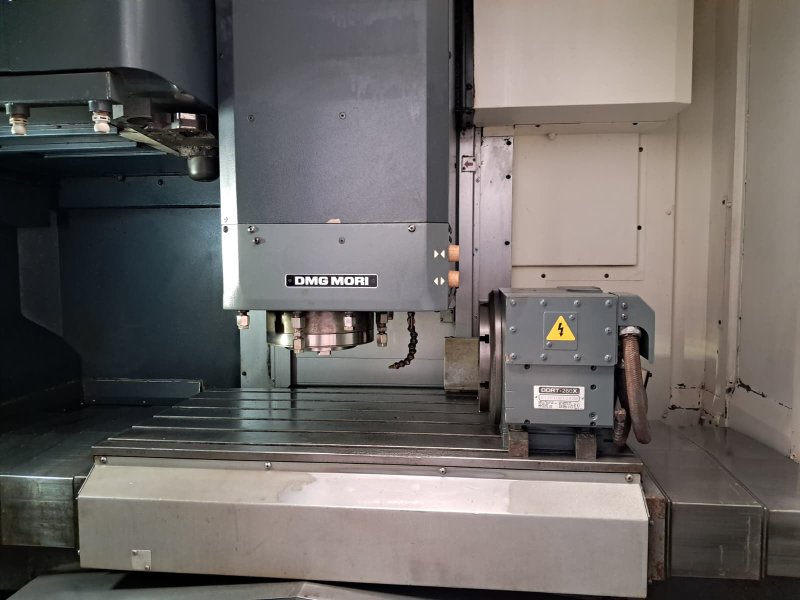

Working area
Number of pallets: 1
Table dimensions (mm): 1100 x 600
Maximum workpiece weight (kg): 1000

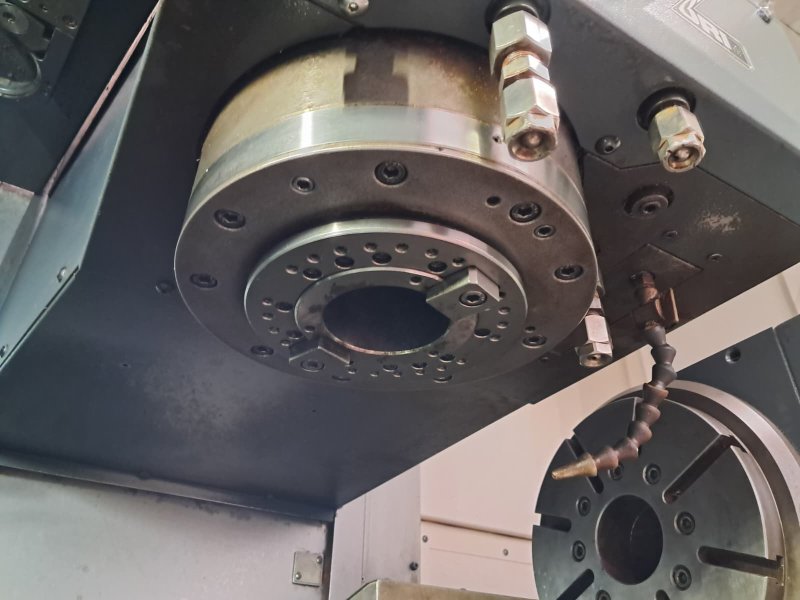

Spindle
Spindle rotation speed (rpm): 8000
Spindle power (kW): 30/22 (25% ED/cont)
Maximum torque (Nm): 304

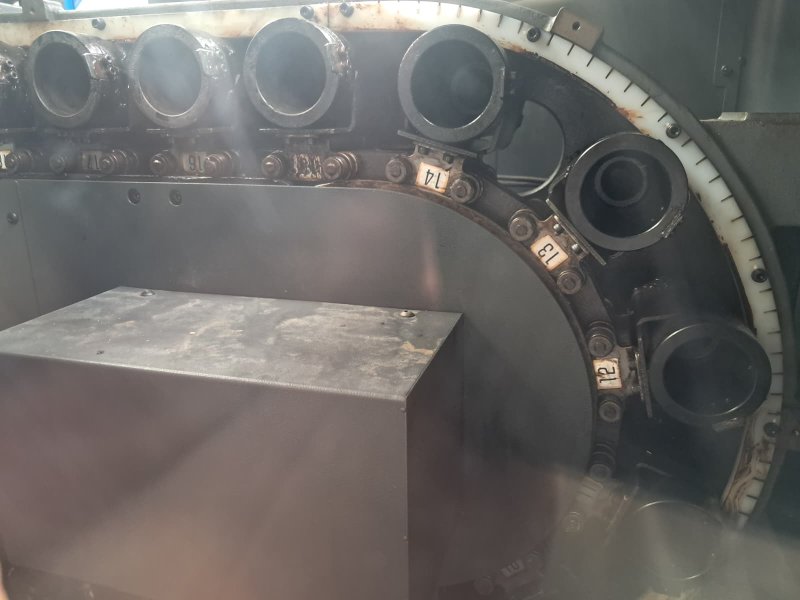

Tool Magazine
MAS-BT 50 Tool Holder
Tool Magazine Positions: 30
Adjacent Free Positions (mm): 240
Adjacent Occupied Positions (mm): 120
Maximum Tool Length (mm): 350
Maximum Tool Weight (kg): 20
Tool Change Time (s): 2.34
Equipment

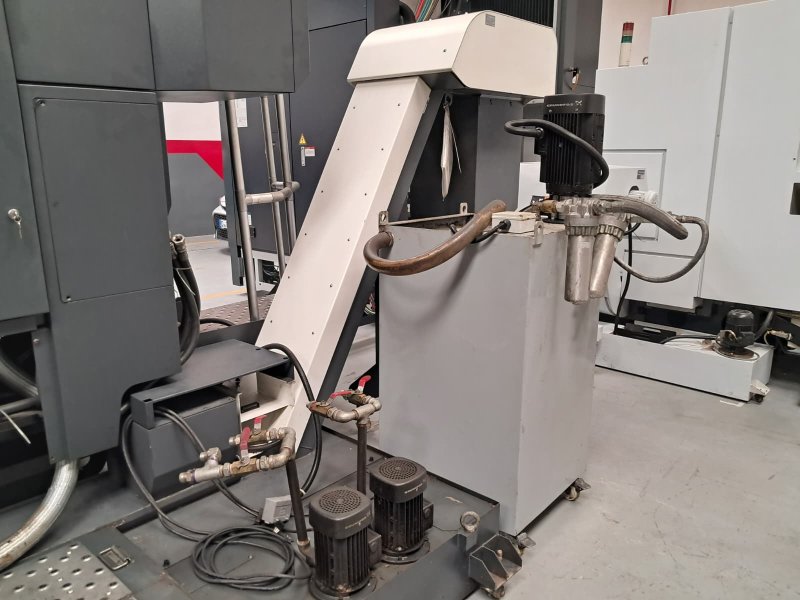

Chip Conveyor
Internal Lubricant and Coolant Supply (via the center)

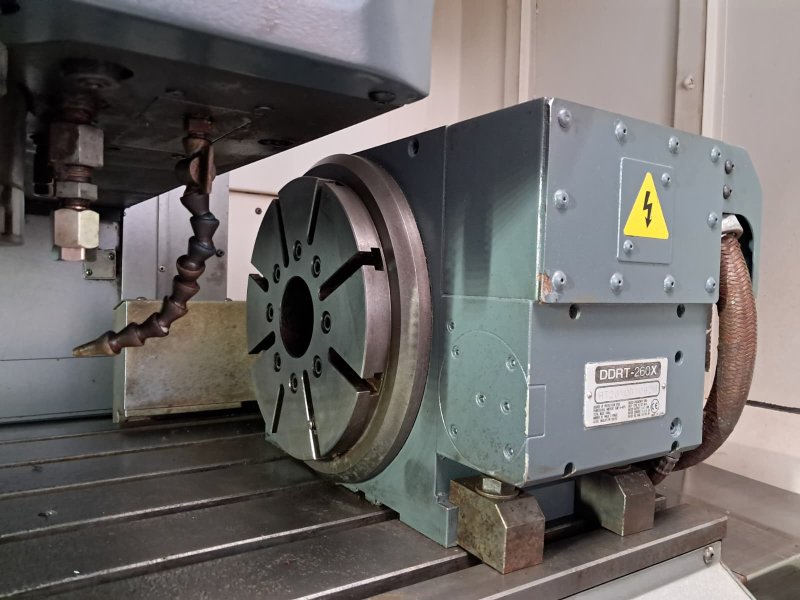

4th Axis DDRT-260X
Custom Macro Common Variables (200)
Operating Time
Feed: 35896
Running Spindle: 26915
Rated Power (kVA): 52
Main Machine Dimensions and Weight
Length (mm): 3300
Width (mm): 3000
Height (mm): 2800
Weight (kg): 6870
