TACCHI FTC 600
- Condition: used
- published: 09/07/2026
- 26IND49347
Technical data
- Condition: used
- Year: undefined
- Distance between tips : > 5000 mm
- Tip height : > 500 mm
Description

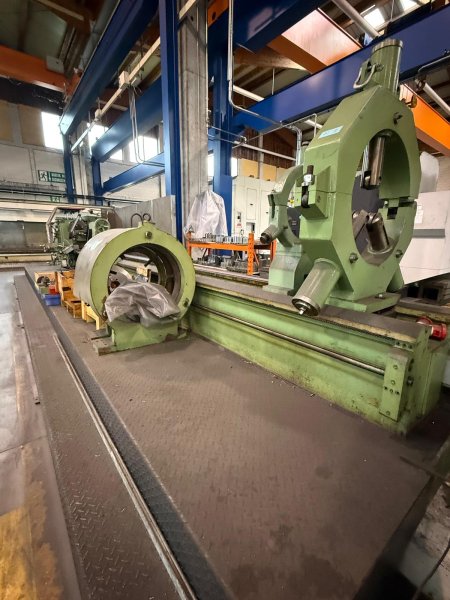

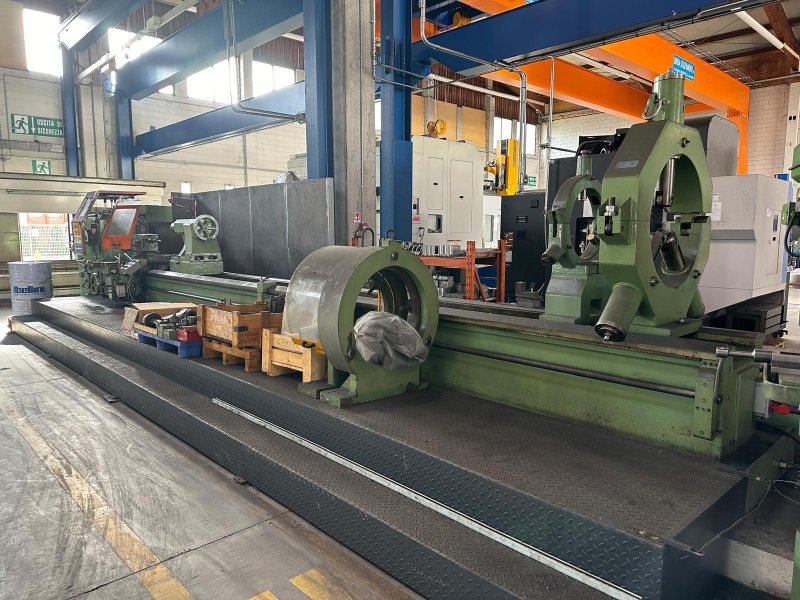

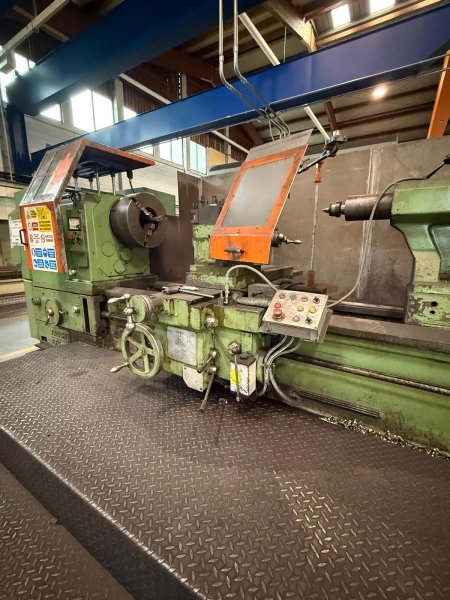

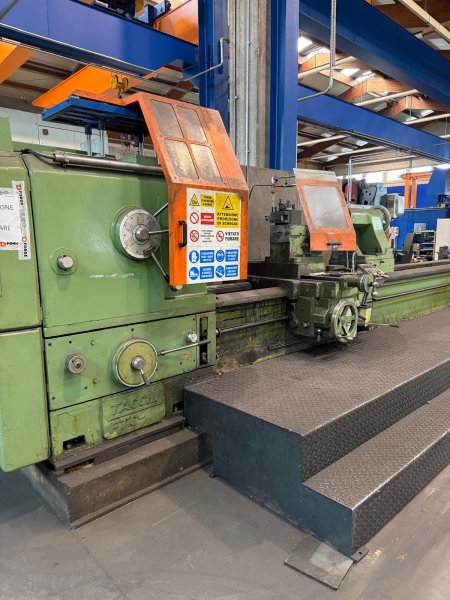

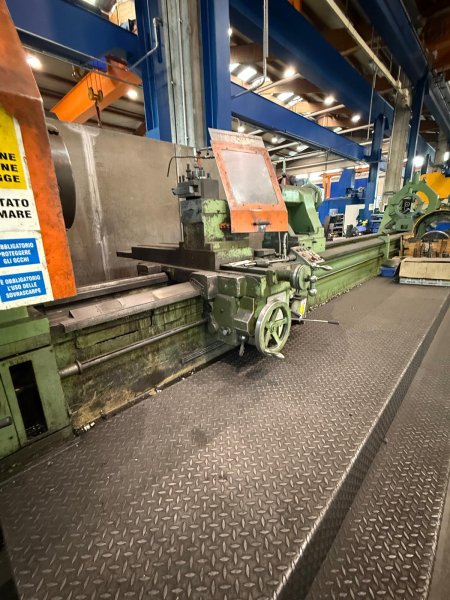

TACCHI FTC 600 x 8000 PARALLEL LATHE
Distance between centers 8,000 mm.
Height of centers 600 mm.
Max. Ø on the bed 1,200 mm.
Max. Ø on the carriage 840 mm.
Max. Ø in the throat 1,520 mm.
Throat le ...

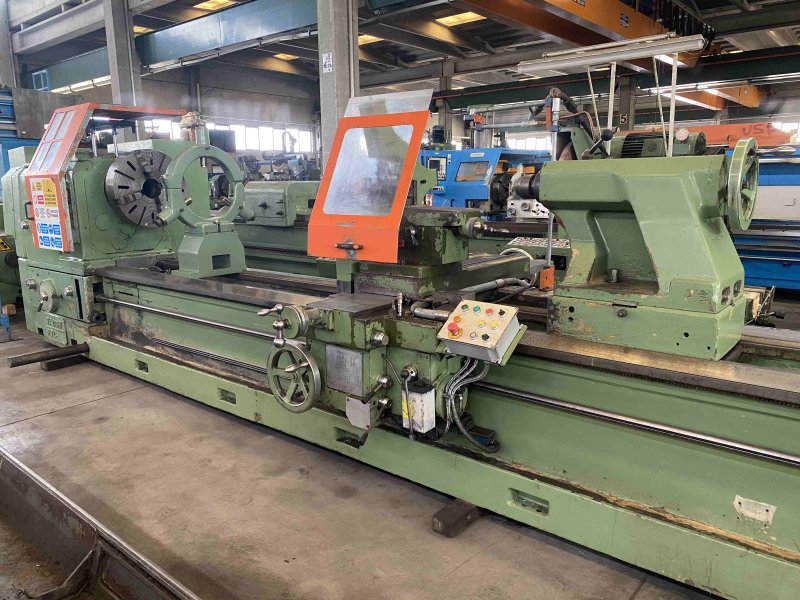

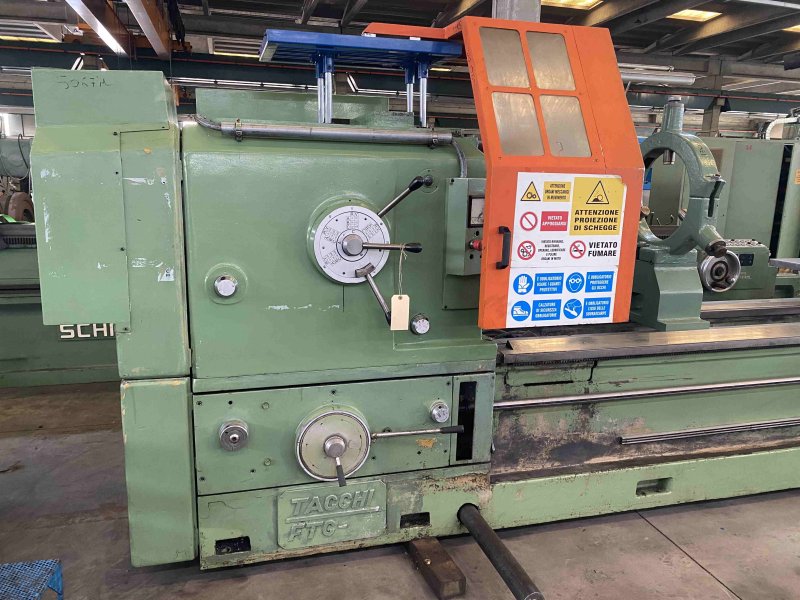

TACCHI FTC 600 x 8000 PARALLEL LATHE
Distance between centers 8,000 mm.
Height of centers 600 mm.
Max. Ø on the bed 1,200 mm.
Max. Ø on the carriage 840 mm.
Max. Ø in the throat 1,520 mm.
Throat length 405 mm.
Bed width 710 mm.
Load capacity between centers 10,800 kg.
Spindle motor power 22 kW.

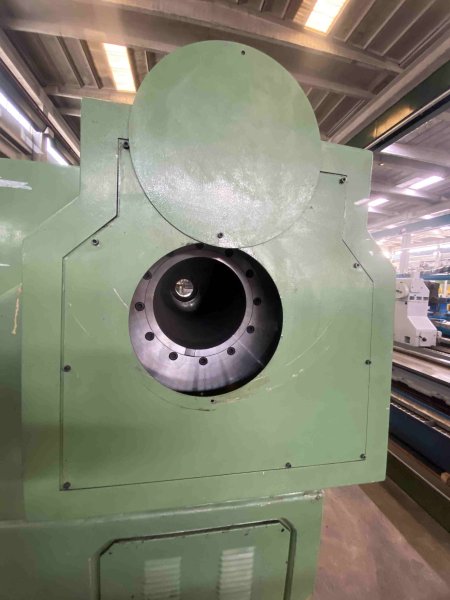

Spindle bore 215 mm.
Spindle speed - No. 24; 8 - 680 rpm
Tailstock quill diameter 140 mm.
Total weight 15 tons.
Overhauled in 2019

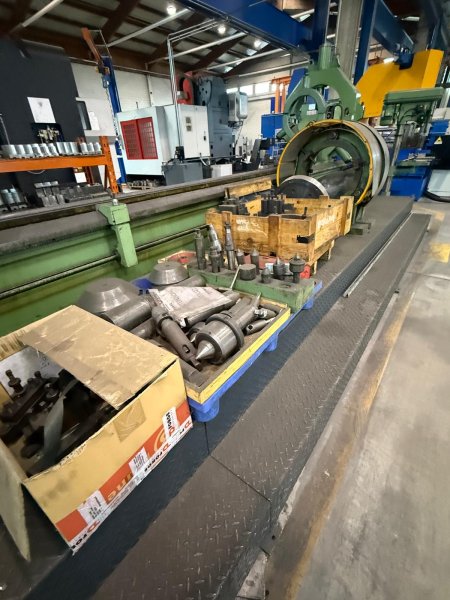

Complete with:

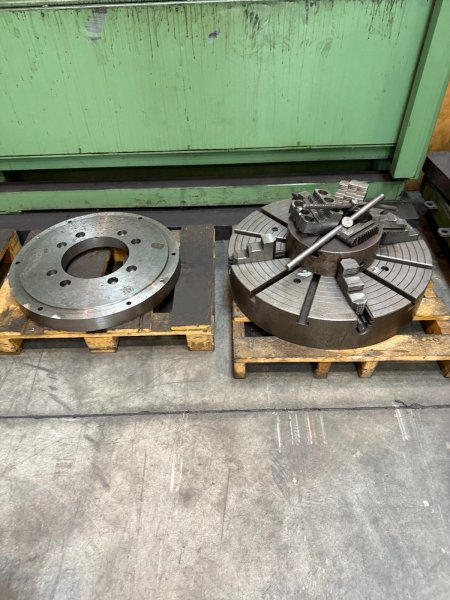

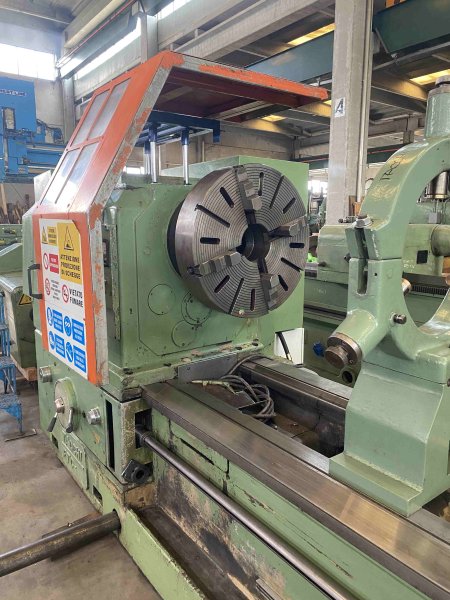

- 1 platform with four independent jaws, Ø 600 mm

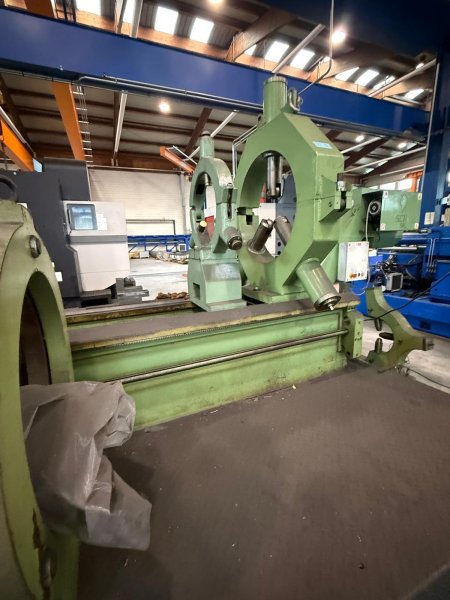

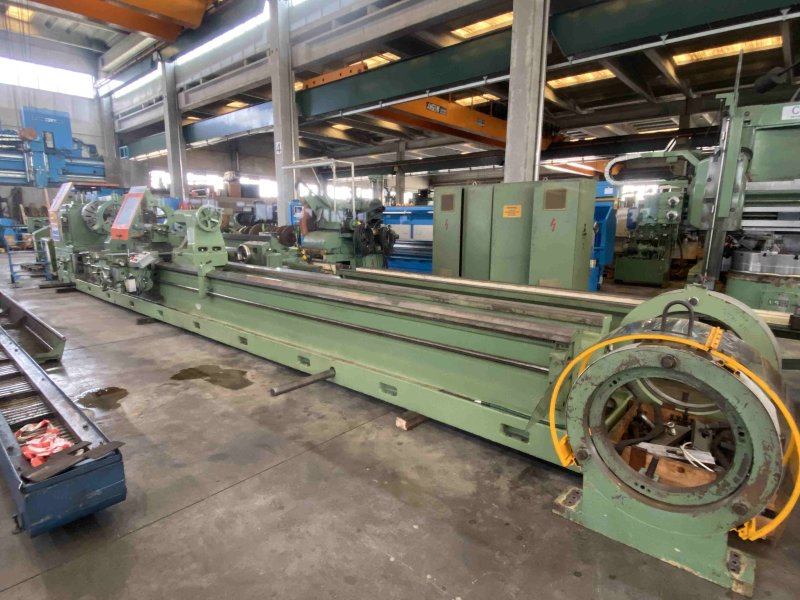

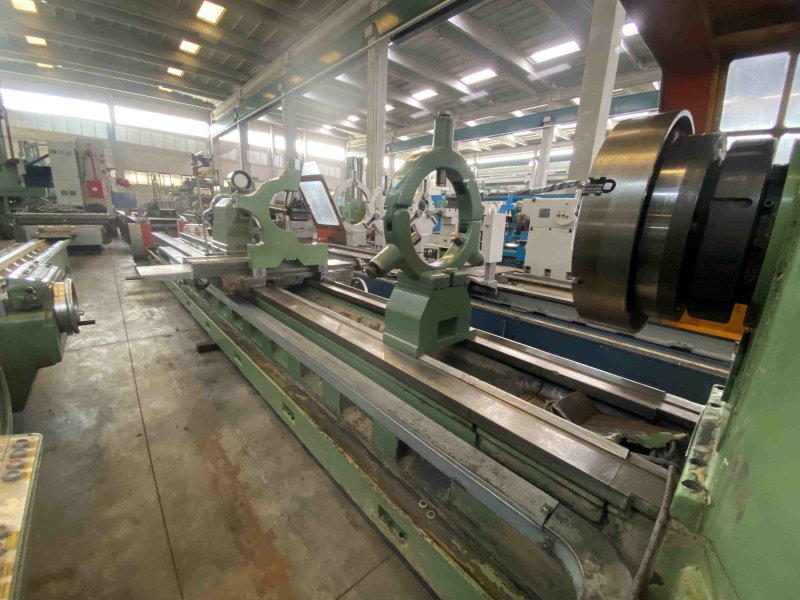

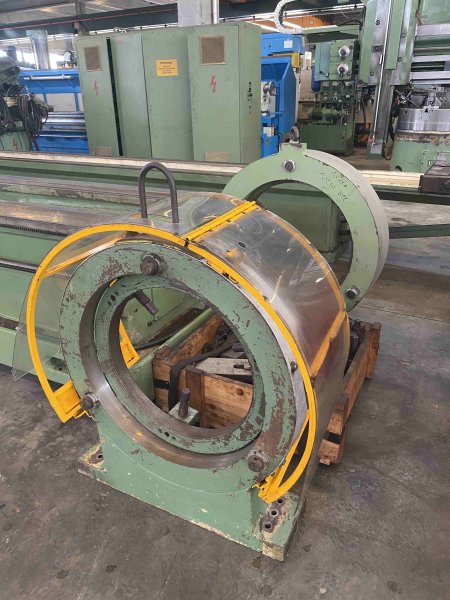

- 2 closed rests
- 1 open rest
- 2 rear supports

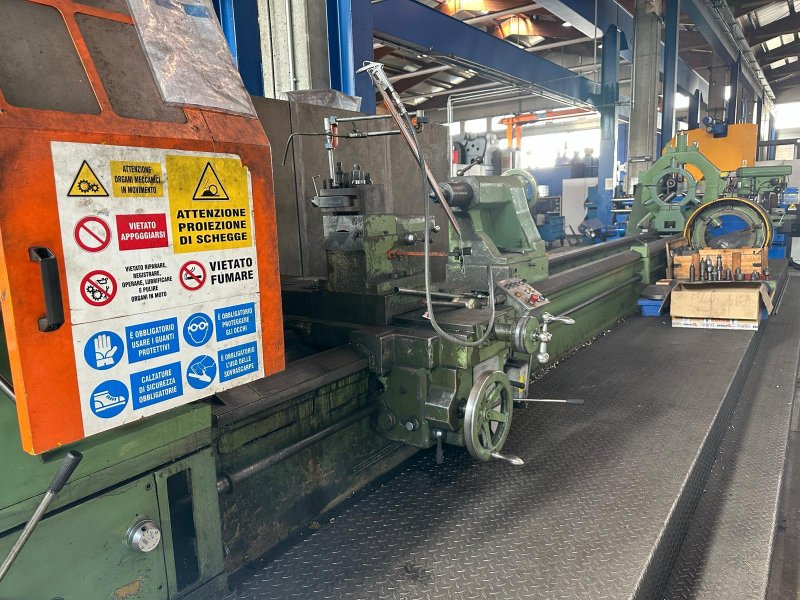

- Safety guards
