SARA SNC C 12 - S 2001
- Condition: used
- published: 14/07/2026
- 26IND49384
Technical data
- Condition: used
- Year: 2001
Description
SARA C12 S TAPPING MACHINE
YEAR 2001
MANUFACTURER: SARA S.N.C.
MODEL: C 12 - S
Features
Structure and Mechanical Characteristics
• Vertical Movement: Sensitive operation via a manual lever locate ...
SARA C12 S TAPPING MACHINE
YEAR 2001
MANUFACTURER: SARA S.N.C.
MODEL: C 12 - S
Features
Structure and Mechanical Characteristics
• Vertical Movement: Sensitive operation via a manual lever located on the right side, equipped with a black plastic grip.
• Column and Adjustment: Steel column with integrated rear rack for precise height adjustment of the headstock and workpiece table.

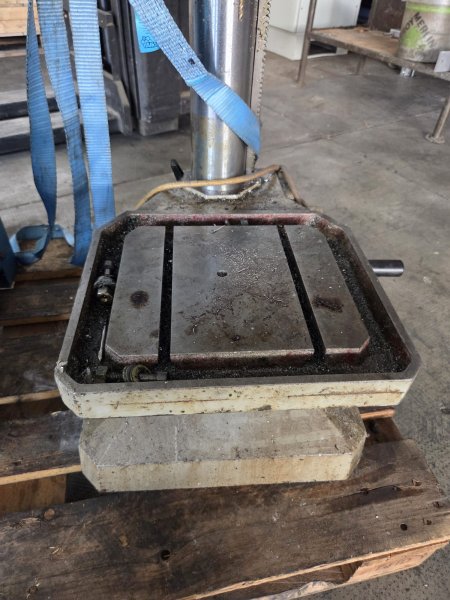

• Work Table: Ground cast iron table with two parallel T-slots for securely holding vises, jigs, or workpieces. The table features a central drain hole and a perimeter channel for collecting coolant/lubricant.

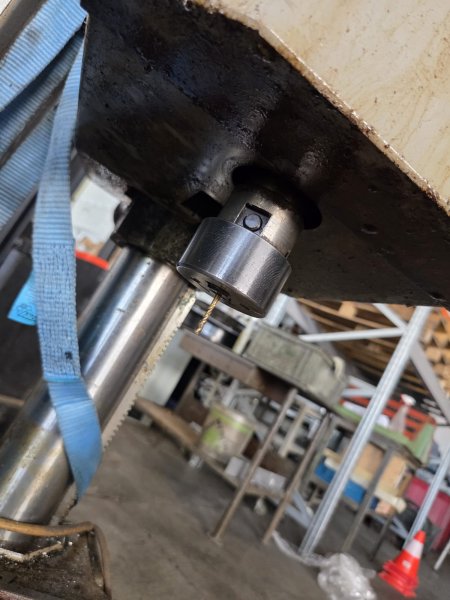

• Spindle/Attachment: Specific tapping spindle with rotation reversal system (for removing the tap at the end of the thread). Currently equipped with a small-diameter drill/tap.

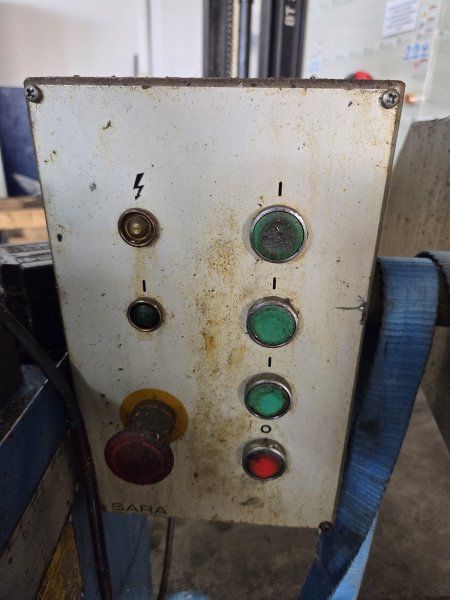

Control Panel and Electronics
The machine is equipped with an integrated electrical panel on the left side with a vertical button panel for managing work cycles and settings:
• Emergency Button: Red mushroom-shaped button with mechanical detent and a yellow base, positioned at the bottom for immediate shutdown.
• Power Indicator Light: Power indicator light (indicated by a lightning bolt).
• Selectors and Start Buttons:
o 3 green buttons for starting or selecting modes/speeds.
o 1 red stop button (O).
o 1 auxiliary selector/indicator light for cycle settings.
Notes on the Condition of the Machine

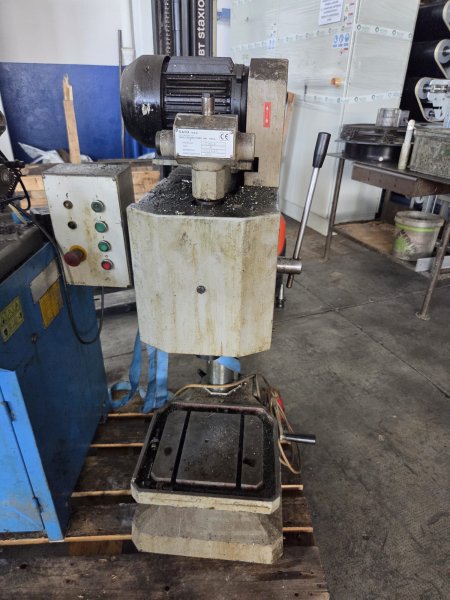

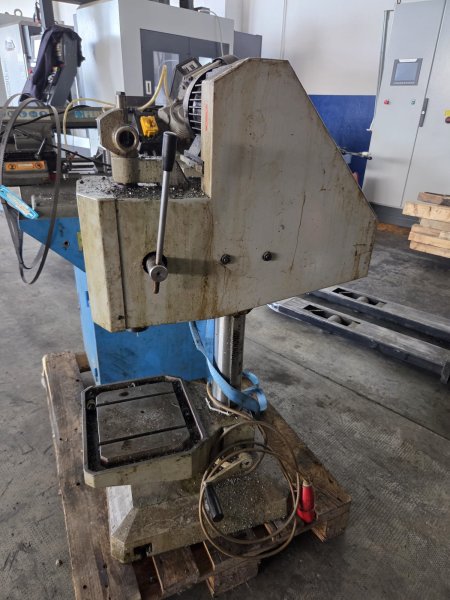

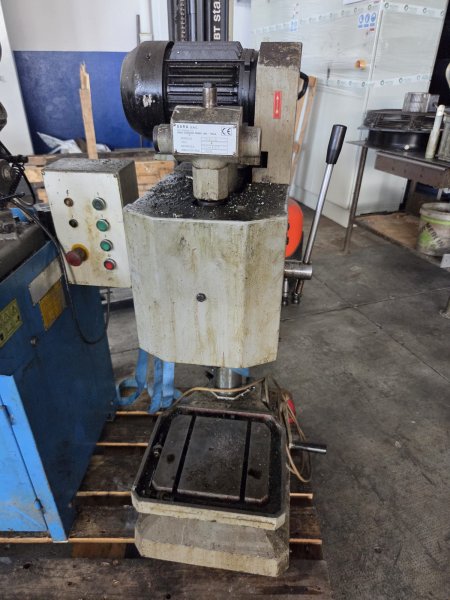

• Structural Condition: The machine is intact with all its essential components (upper finned electric motor, side transmission protection cover, cast iron head).
• Condition: Shows normal signs of industrial use, with metal shavings and lubricant residue on the head and work surface. Ideal for resale or replacement in "as is" condition.
All technical data shown is indicative and subject to change without notice and therefore should not be considered binding.
CE compliant
