YAMAZAKI MAZAK 250 M L 2015
- Condition: used
- published: 14/07/2026
- 26IND49388
Technical data
- Condition: used
- Year: 2015
Description

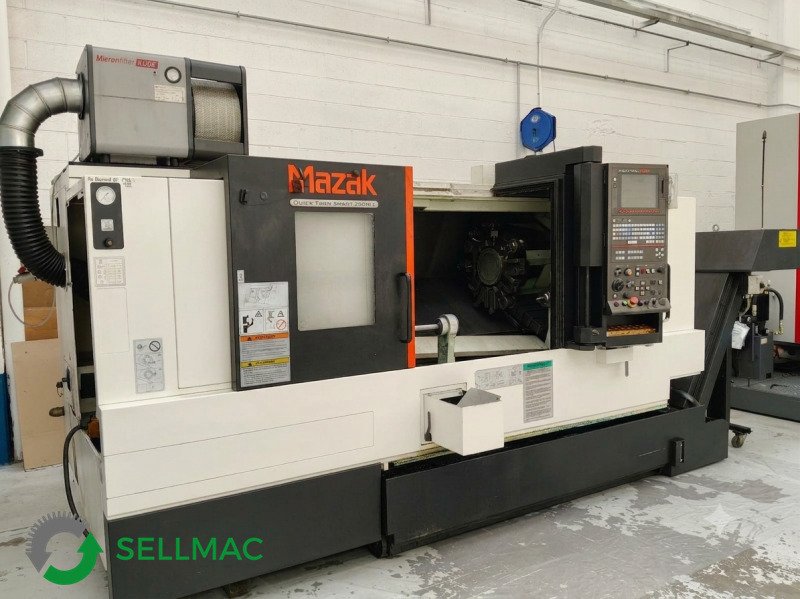

MAZAK QUICK TURN SMART 250M L LATHE
YEAR 2015
MANUFACTURER YAMAZAKI MAZAK
MODEL 250M L

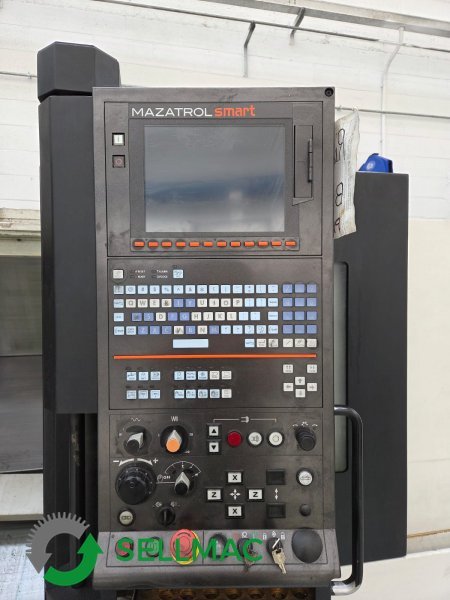

MAZATROL SMART CNC
Features
CAPACITY
Chuck dimensions 10 inches
Maximum workable diameter Ø660 mm
Standard wo ...
MAZAK QUICK TURN SMART 250M L LATHE
YEAR 2015
MANUFACTURER YAMAZAKI MAZAK
MODEL 250M L
MAZATROL SMART CNC
Features
CAPACITY
Chuck dimensions 10 inches
Maximum workable diameter Ø660 mm
Standard working diameter Ø255 mm
Maximum working diameter Ø360 mm
Bar capacity Ø80 mm
Distance between spindle side and turret side surface 59.5 – 1179.5 mm
Maximum weight Permitted load (including chuck):
- Flange 450 kg
- Shaft 500 kg
SPINDLE
Speed range 35 – 4,000 rpm
Spindle end shape JIS A2-8
Acceleration type s 2.3
Bore mm Ø91
Motor power
(operation 30 minutes/cont.) kW 26/22
Maximum torque (15% ED) Nm 465
TAILSTOCK
Center hole - center boring MT No. 5
Stroke (tailstock) mm 1075
Minimum thrust N 1000
Maximum thrust N 5000

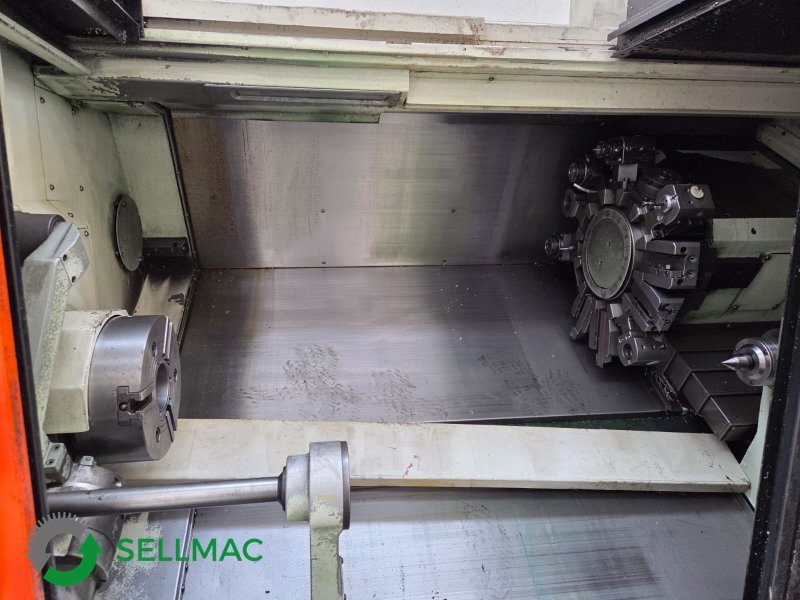

TURRET
Number of tool positions 12
Tool size:
- External turning mm 25
- Internal turning Ø40 mm
- Drilling max. Ø20 mm
- Tailstock max. Ø20
- Motorized tap mm max M20 (3/4 UNI) x 2.5
Indexing time:
- Next/opposite position s 0.23/0.62
Milling spindle motor power
(40% ED operation/continuous operation) kW 5.5/3.7
Milling spindle speed rpm 6,000
Milling spindle maximum torque
(40% ED) Nm 47
FEED AXES
Rapid X/Z travel m/min 30/33
R.T. time constant X/Z ms 65/80
X travel mm 225 (220 + 5)
Z travel mm 1125 (1120 + 5)
OTHER
Coolant tank capacity l 315
Power specifications (cont./30-min) kVA 38.8/44.6
DIMENSIONS (per manual)
Overall dimensions:
- Height 1820 mm
- Length 3385 mm
- Width (excluding control panel) 1720 mm
Machine weight (without chip conveyor and coolant):
- Body + coolant tank 6050 kg
- Complete weight with steady rest 6250 kg
Machine supplied with manuals
All technical data shown is indicative and subject to change without notice and therefore should not be considered binding.
Working
CE compliant
