GRAZIANO SAG 14x1000
- Condition: used
- published: 21/07/2026
- 26IND49405
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description

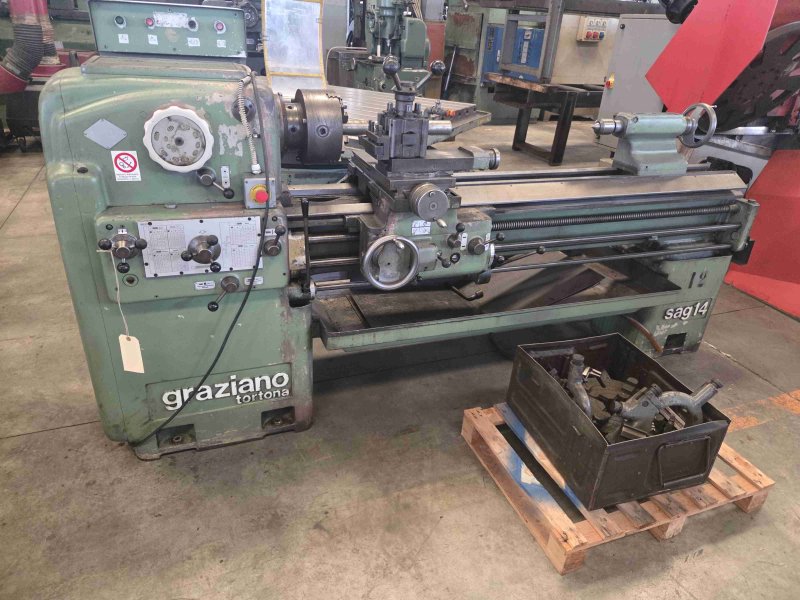

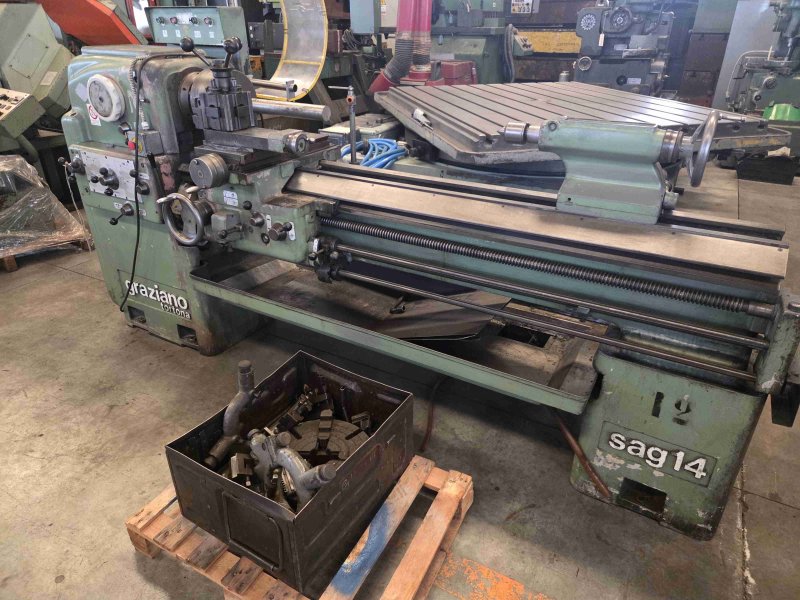

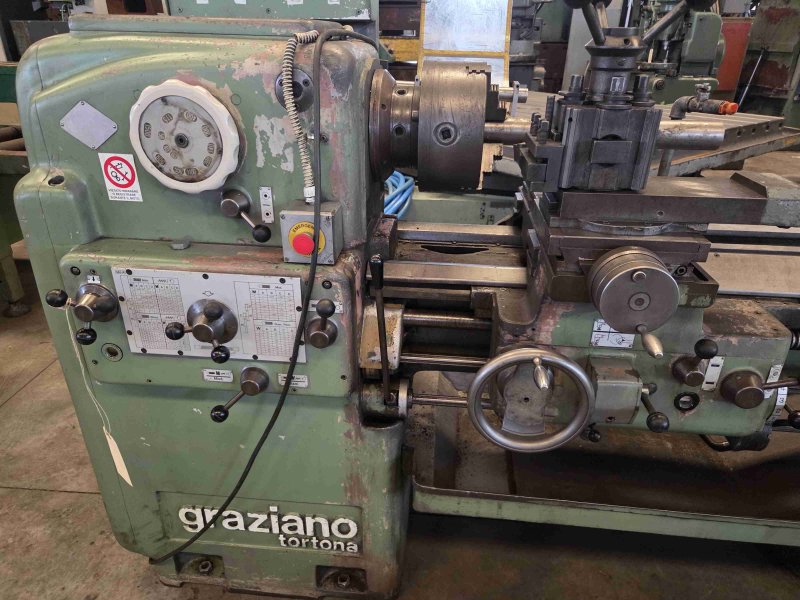

GRAZIANO SAG 14 PARALLEL LATHE
Distance between centers 1,000 mm.
Height of centers 180 mm.
Max. Ø over bed 355 mm.
Max. Ø over slide 220 mm.
Max. Ø over throat 505 mm.
Throat length 275 mm.
Bed wi ...
GRAZIANO SAG 14 PARALLEL LATHE
Distance between centers 1,000 mm.
Height of centers 180 mm.
Max. Ø over bed 355 mm.
Max. Ø over slide 220 mm.
Max. Ø over throat 505 mm.
Throat length 275 mm.
Bed width 280 mm.
Spindle speed - No. 12; 40 - 1,500 rpm.
Spindle bore 51 mm.
Motor power 5.5 hp.
Total weight 1,320 kg.

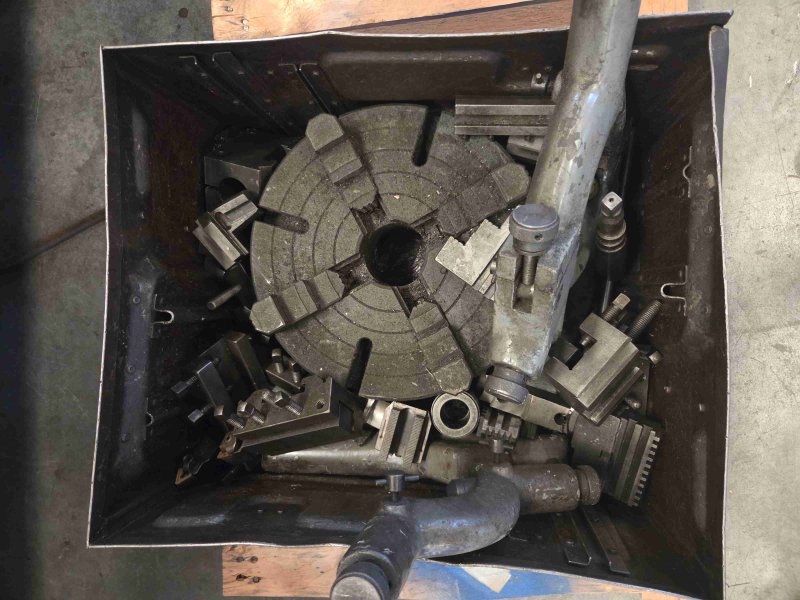

Complete with:
- No. 1 4-jaw chuck Ø 310 mm.
- No. 1 self-centering chuck, Ø 220 mm.
- 1 closed steady rest
- 1 open steady rest
- safety guards
