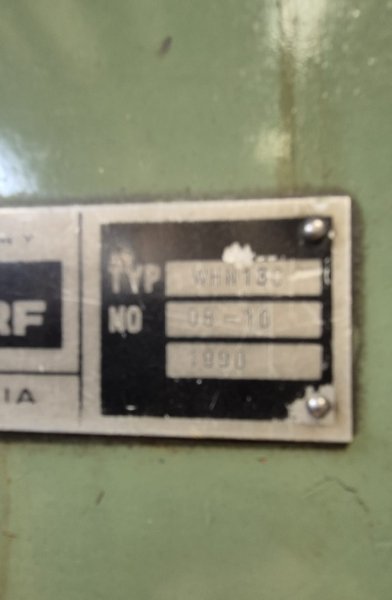

TOS WHN 13 C CNC 1990
- Condition: used
- published: 21/07/2026
- 26IND49406
Technical data
- Condition: used
- Year: 1990
- Mandrel diameter: 101/130 mm
- X-axis travel: > 2000 mm
- Y-axis stroke: 1001/2000 mm
Description

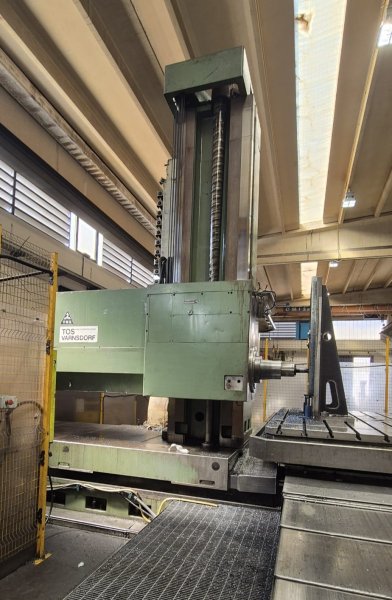

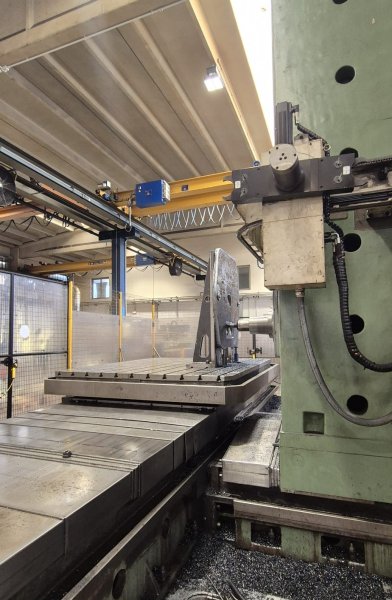

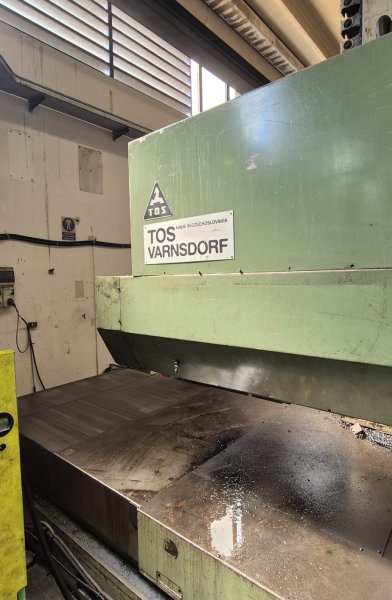

TOS WHN 13 CNC T-SHAPED BORING MACHINE
Table cross travel (X) 3,500 mm.
Column longitudinal travel (W) 1,250 mm.
Head vertical travel (Y) 2,000 mm.

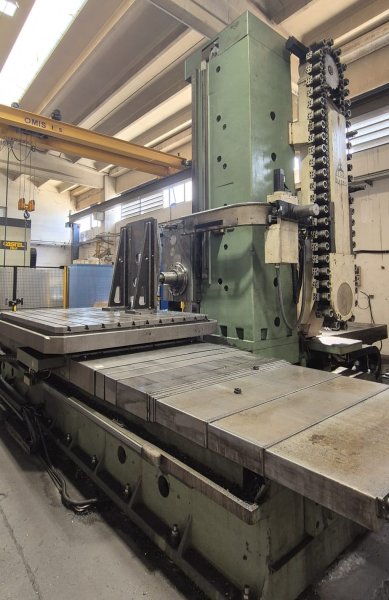

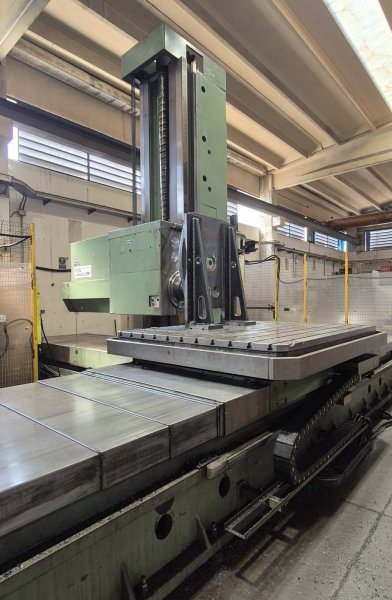

Table 1,800 x 1,600 mm.
Table capacity 12 tons.
Spin ...
TOS WHN 13 CNC T-SHAPED BORING MACHINE
Table cross travel (X) 3,500 mm.
Column longitudinal travel (W) 1,250 mm.
Head vertical travel (Y) 2,000 mm.
Table 1,800 x 1,600 mm.
Table capacity 12 tons.
Spindle travel (Z) 800 mm.
Spindle diameter 130 mm.
Spindle taper ISO 50
Spindle speed - 2 ranges; 5 ÷ 1,500 rpm.
Spindle motor power 37 kW.
Working feeds (X; Y; W; Z) 4 ÷ 3,000 mm/min.
Rapid feeds (X; Y; W; Z) 8,000 mm/min.
Total weight 36 tons.

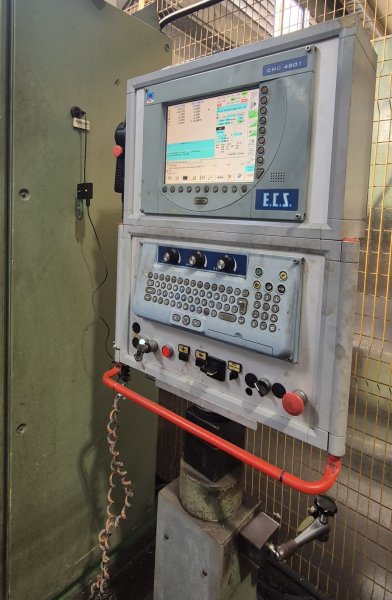

ECS 4801 CNC
Year of construction 1990
Complete with:

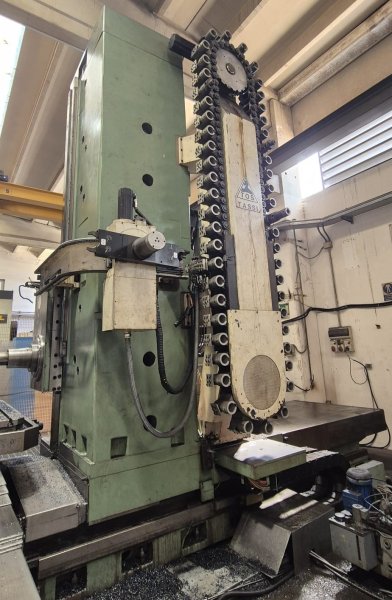

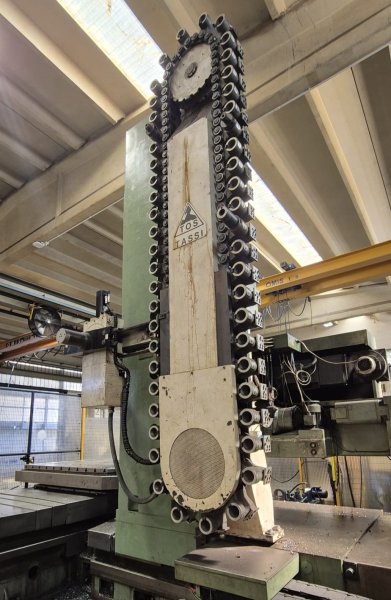

- 50-slot tool magazine

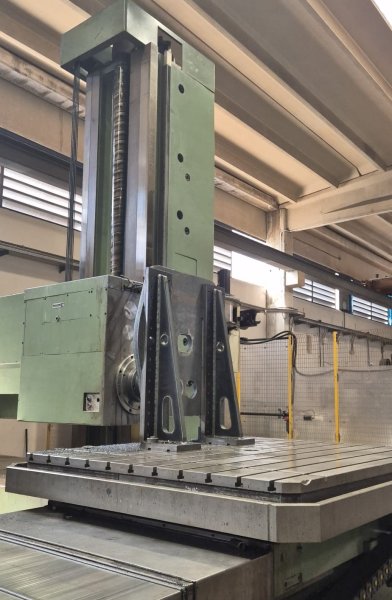

- Boring stand
