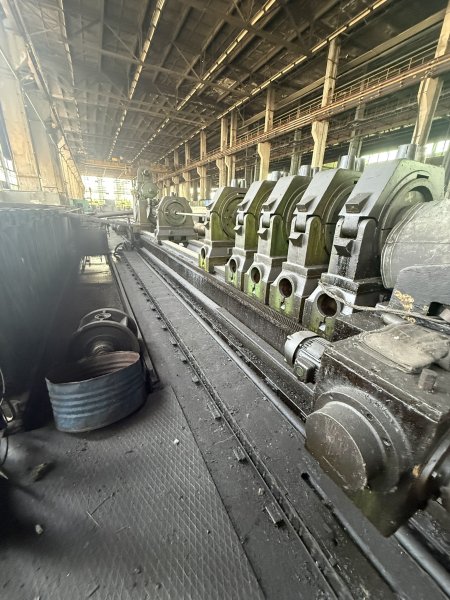

TACCHI FT 50 1985
- Condition: used
- published: 21/07/2026
- 26IND49407
Technical data
- Condition: used
- Year: 1985
Description
TACCHI FT 50 DOUBLE-HEAD DEEP HOLE DRILLING MACHINE
Max. drilling depth right head 10,000 mm.
Max. drilling depth left head 6,000 mm.
Max. total drilling depth 16,000 mm.
Height of drills 510 mm.
Max. ...

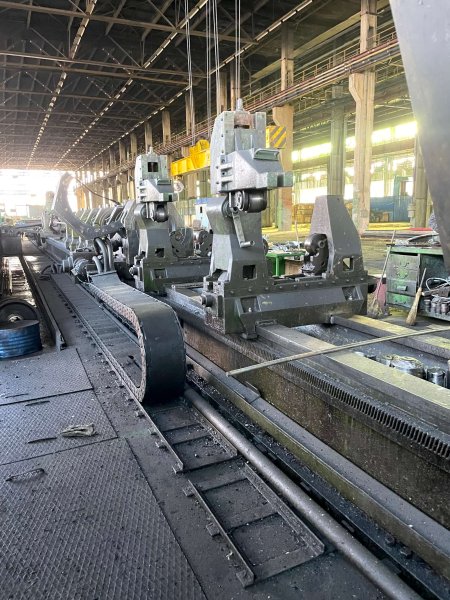

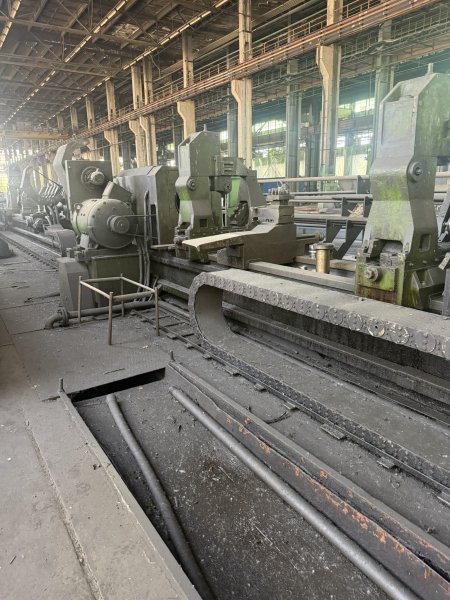

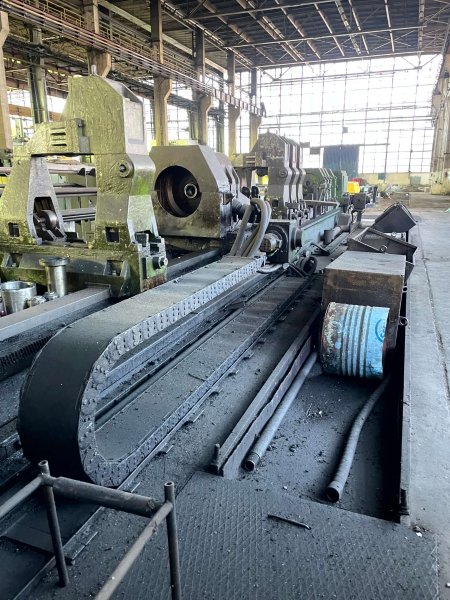

TACCHI FT 50 DOUBLE-HEAD DEEP HOLE DRILLING MACHINE
Max. drilling depth right head 10,000 mm.
Max. drilling depth left head 6,000 mm.
Max. total drilling depth 16,000 mm.
Height of drills 510 mm.
Max. Ø on the bed 1,020 mm.
Bed width 700 mm.
Max. working capacity:
- solid 30 ÷ 120 mm.
- core drilling 50 ÷ 360 mm.
- boring > 360 mm.
Spindle bore 360 mm.

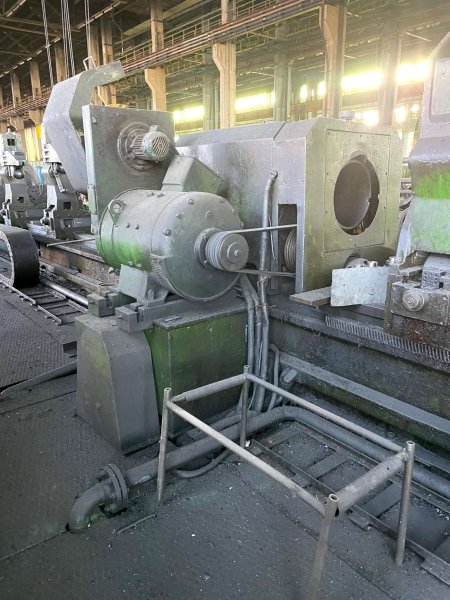

Workhead motor power 74 kW.
Workhead rotation speed: 75-800 rpm

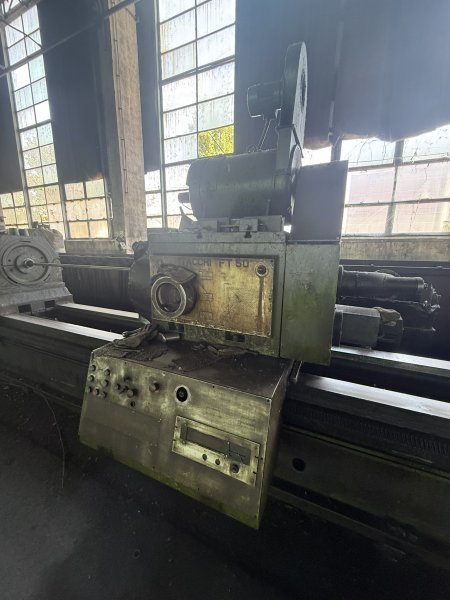

2 rotating drilling heads:
- Spindle speed: 75-1,300 rpm
- Rotating head motor power: 30 kW
Total weight: 95 tons
Year of construction: 1985
Complete with:

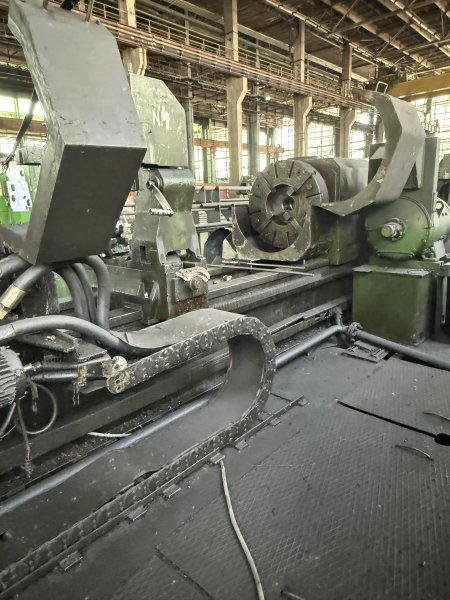

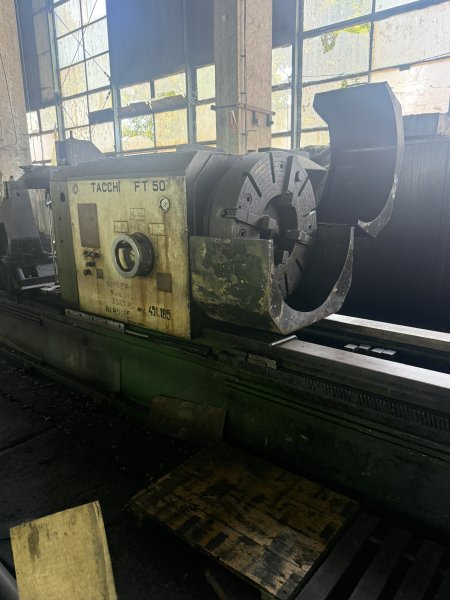

- 1 4-jaw platform with independent jaws, Ø 800 mm

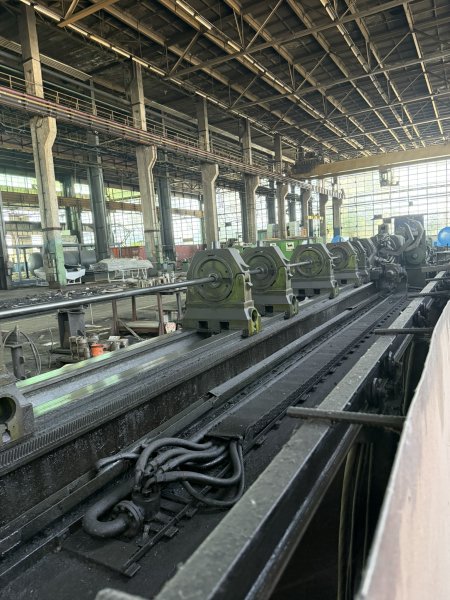

- 7 closed rests
- 2 open rests
- 10 rod guide supports
- 1 trolley for facing each part
- Various feeders and rods
