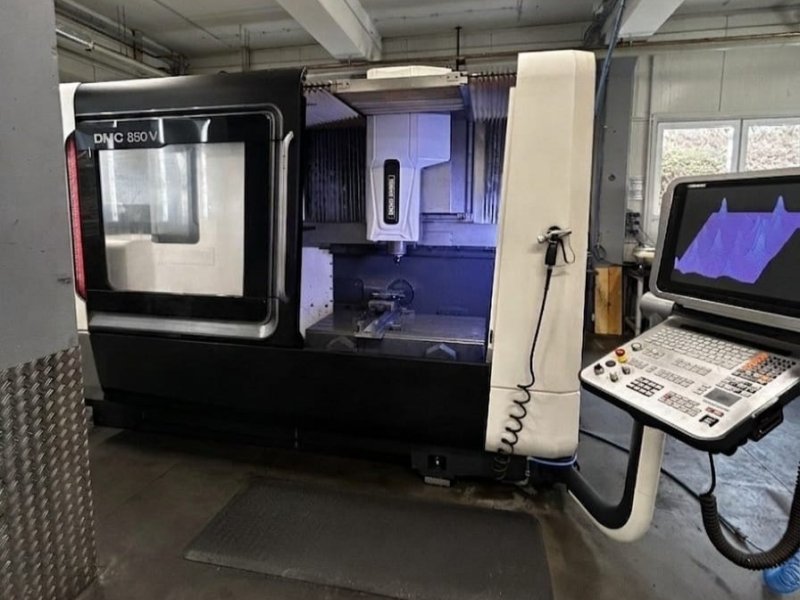

DMG MORI DMC 850 V 2015
- Condition: used
- published: 22/07/2026
- 26IND49423
Technical data
- Condition: used
- Year: 2015
- X-axis travel: 0/1000 mm
Description
Year of manufacture: 2015

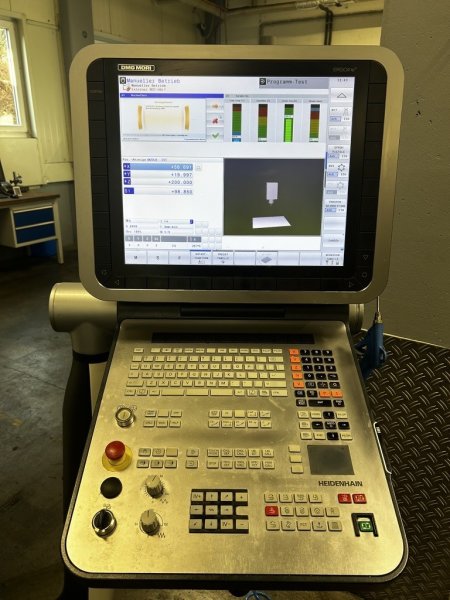

Numerical control: Heidenhain TNC 640
Axes
X-axis travel mm: 850
Y-axis travel mm: 520
Z-axis travel mm: 475
Feed rate m/min: 42
Rapid feed m/min: 42
Axis acceleration m/s2: ...
Year of manufacture: 2015
Numerical control: Heidenhain TNC 640
Axes
X-axis travel mm: 850
Y-axis travel mm: 520
Z-axis travel mm: 475
Feed rate m/min: 42
Rapid feed m/min: 42
Axis acceleration m/s2: 5

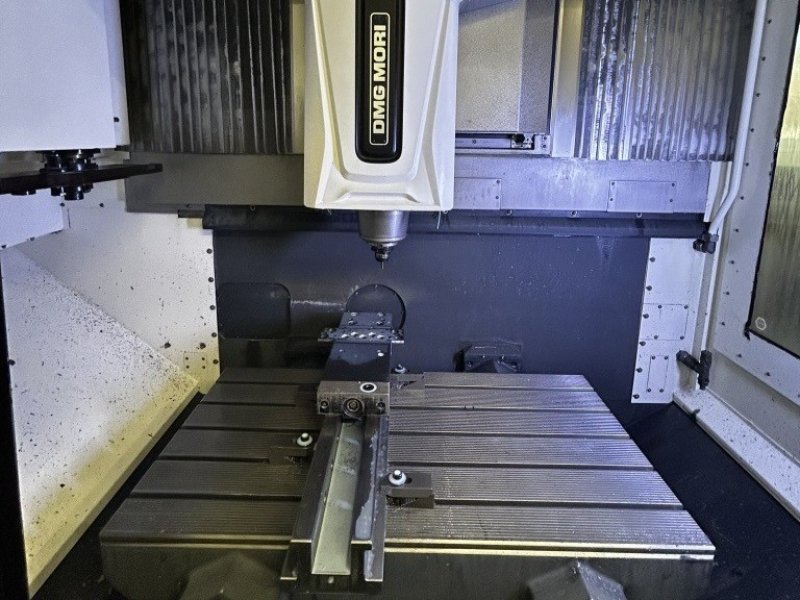

Working area
Table dimensions mm: 1100x570
Maximum workpiece size mm: H=800mm
Maximum workpiece weight kg: 1000
Spindle
Spindle rotation speed rpm: 14,000
Spindle power kW: 20.3/14.5 (40/100% DC)
Coolant
Coolant via spindle center bar: 20
Tank capacity: 600 liters
Tool magazine
SK 40 tool holder
Tool magazine positions: 20
With adjacent tool positions free: 130 mm
With adjacent tool positions occupied: 80 mm
Maximum tool length: 300 mm
Tool change time, chip-to-chip (s): 5.7
Equipment
Electronic handwheel
Chip conveyor
Infrared probe
Internal cooling lubricant supply (via center)
Flushing gun
4 operating modes
Air flow through the spindle activated by the M function
Direct XYZ measuring system
Paper belt filter
Working time
Powered: ---
Spindle working: -----

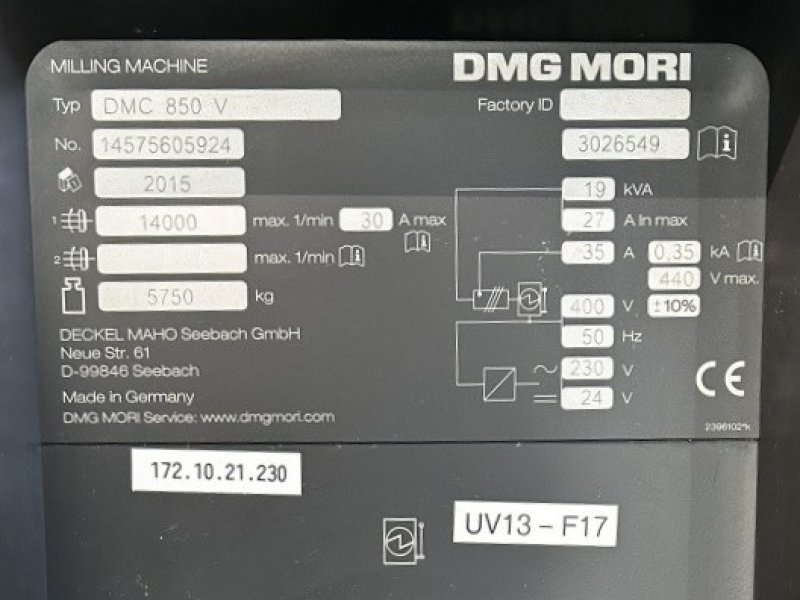

Rated power kVA: 19
Main machine dimensions / weight
Length mm: 3600
Width mm: 2300
Height mm: 2700
Weight kg: 5750
