WALDRICH COBURG 30 FS 5040-10 CNC 1969
- Condition: used
- published: 28/07/2026
- 26IND49457
Technical data
- Condition: used
- Year: 1969
Description

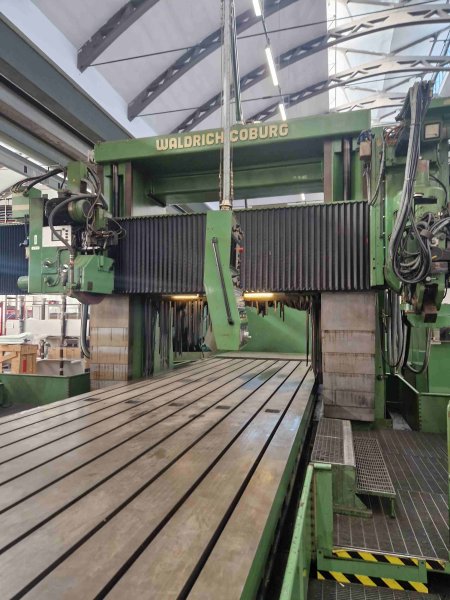

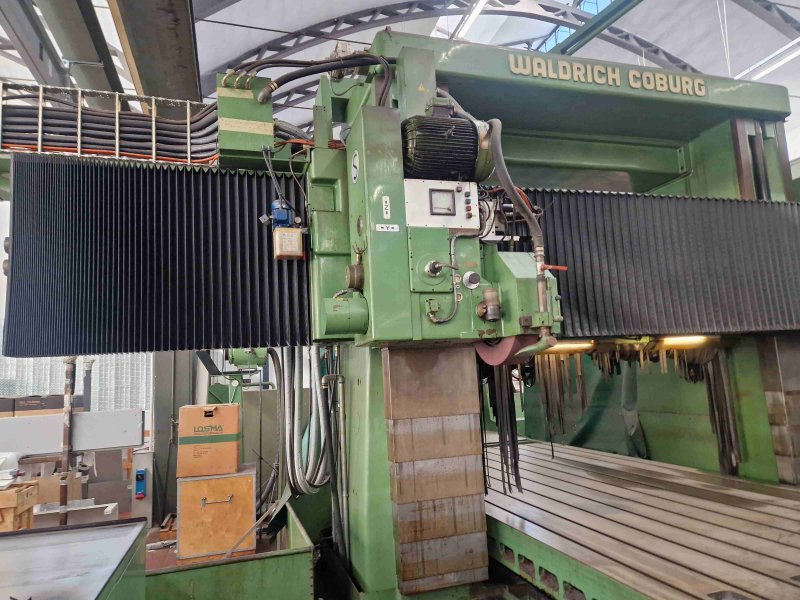

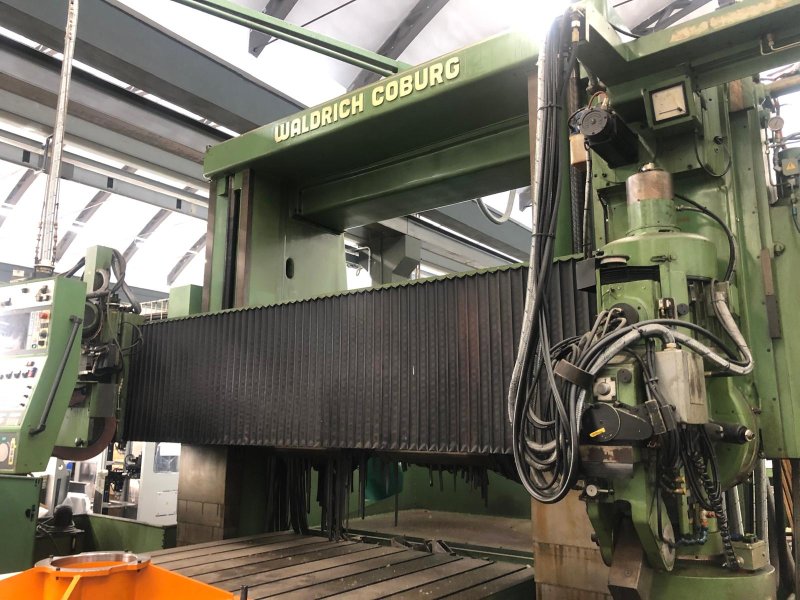

WALDRICH COBURG 30 FS 5040-10 CNC GANTRY GRINDING MACHINE
Table 10,000 x 2,500 mm
Maximum grinding length 10,000 mm
Maximum grinding width 2,500 mm
Clearance between uprights 2,725 mm
Maximum working ...
WALDRICH COBURG 30 FS 5040-10 CNC GANTRY GRINDING MACHINE
Table 10,000 x 2,500 mm
Maximum grinding length 10,000 mm
Maximum grinding width 2,500 mm
Clearance between uprights 2,725 mm
Maximum working height 2,000 mm
Table load capacity 20,800 kg
Table speed 1 ÷ 40 m/min

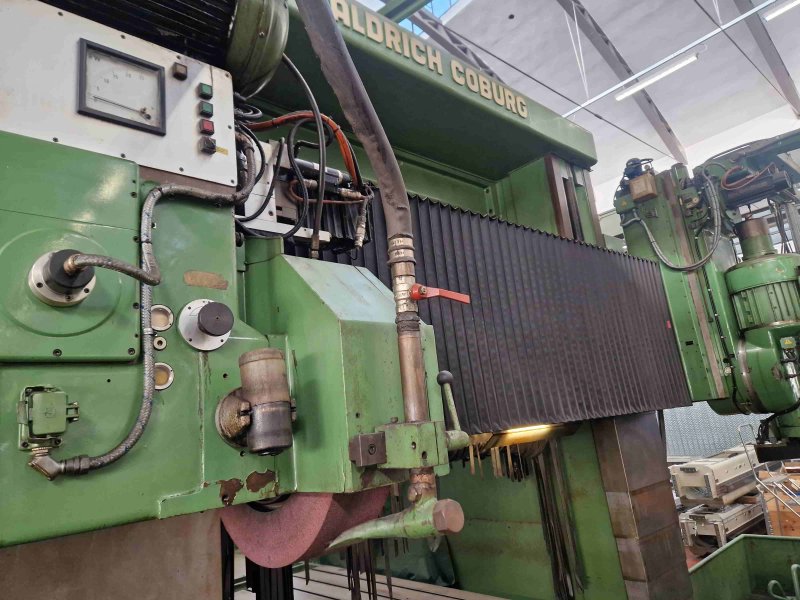

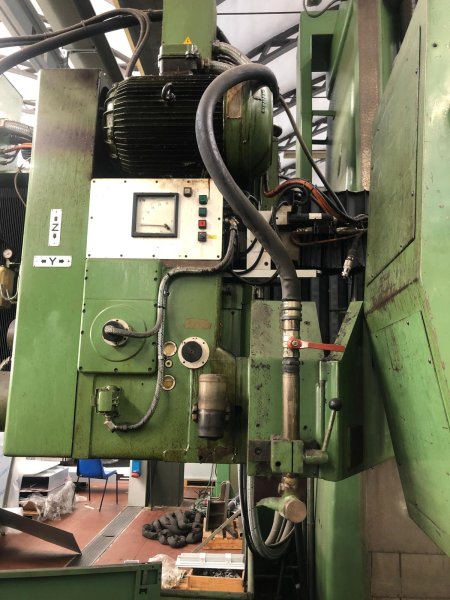

One tangential head, model S 30:

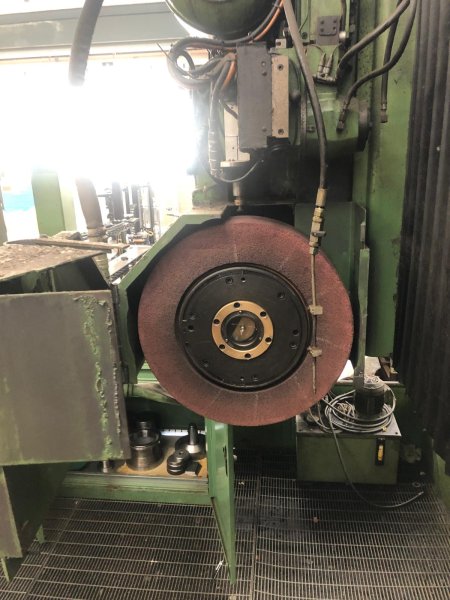

- Grinding wheel diameter 600 mm
- Grinding wheel width 150 mm
- Grinding wheel motor power 30 hp
- with CNC diamond cutting unit

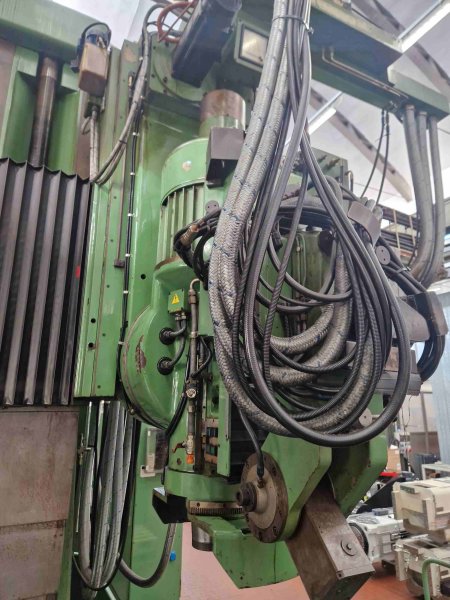

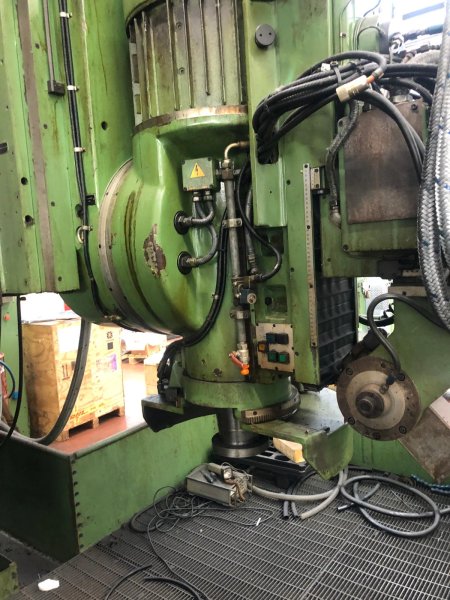

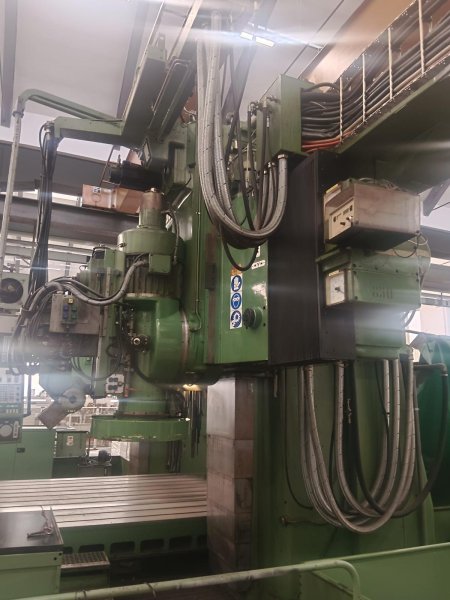

One tilting head, model S 10:
- Ø 500 mm grinding wheel
- 60 mm grinding wheel width
- 10 hp grinding wheel motor power
- CNC motorized tilting +/- 110°
- with CNC diamond cutting unit

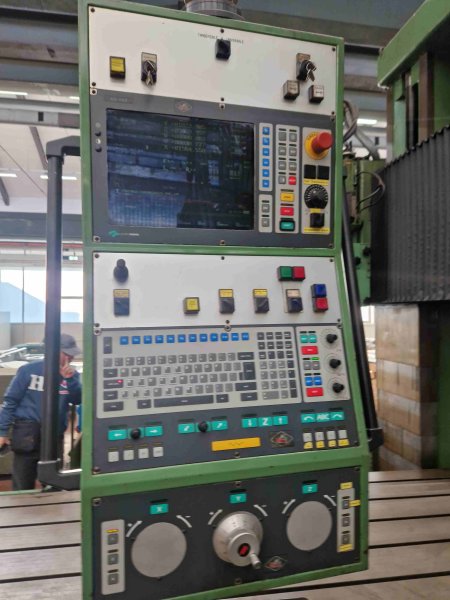

CNC D Electron AZ 102
Total weight 130 tons
Year of construction/overhaul 1969/1994
Complete with:
- grinding wheel and grinding wheel flanges
- tank with filter
- leveling feet
