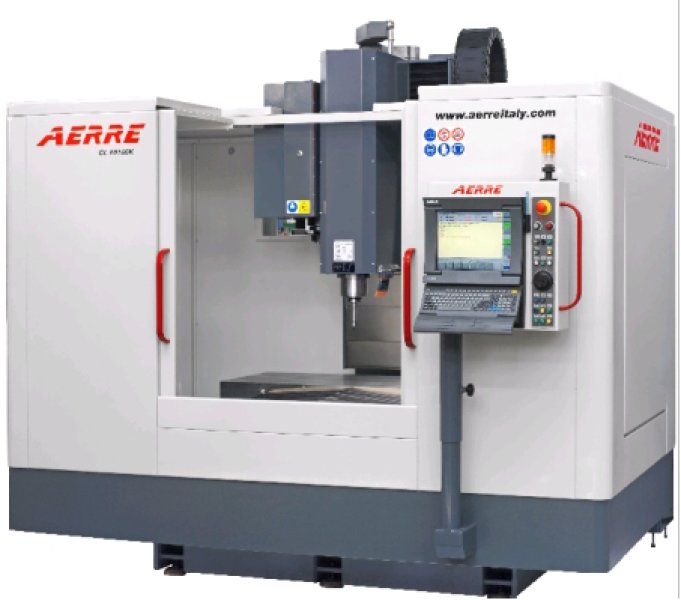

AERRE CL 55100 A 2003
- Condition: used
- published: 24/08/2026
- 26IND49495
Technical data
- Condition: used
- Year: 2003
Description
https://eurotechmachines.com/macchine-usate/-- MACHINE SOLD WITH WARRANTY !! OVERHAULED MACHINE -- Worktable dimensions mm 1400x600, X-axis travel mm 1000, Y-axis travel mm 600, Z-axis travel mm 600, ...
https://eurotechmachines.com/macchine-usate/-- MACHINE SOLD WITH WARRANTY !! OVERHAULED MACHINE -- Worktable dimensions mm 1400x600, X-axis travel mm 1000, Y-axis travel mm 600, Z-axis travel mm 600, Heidenhain optical scales with pressurization system and filter group, Worktable capacity Kg 1000, Disc tool magazine 20 positions, Cone (DIN 69871) ISO 40, “Siemens” spindle motor power (in S1 at 1000 RPM) kW 12, Torque (in S1 from 0 to 1000 RPM) Nm 114, Spindle speed (continuous) RPM 9,000, Rapid axes feed rate mm/min. 30,000, Tanks with drawers for chip collection (A belt chip conveyor can be fitted as an option), Base washing pump, Dimensions (LxWxH) (approx.) mm 3000x2850x3100, CNC SELCA S4040 D (digital with fibre optics), Handwheel on panel on wall cabinet, Water coolant external to the tool, Air coolant external to the tool 6/8 bar (MISSING - installable), Water coolant internal to the tool 15 bar (MISSING - installable), Air coolant inside the tool 6/8 bar (MISSING - installable), Year of construction 2003
