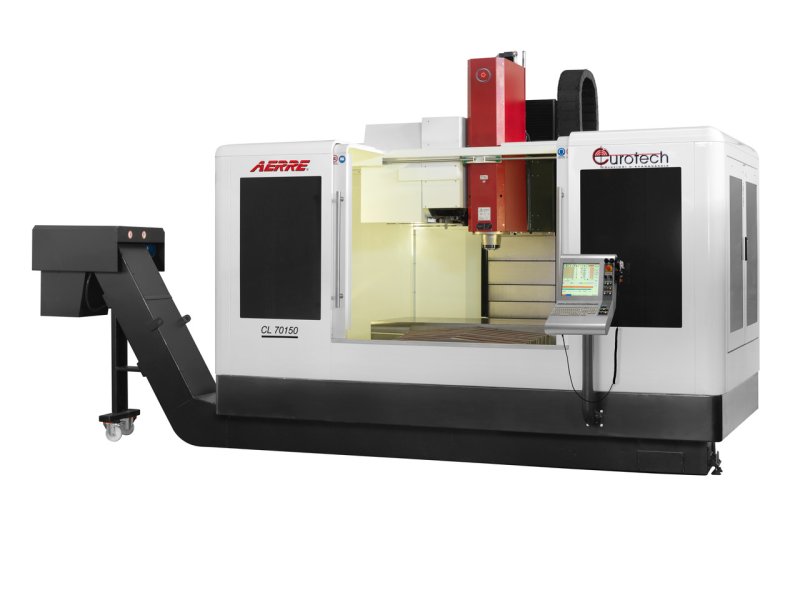

EUROTECH AERRE CL 70150 2016
- Condition: used
- published: 24/08/2026
- 26IND49496
Technical data
- Condition: used
- Year: 2016
Description
https://eurotechmachines.com/macchine-usate/-- MACHINE SOLD WITH WARRANTY !! OVERHAULED MACHINE --- Worktop dimensions mm 1700x700, X-axis travel mm 1500, Y-axis travel mm 700, Z-axis travel mm 700, W ...
https://eurotechmachines.com/macchine-usate/-- MACHINE SOLD WITH WARRANTY !! OVERHAULED MACHINE --- Worktop dimensions mm 1700x700, X-axis travel mm 1500, Y-axis travel mm 700, Z-axis travel mm 700, Worktop capacity Kg 1500, Chain tool magazine with 32-position exchange arm, Cone (DIN 69871) ISO 40, “Siemens” spindle motor power (in S1 at 1500 RPM) kW 15, Torque (in S1 from 0 to 1000 RPM) Nm 96, In-line spindle, Spindle speed (continuous) RPM 12,000, Rapid axis feed rate mm/min. 36,000, Tanks with drawers for chip collection (optionally a belt chip evacuator can be mounted), Timed base washing pump, Dimensions including evacuator (WxDxH) (approximately) mm 4000x2850x3100, CNC D.Electron Z32 with digital communication with CNC via optical fiber, 100% compatibility option with SELCA programming, Portable handwheel, Water coolant external to the tool, Air coolant external to the tool 6/8 bar, Water coolant internal to the tool 15 bar, Air coolant inside the tool 6/8 bar, Heidenhaini optical scales, Year of construction 2016
