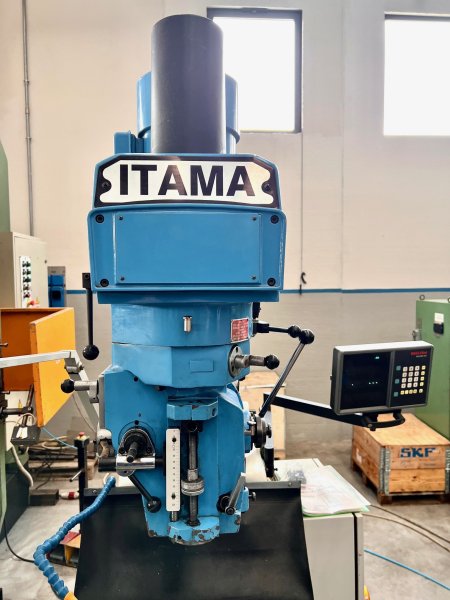

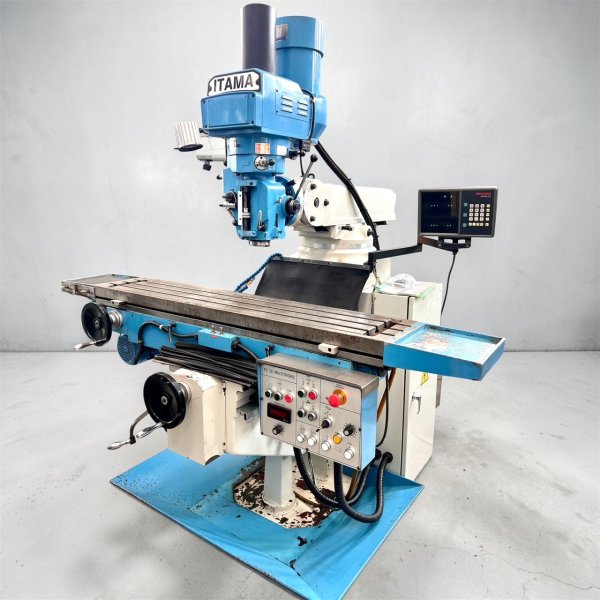

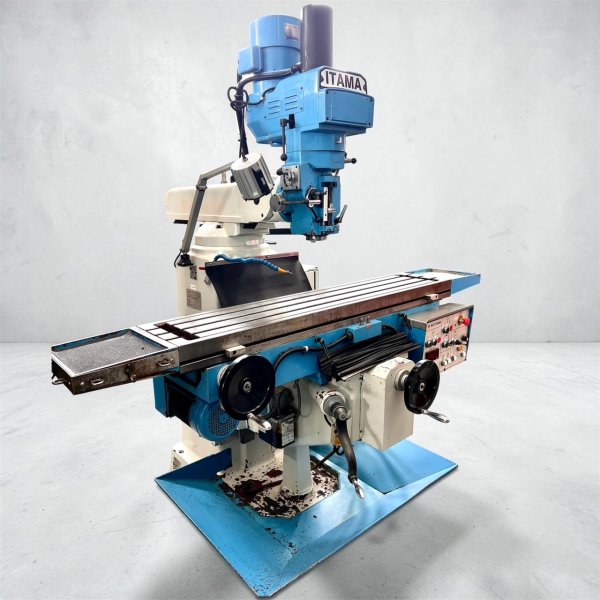

ITAMA FV 30 Multitronic
- Condition: used
- published: 28/08/2026
- 26IND49501
Technical data
- Condition: used
- Year: undefined
- X-axis travel: 0/4000 mm
Description
Table mm. 1500X305 Travels (X-Y-Z) mm. 1000X390X400 Vertical spindle connection ISO 40 Vertical spindle speeds with inverter rpm 70-4200 Quill travel mm. 125 Right and left angular inclination at 90° ...

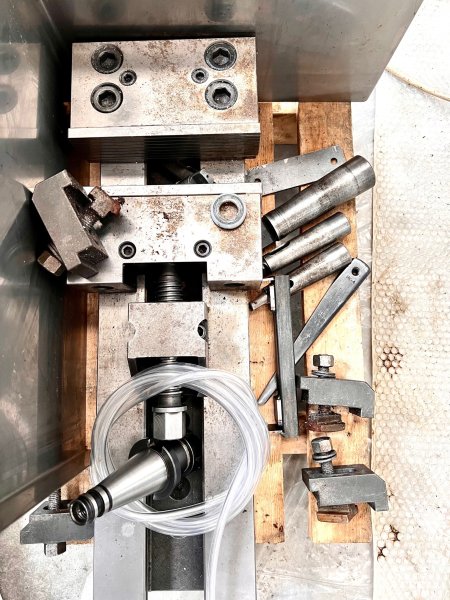

Table mm. 1500X305 Travels (X-Y-Z) mm. 1000X390X400 Vertical spindle connection ISO 40 Vertical spindle speeds with inverter rpm 70-4200 Quill travel mm. 125 Right and left angular inclination at 90° Vertical spindle motor HP 5 Overall dimensions mm. 2000X1700X2300h Weight approx. Kg. 1700 COMPLETE WITH: - 3-axis "ANILAM" readout - Speed variator on vertical spindle - Automatic tie rod screwdriver on vertical spindle - Automatic feeds with inverter - Steel vice
Working
CE compliant
