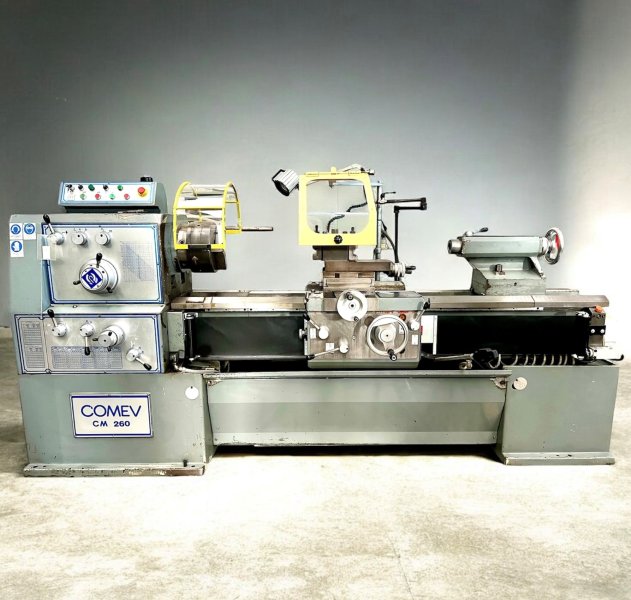

COMEV CM 260x1500
- Condition: used
- published: 28/08/2026
- 26IND49515
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 251/500 mm
Description
Height of centers on the bed mm. 260 Distance of centers mm. 1500 Max. turning diameter on the bed mm. 520 Turning diameter on the carriage mm. 320 Spindle hole mm. 80 Spindle connection C.L. 8" Tails ...

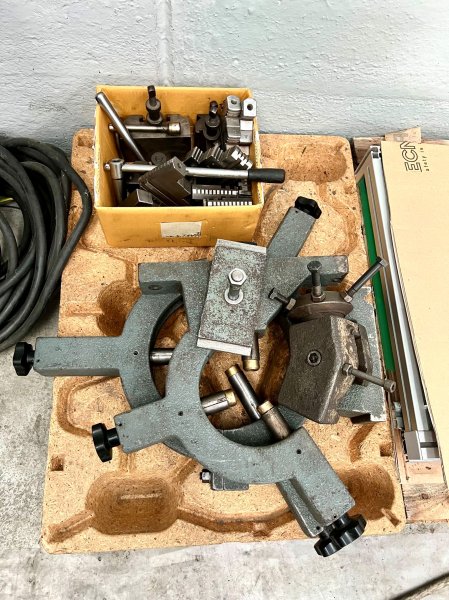

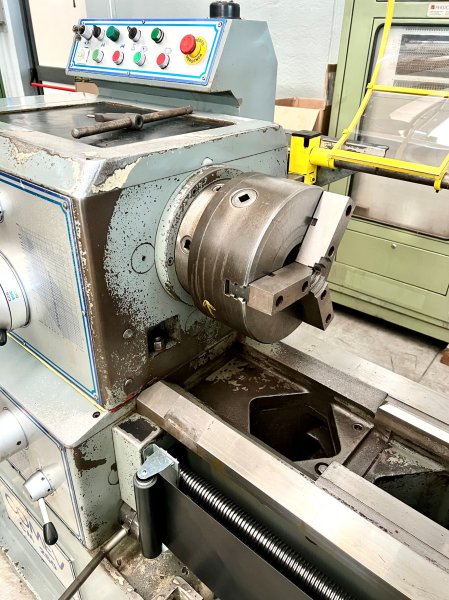

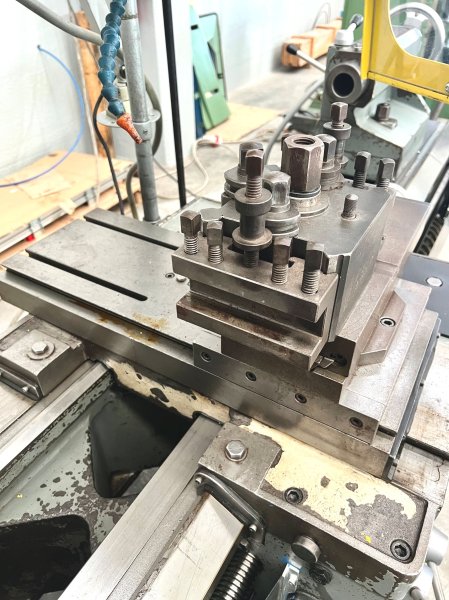

Height of centers on the bed mm. 260 Distance of centers mm. 1500 Max. turning diameter on the bed mm. 520 Turning diameter on the carriage mm. 320 Spindle hole mm. 80 Spindle connection C.L. 8" Tailstock cone c.m. 5 Spindle speed rpm 25-1610 Motor power HP 7.5 Overall dimensions mm. 3100x1000x1300h Weight approx. Kg. 2300 COMPLETE WITH: - MARIO PINTO self-centering chuck diam. 270 mm. with 3+3+3 d.g. jaws - RAPID type C universal turret with 5 tool holders - Star stop - Fixed steady rest - Follow steady rest
Working
Revised
CE compliant
