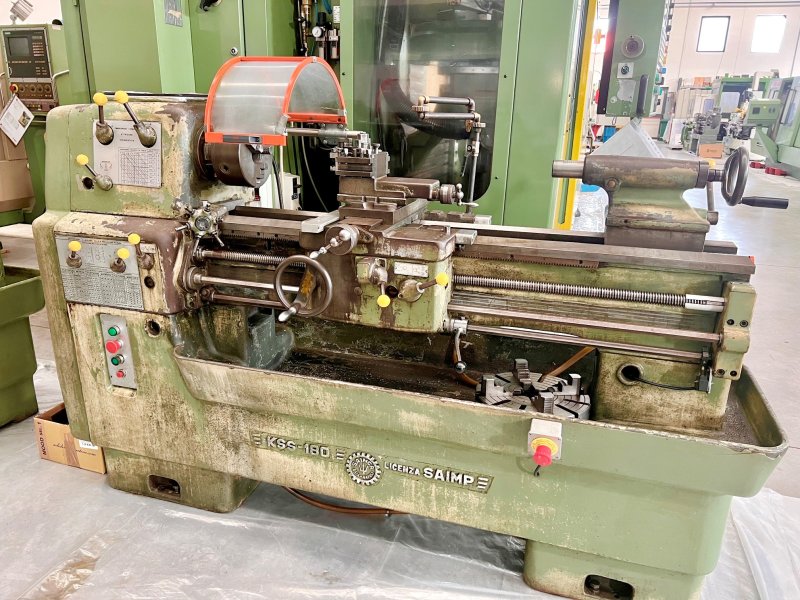

SAIMP KS 180
- Condition: used
- published: 28/08/2026
- 26IND49519
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description
Center height above bed 180 mm
Distance between centers 1000 mm
Maximum turning diameter above bed 360 mm
Maximum turning diameter above carriage 200 mm
Spindle bore 43 mm
Spindle connection: nut
Tail ...
Center height above bed 180 mm
Distance between centers 1000 mm
Maximum turning diameter above bed 360 mm
Maximum turning diameter above carriage 200 mm
Spindle bore 43 mm
Spindle connection: nut
Tailstock taper 3 cm
Spindle speed 45-1500 rpm
Motor power 3 HP
Overall dimensions 1900 x 720 x 1300 mm
Weight: approximately 1500 kg
COMPLETE WITH:
- GFB self-centering chuck, diam. 190 mm, 3+3 jaws, 1/4" (310 mm)
- 4-jaw independent chuck, diam. 310 mm
- Type A universal turret with 4 tool holders
- CM3 tailstock
