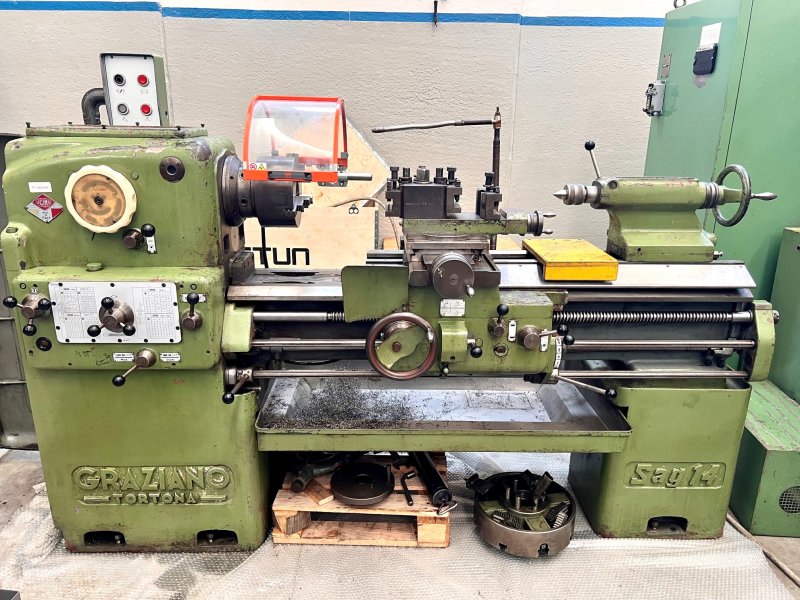

GRAZIANO SAG 14x1000
- Condition: used
- published: 28/08/2026
- 26IND49520
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 0/250 mm
Description
Center height above bed: 180 mm
Distance between centers: 1000 mm
Maximum turning diameter above bed: 360 mm
Maximum turning diameter above slide: 220 mm
Spindle bore: 100 mm 51
5" CAMLOCK spindle mou ...
Center height above bed: 180 mm
Distance between centers: 1000 mm
Maximum turning diameter above bed: 360 mm
Maximum turning diameter above slide: 220 mm
Spindle bore: 100 mm 51
5" CAMLOCK spindle mount
3 cm tailstock taper
50-1500 rpm spindle speed
5 HP motor power
Overall dimensions: 2300 x 800 x 1300 mm
Weight: approximately 1300 kg
COMPLETE WITH:
- MARIO PINTO self-centering chuck, diam. 200 mm, 3+3 jaws

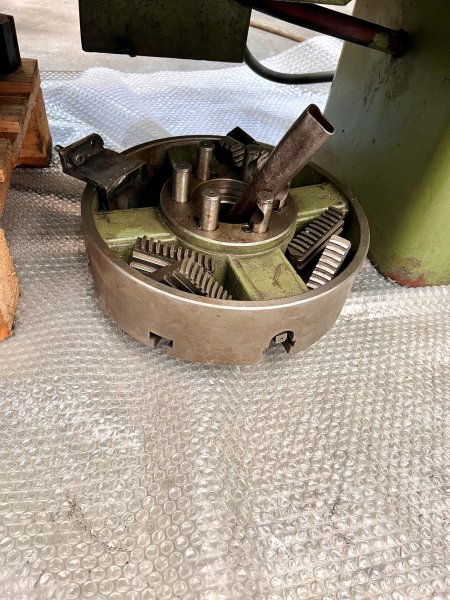

- 4-jaw independent chuck, diam. 315 mm

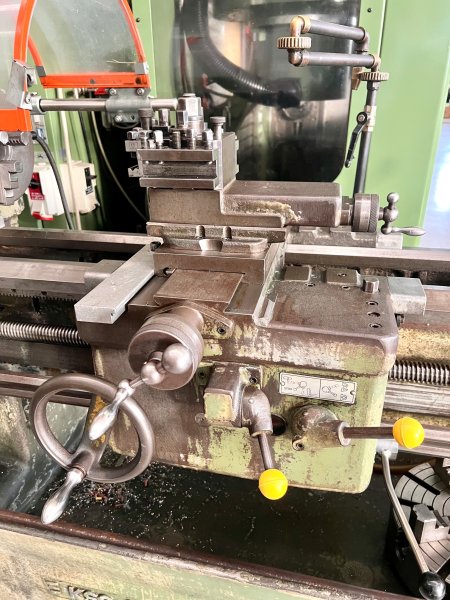

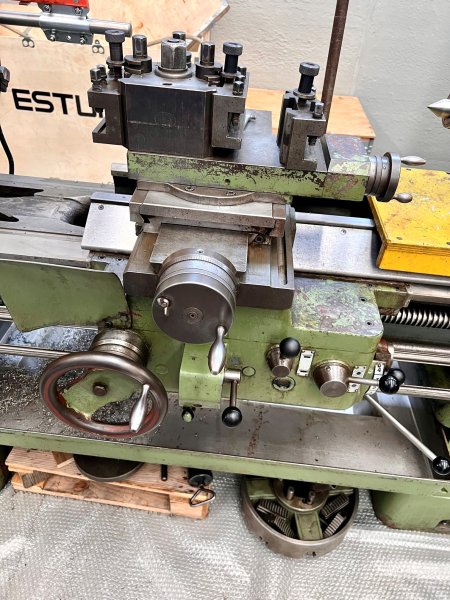

- Type B universal turret with 3 tool holders
- CM3 tailstock

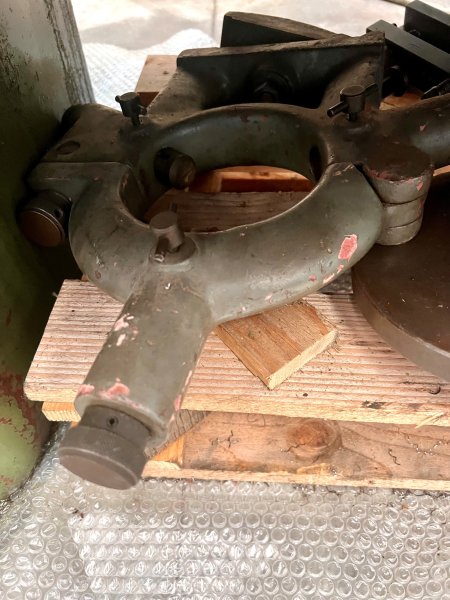

- Fixed steady rest
