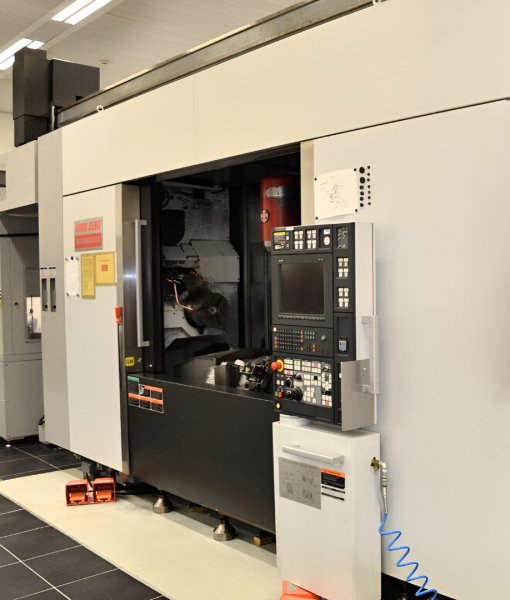

MORI SEIKI NT4250 DCG/1500 SZ 2008
- Condition: used
- published: 17/09/2026
- 26IND49552
Technical data
- Condition: used
- Year: 2008
Description

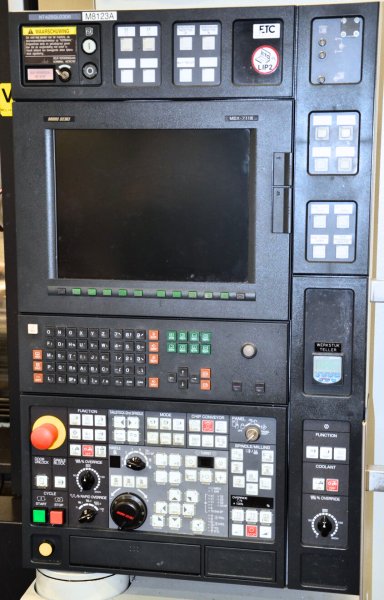

Numerical control: FS-31IA5 (MAPPS 3)
Capacity
Z-axis travel (mm): 1550 + 100
Turning length (mm): 1542
Swing diameter (mm): ø: 660
Swing diameter (mm): ø: 730
Distance between spindle centers (mm): ...
Numerical control: FS-31IA5 (MAPPS 3)
Capacity
Z-axis travel (mm): 1550 + 100
Turning length (mm): 1542
Swing diameter (mm): ø: 660
Swing diameter (mm): ø: 730
Distance between spindle centers (mm): 1862
Turning diameter (mm): Lower turret: 350 mm
Bar capacity: 80/80 mm

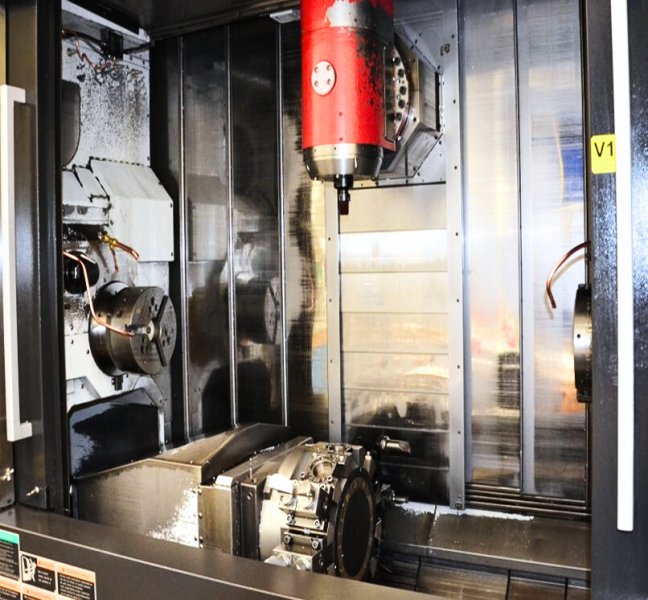

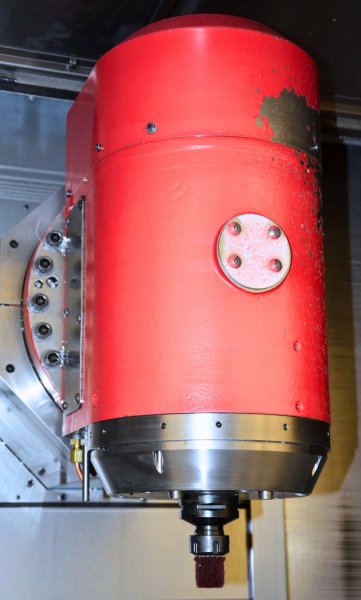

Turning-milling spindle
X-axis travel: 750 mm
Y-axis travel: ±210 mm
B-axis angle: ±120° (index 1°)
C-axis angle: 360° (0.001°)
Spindle rotation speed: 12,000 rpm
Spindle power: 18.5 kW (30 min/continuous)
Tool magazine
Number of positions: 100
Tool holder type: CAPTO C6
Maximum tool length: 400 mm
Maximum tool diameter: 140 mm
Maximum tool weight: 8 kg
Lower turret
X-axis travel: 195 mm
Z-axis travel: 1525 mm
Number of tool positions: 12
Driven tools: 6000 rpm
Milling function: PROVIDED

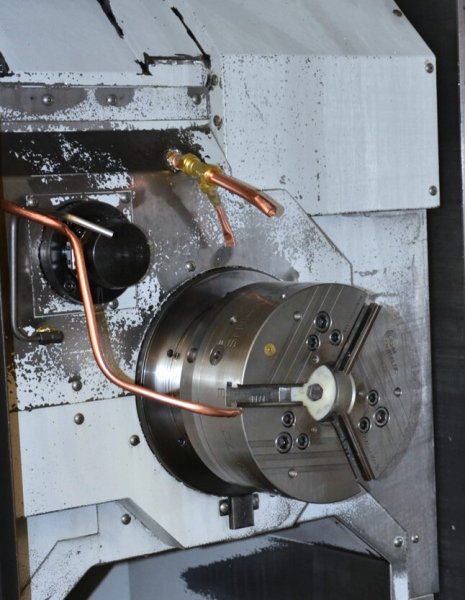

Main spindle
Spindle rotation speed rpm: 4000
Spindle power kW: 22 / 18.5 (30 min/continuous)
Chip diameter Bar diameter (mm): ø: 91

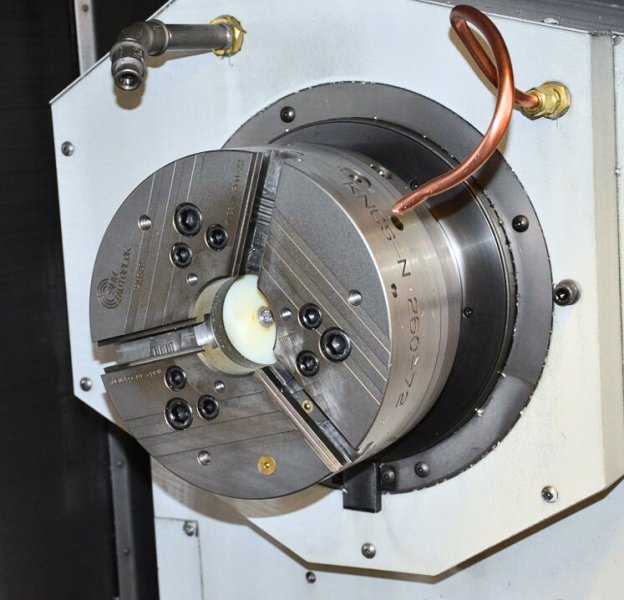

Counter spindle
Spindle rotation speed (rpm): 4000
Spindle power (kW): 22 / 18.5 (30 min/cont.)
Bar pitch diameter (??): 91

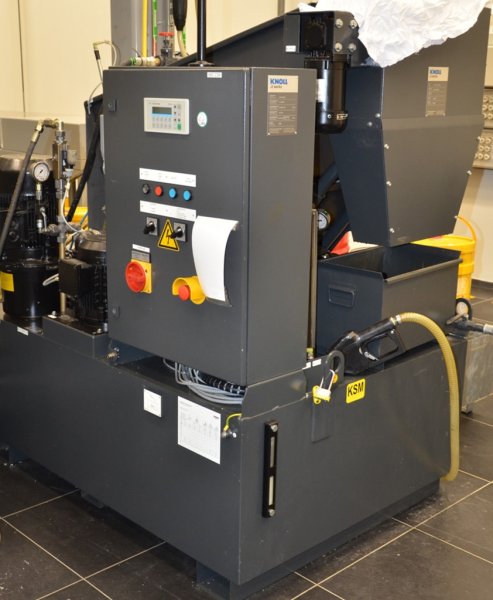

Lubrication and cooling system
High pressure (bar): 28
Equipment
Electronic handwheel
Chip conveyor
Tool integrity monitor
Work area light
External air blower
Coolant gun
Internal coolant supply
Measuring probe

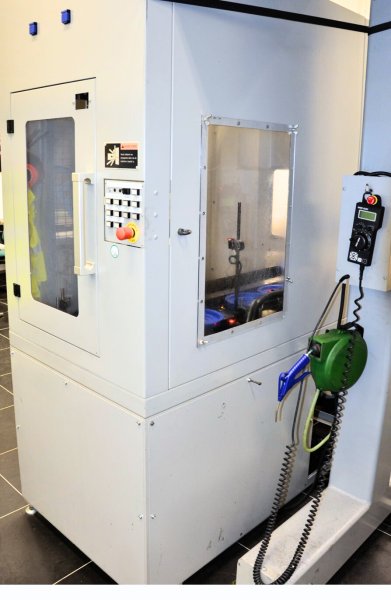

Gantry loader LG-10 10 pallets, 10 kg per pallet, pieces Ø200 x 150 mm (width x height)
Dimensions and weight of the main machine:
Length: 6800 mm
Width: 3200 mm
Height: 2900 mm
Weight: 25,600 kg
