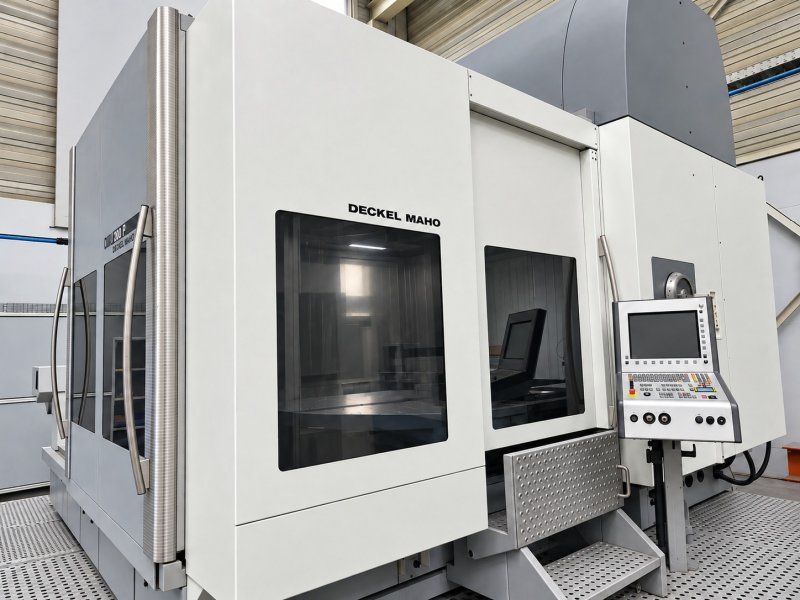

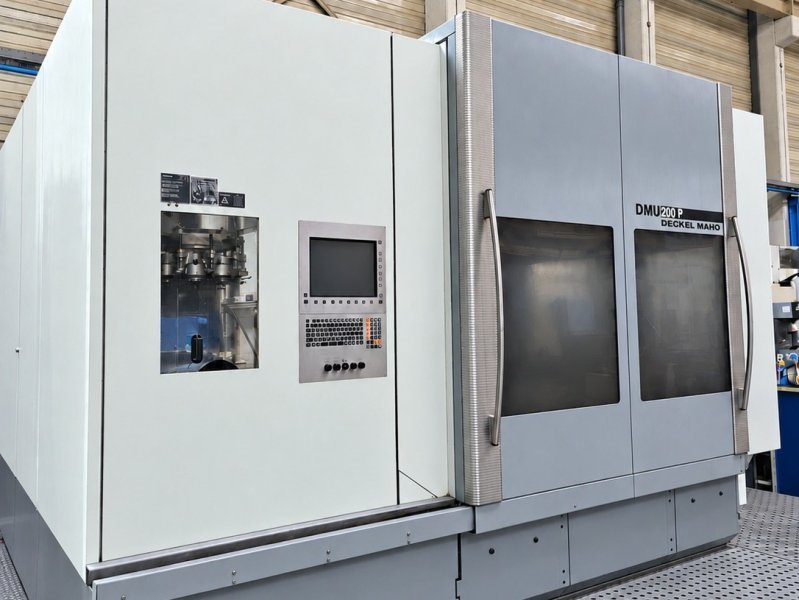

DECKEL MAHO DMU 200 P 2002
- Condition: used
- published: 15/09/2026
- 26IND49620
Technical data
- Condition: used
- Year: 2002
Description

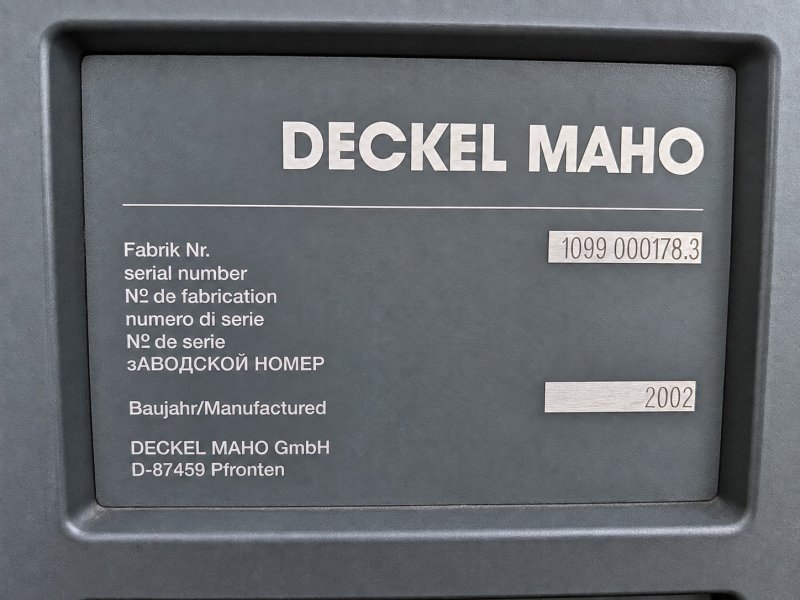

Year of manufacture: 2002

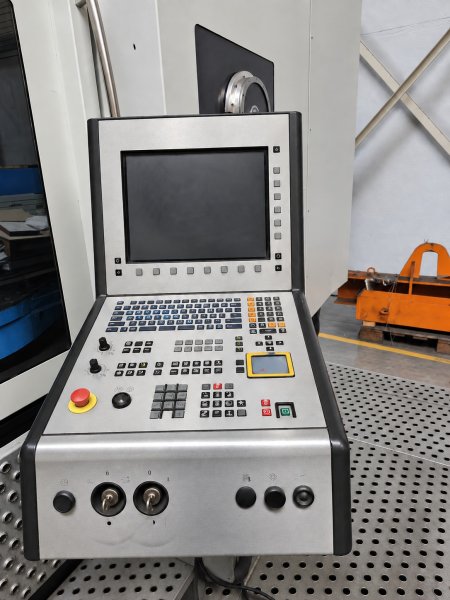

Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 1800
Y-axis travel mm: 2000
Z-axis travel mm: 1100
C-axis angle: 360º (0.001)
B-axis angle: -7/+187º
Feed rate ...
Year of manufacture: 2002
Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 1800
Y-axis travel mm: 2000
Z-axis travel mm: 1100
C-axis angle: 360º (0.001)
B-axis angle: -7/+187º
Feed rate m/min: 60/40/40
Rapid feed m/min: 60/40/40

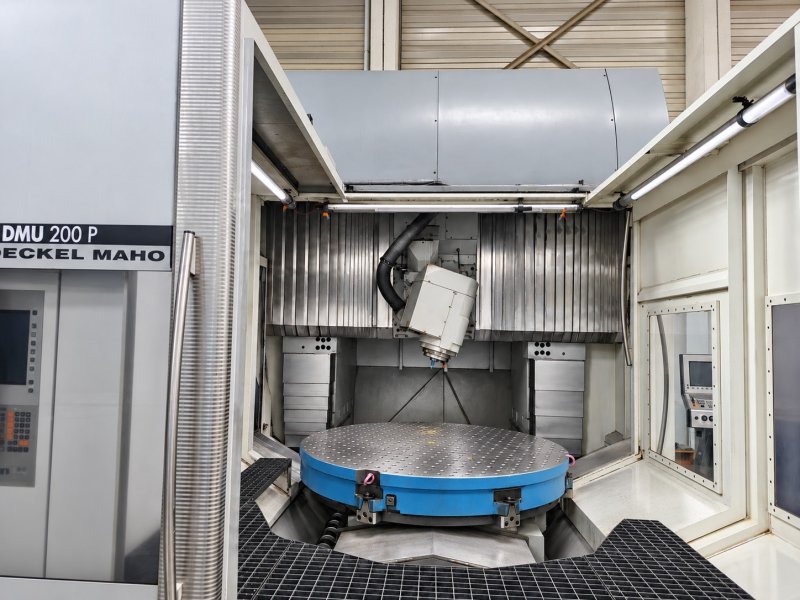

NC milling/turning table:
Number of pallets: 1
Table dimensions mm: Ø1700x1400
Maximum workpiece weight kg: 5000
Table rotation speed rpm: 200
Spindle
Spindle rotation speed rpm: 10,000
Spindle power kW: 44/32 (40% ED/cont)
Maximum torque Nm: 288/187 (40/100% ED)

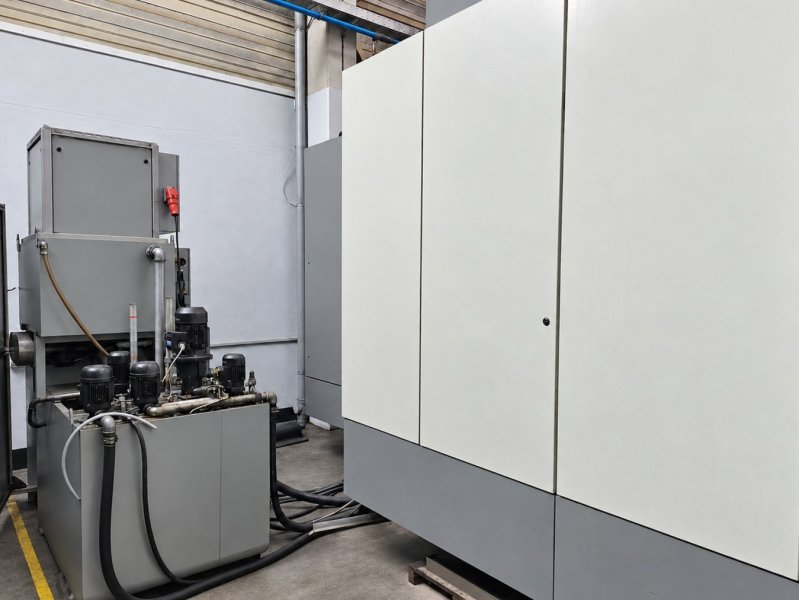

Coolant
Coolant via spindle center bar: 40
Tank capacity liters: 980

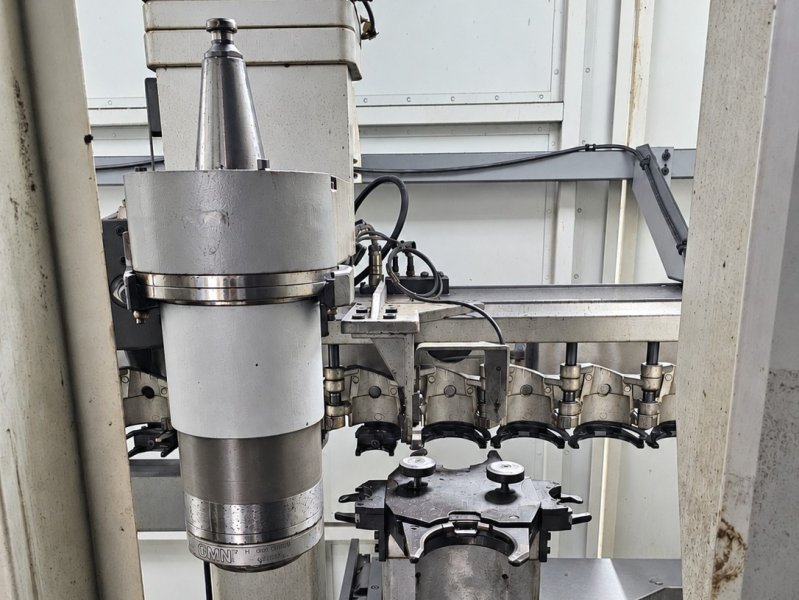

Tool magazine
SK 50 tool holder
Tool magazine positions: 60
Double gripper tool changer
Tool change time, chip to chip: 13.5 s
Equipment
Electronic handwheel
Chip conveyor

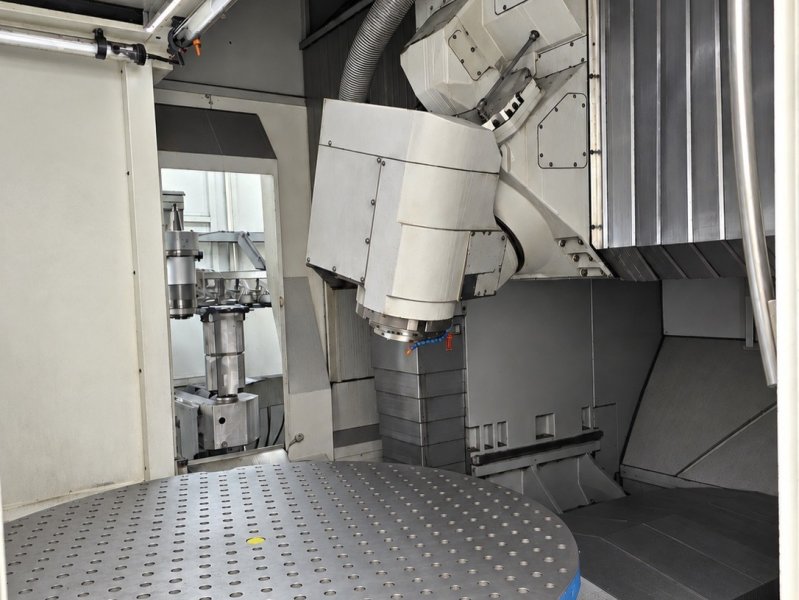

Fixed bed with integrated rotary table (4th axis)

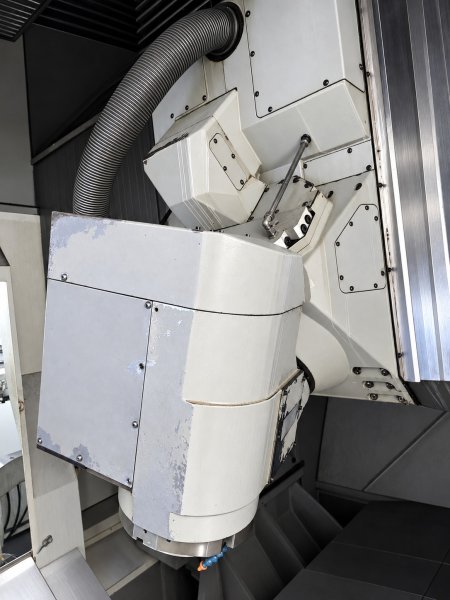

Rotating head
Infrared probe
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Wash gun
4 modes Operating
Airflow through the spindle activated by the M function
Precision package
Messenger V4
Coolant temperature regulation

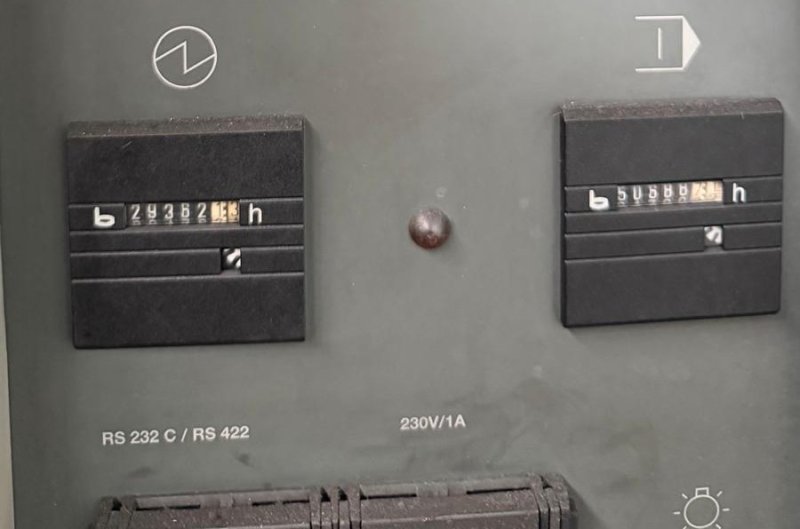

Working time
Powered: 129,359
Working spindle: 50,888
Rated power kVA: 86
Main machine dimensions / weight
Length mm: 7,900
Width mm: 8,800
Height mm: 4,174
