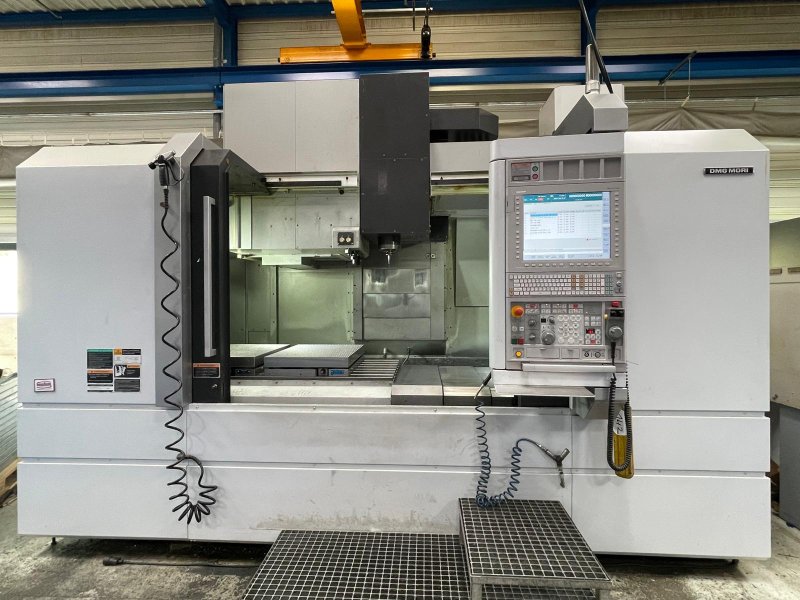

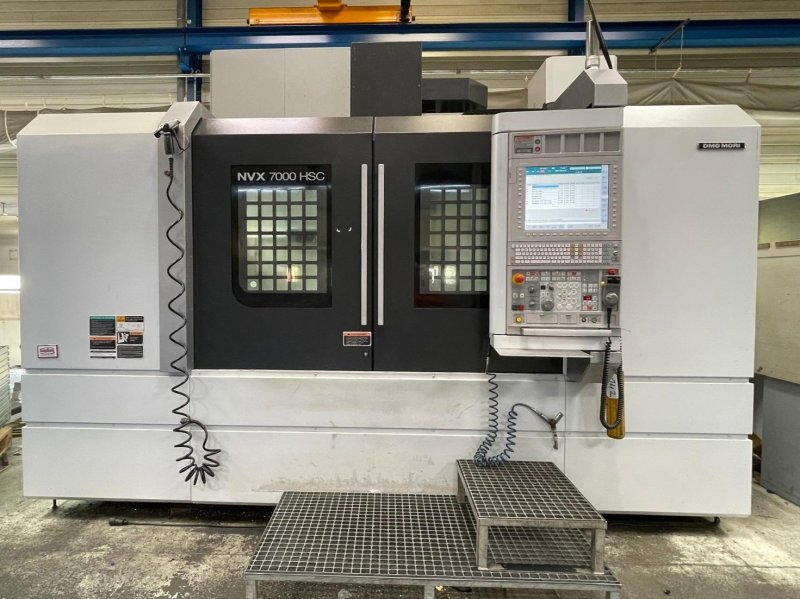

DMG MORI NVX7000/40 2019
- Condition: used
- published: 16/09/2026
- 26IND49621
Technical data
- Condition: used
- Year: 2019
- X-axis travel: 1001/2000 mm
Description
Year of manufacture: 2019

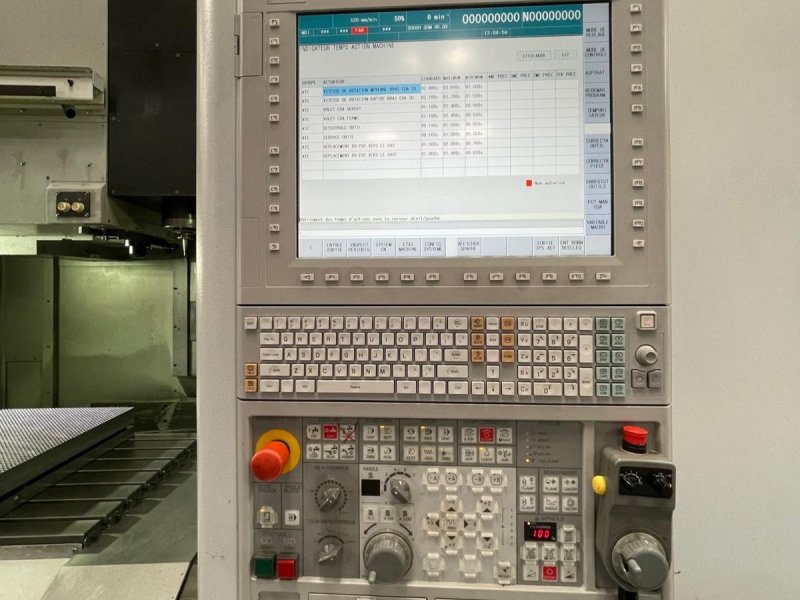

Numerical control: FS-31iB (MAPPS IVB)
Axes
X-axis travel mm: 1540
Y-axis travel mm: 760
Z-axis travel mm: 660
Rapid feed m/min: 20

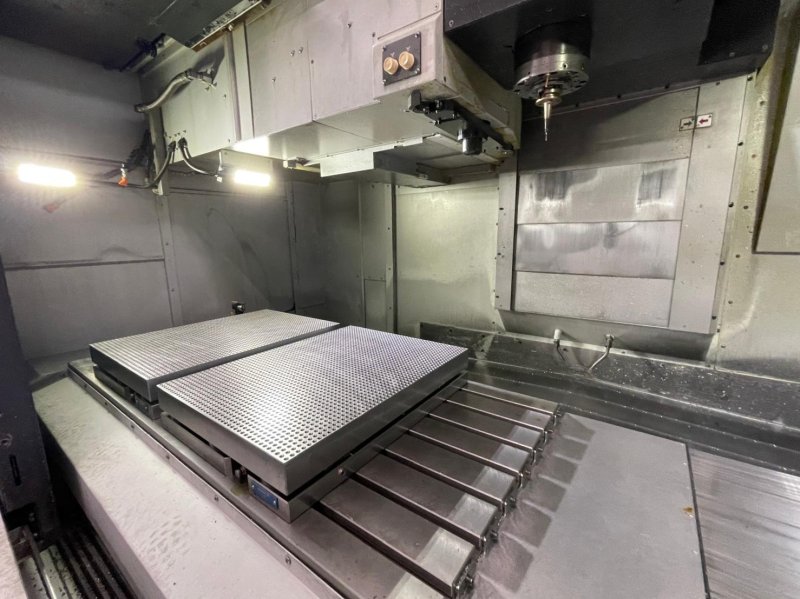

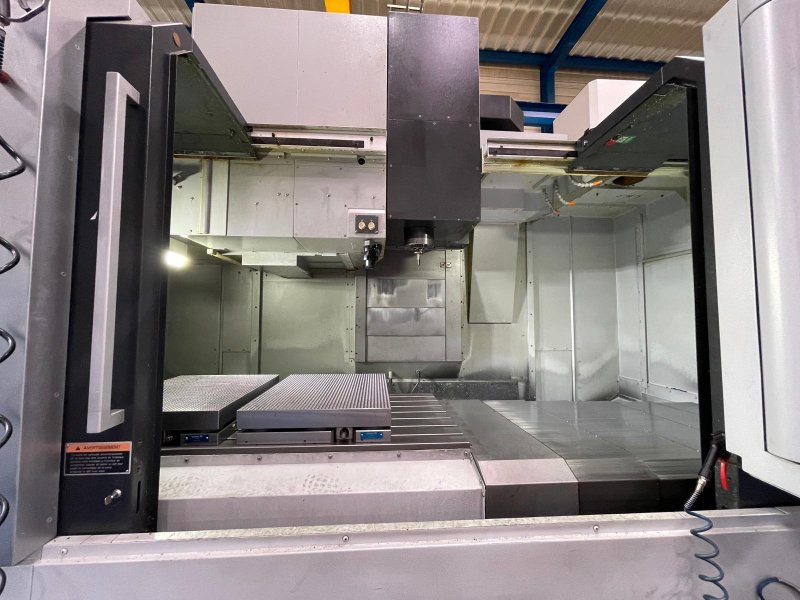

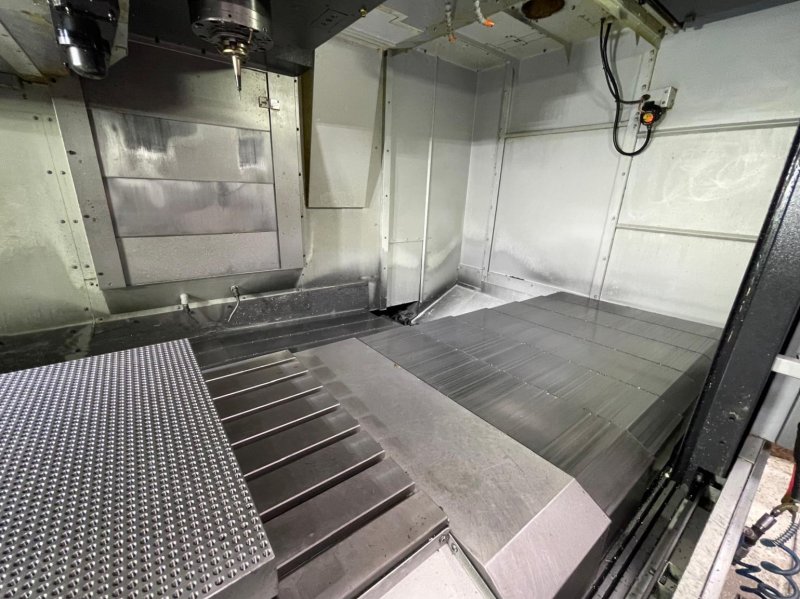

Working area
Table dimensions mm: 1700x760 ...
Year of manufacture: 2019
Numerical control: FS-31iB (MAPPS IVB)
Axes
X-axis travel mm: 1540
Y-axis travel mm: 760
Z-axis travel mm: 660
Rapid feed m/min: 20
Working area
Table dimensions mm: 1700x760
Maximum workpiece weight kg: 2000

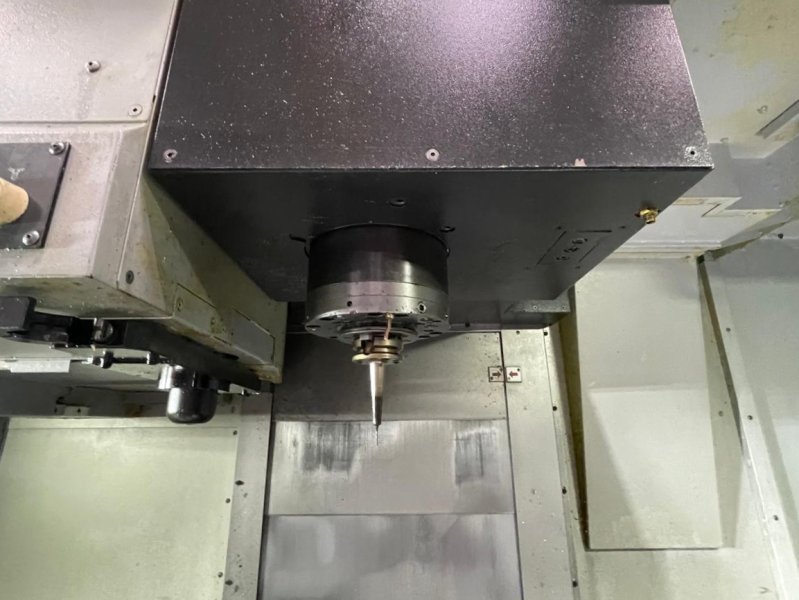

Spindle
Spindle rotation speed rpm: 20,000
Spindle power kW: 18.5/15/11 (10 min./30 min./cont.)
Maximum torque Nm: 81 (10% ED)
Coolant
Coolant via spindle center bar: 70

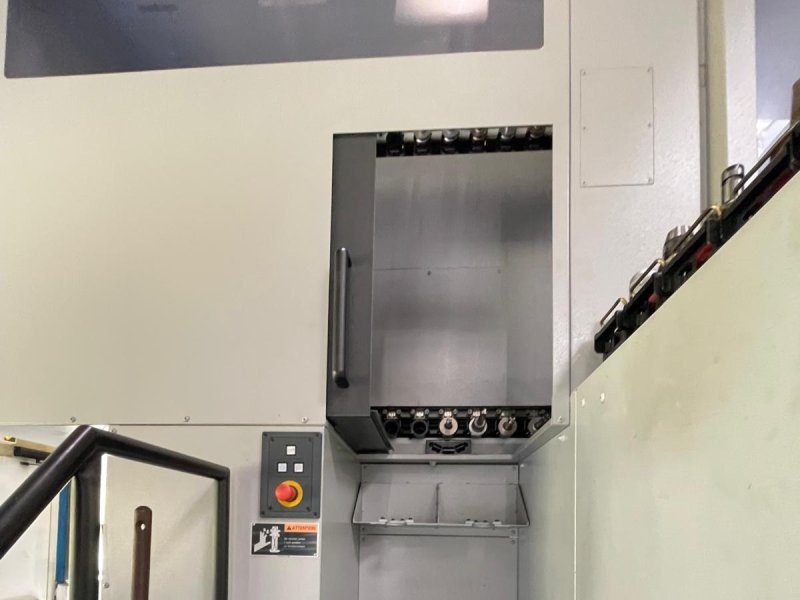

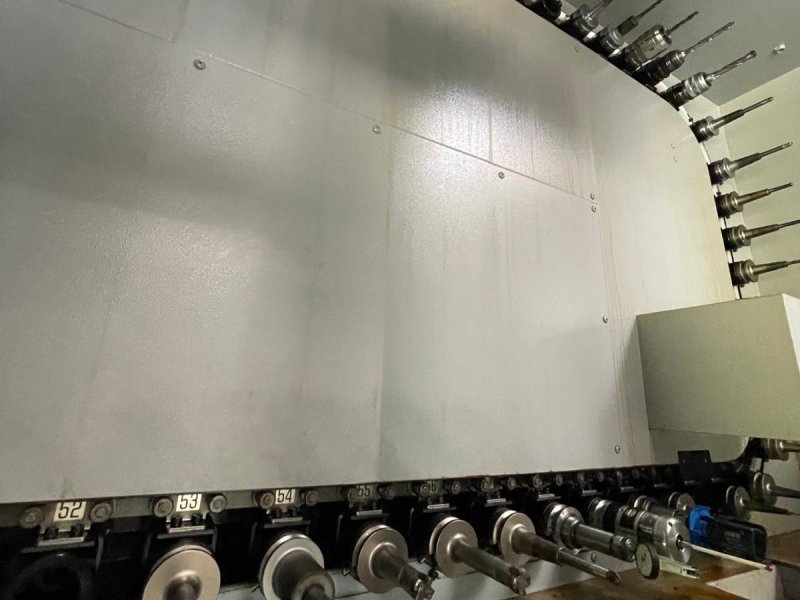

Tool magazine
BT tool holder 40
Tool magazine positions: 60
With adjacent tool positions free: 125 mm
With adjacent tool positions occupied: 95 mm
Maximum tool length: 450 mm
Maximum tool weight: 12 kg
Tool change time: 2.1 s
Equipment
Electronic handwheel
Internal cooling lubricant supply (via center)
Wash gun
Status indicator light
Presetting, tool control arm
Oil mist filter
Heat compensator
Program restart
Paper band filter
Working time
Powered: 35,557
Working spindle: 27,278
Rated power kVA: 45

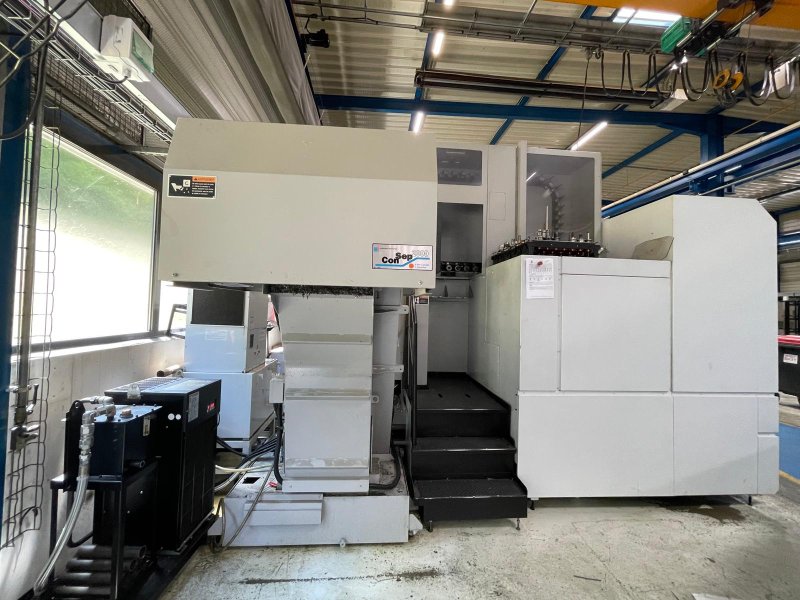

Main machine dimensions / weight
Length: mm 3644
Width mm: 4280
Height mm: 3167
Weight kg: 12560
