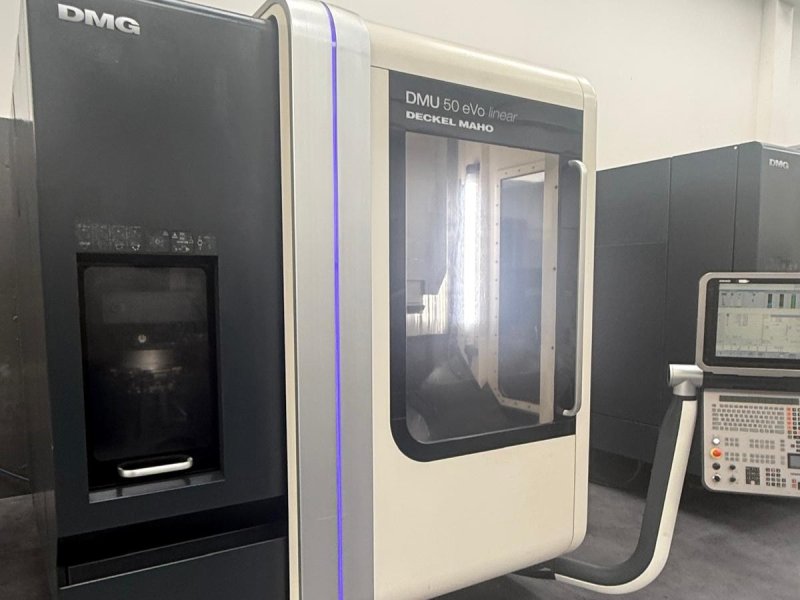

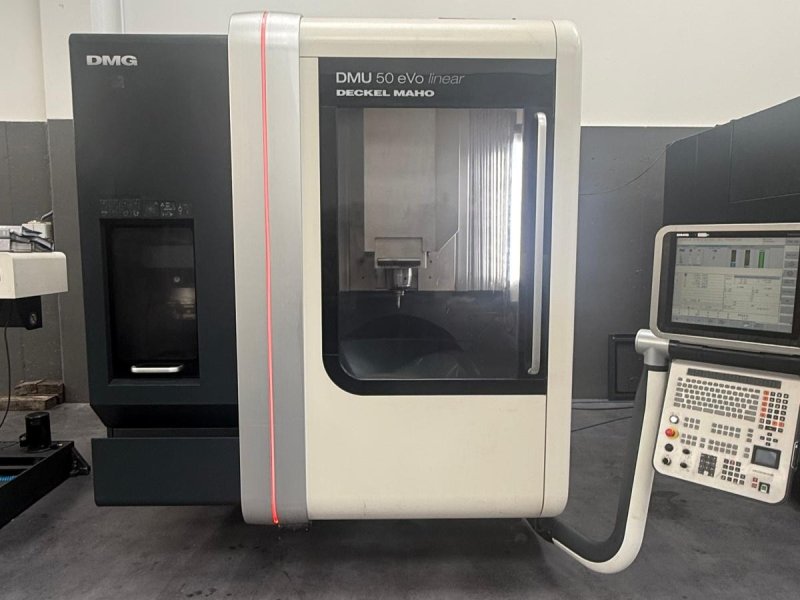

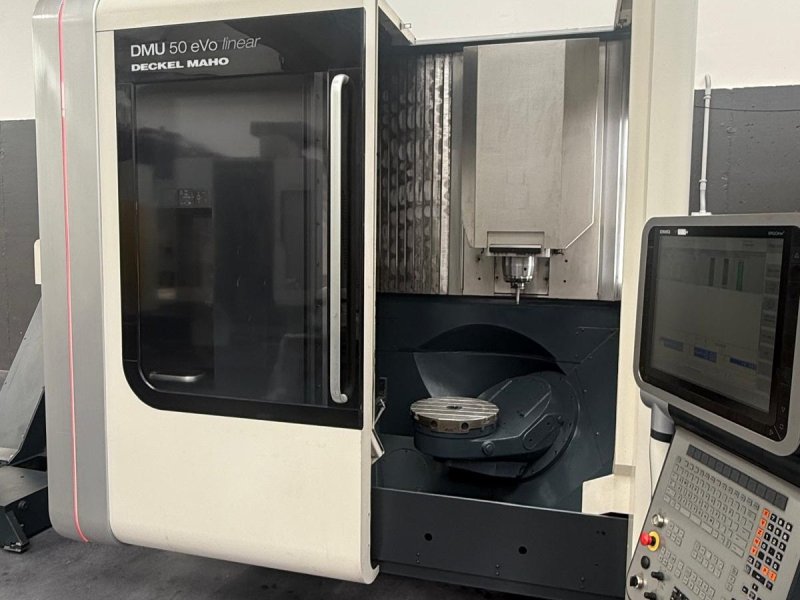

DECKEL MAHO DMU 50 Evo Linear 2011
- Condition: used
- published: 18/09/2026
- 26IND49627
Technical data
- Condition: used
- Year: 2011
- X-axis travel: 0/1000 mm
Description
Year of manufacture: 2011

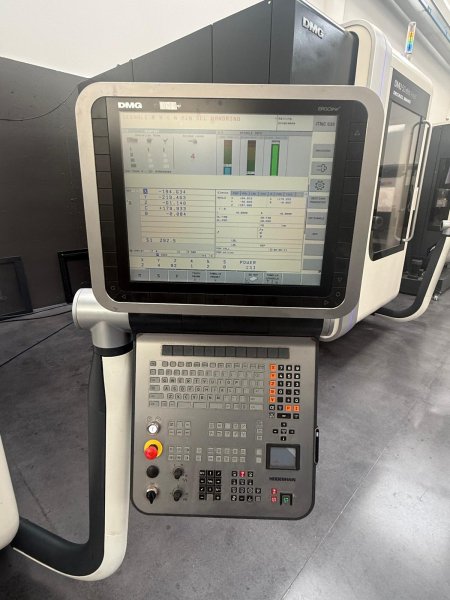

Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 500
Y-axis travel mm: 450
Z-axis travel mm: 400
C-axis angle: 360° (0.001)
B-axis angle: 0°/108° (0.001)
Rapi ...
Year of manufacture: 2011
Numerical control: Heidenhain iTNC 530
Axes
X-axis travel mm: 500
Y-axis travel mm: 450
Z-axis travel mm: 400
C-axis angle: 360° (0.001)
B-axis angle: 0°/108° (0.001)
Rapid traverse m/min: 80/50/50

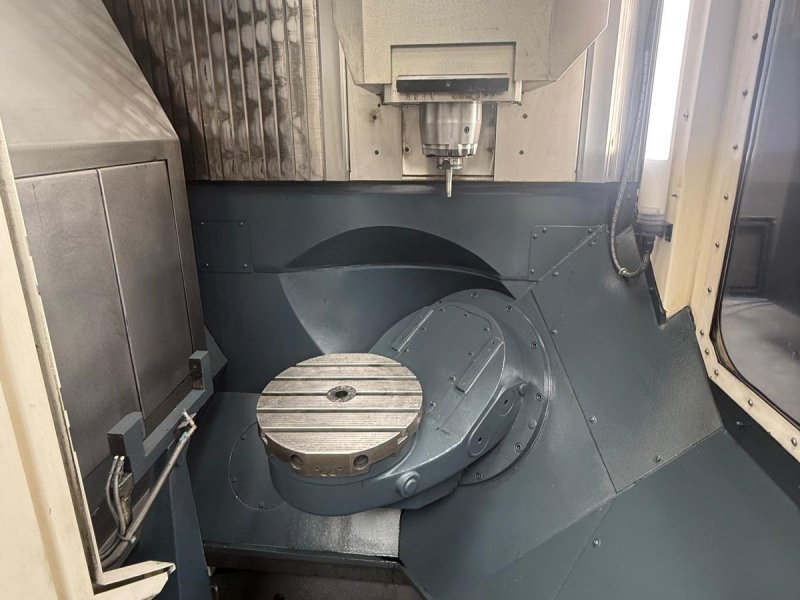

NC milling/turning table:
Table size mm: Ø390
Maximum workpiece size mm: Ø630x500
Maximum workpiece weight kg: 200

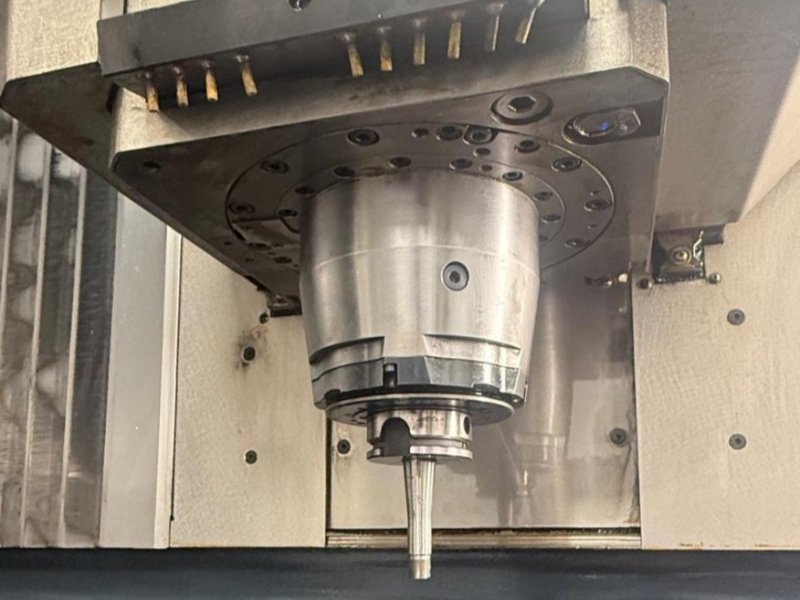

Spindle
Spindle rotation speed rpm: 18,000
Spindle power kW: 35/25 (40% ED/cont)
Maximum torque Nm: 130/87
Tool magazine
HSK-A 63 tool holder
Tool magazine positions: 30
With adjacent tool positions free: 130 mm
With adjacent tool positions occupied: 80 mm
Maximum tool length: 300 mm
Tool change time, chip-to-chip: 5 s
Equipment

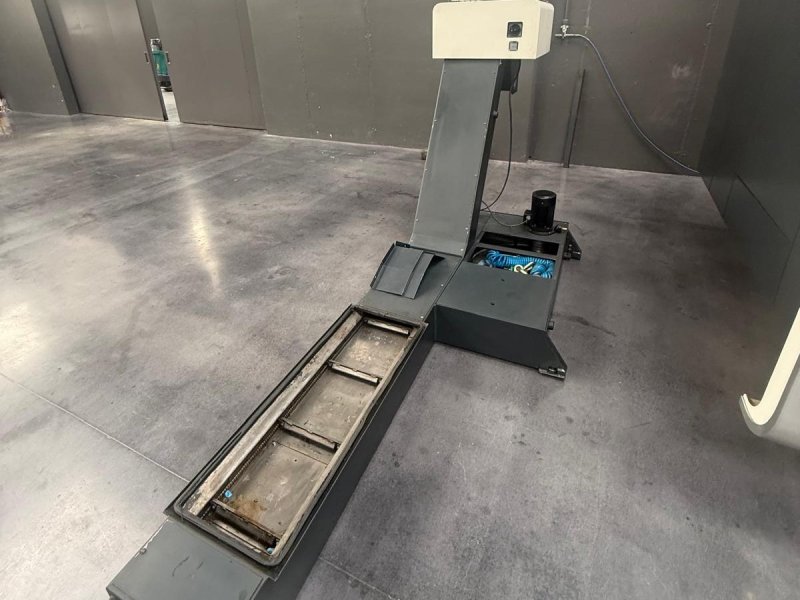

Chip conveyor

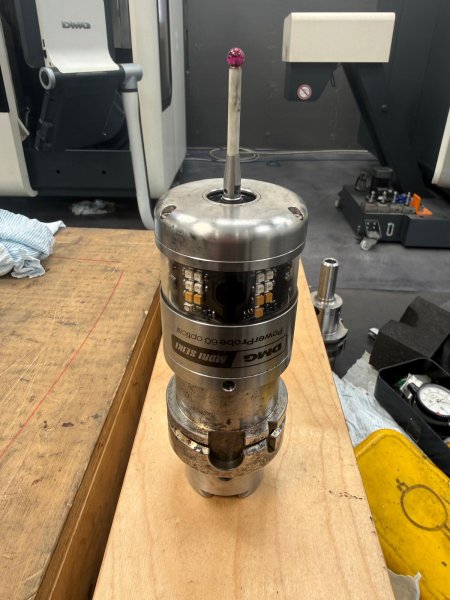

Infrared probe
Wash gun
Air flow through the spindle activated by the M function
Status indicator light

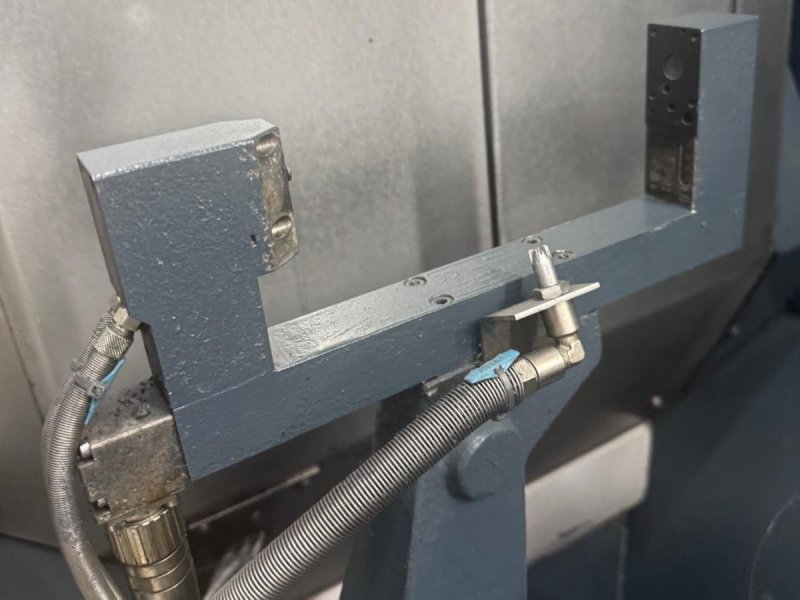

Laser measurement of tool diameter and length
Programmable coolant flow
Heat compensator
Direct XYZ measuring system
Electrical cabinet active cooling unit
Oil skimmer
Provision for internal cooling (40/80 bar)
RENISHAW Measuring Probe
Automatic Work Area Door
Working Time
Powered: 43,774
Working Spindle: 26,476
Rated Power kVA: 48
Main Machine Dimensions / Weight
Length mm: 4,780
Width mm: 4,410
Height mm: 2,590
Weight kg: 5,900
