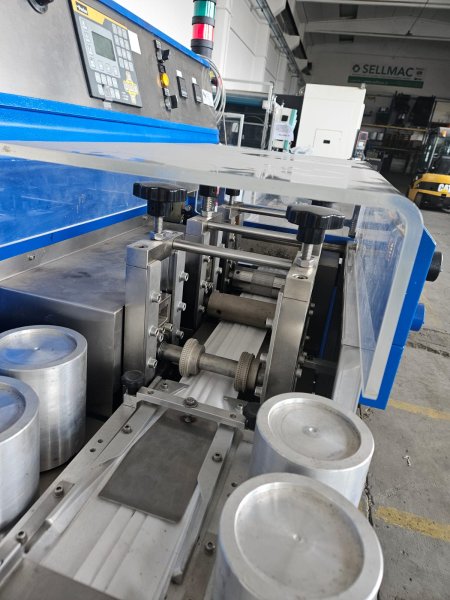

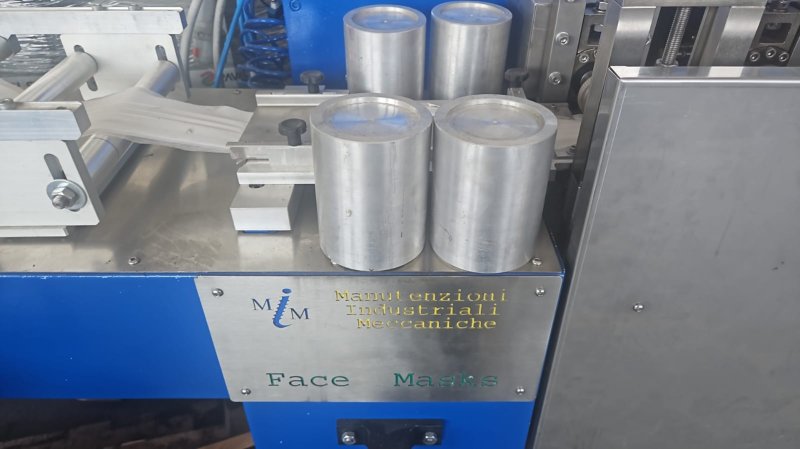

M.I.M. SRL FACE MASKS 2020
- Condition: used
- published: 21/09/2026
- 26IND49633
Technical data
- Condition: used
- Year: 2020
Description
YEAR 2020

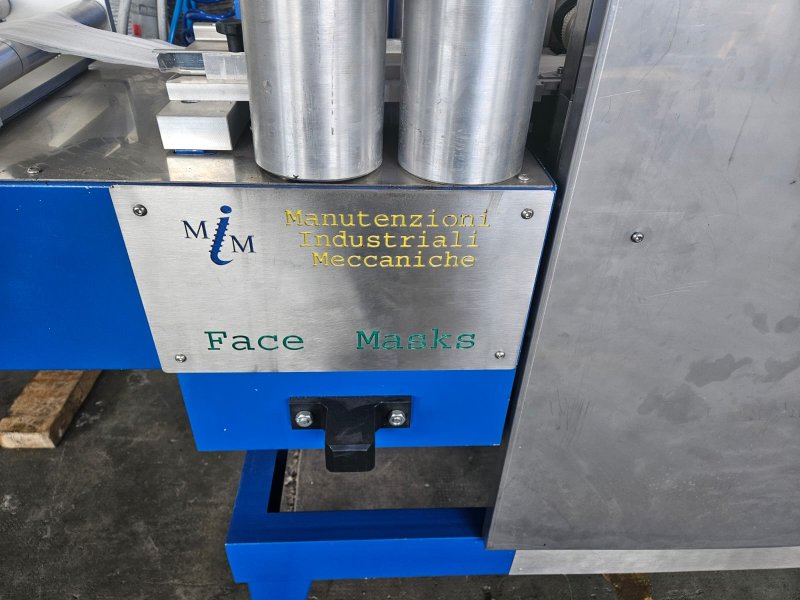

MANUFACTURER: INDUSTRIAL MECHANICAL MAINTENANCE

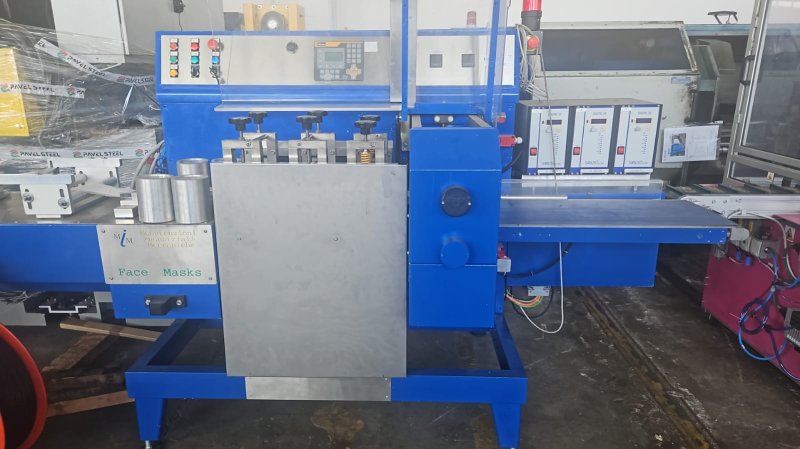

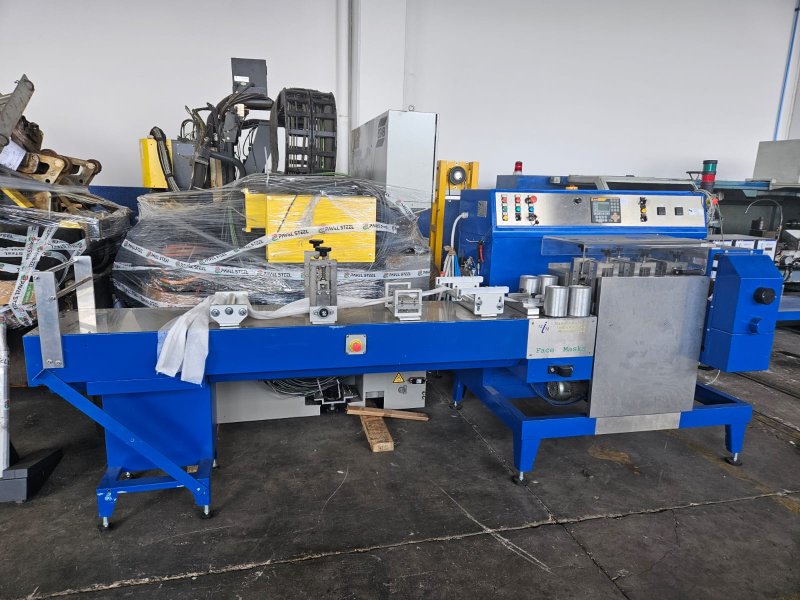

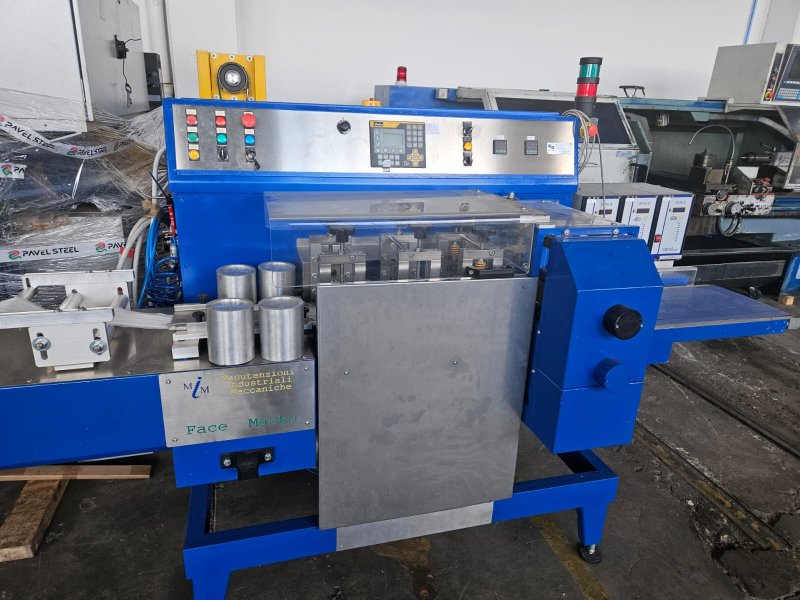

FACE MASKS MODEL
Features

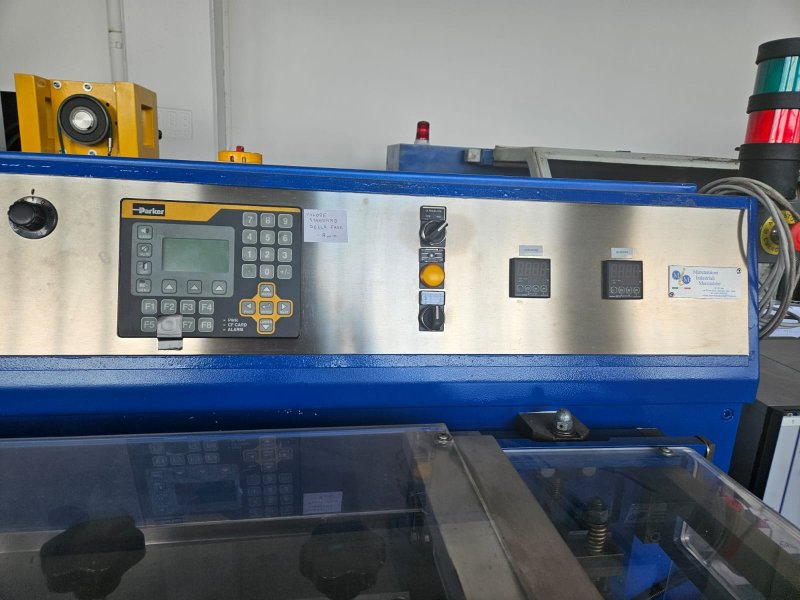

Control logic: PLC
Motorization: 1 brushless motor with gear reducer – 1 three-phase asynchronous moto ...
YEAR 2020
MANUFACTURER: INDUSTRIAL MECHANICAL MAINTENANCE
FACE MASKS MODEL
Features
Control logic: PLC
Motorization: 1 brushless motor with gear reducer – 1 three-phase asynchronous motor with gear reducer – 1 variator
Structure: painted steel
Compressed air pressure: 6 bar
Speed: 70 pcs/min

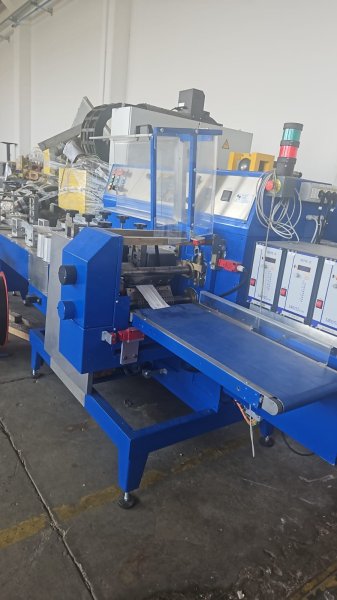

Belt: blue polyurethane, food-safe
Belt centering: mechanical
Belt tensioning: mechanical
Feeding table length: 2.5 m
Hemmer: fixed

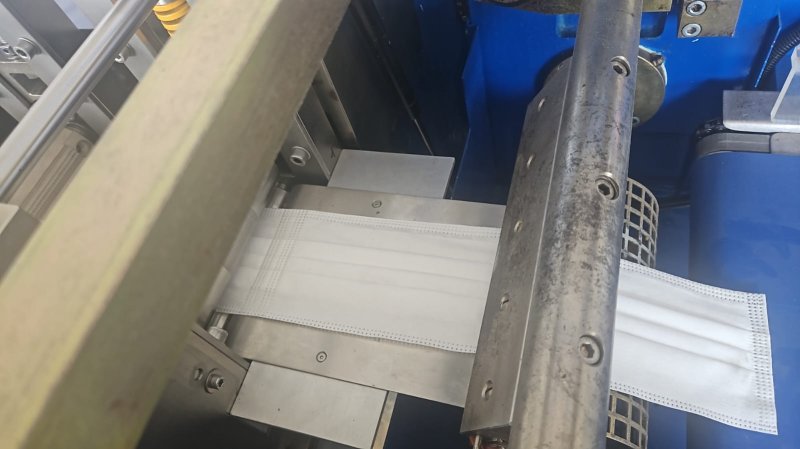

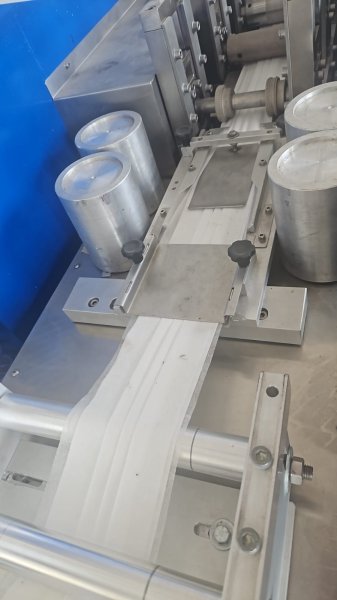

Ultrasonic sealing rollers: 2
Cutting jaws: 1 pair
Jaw width: 160 mm
Jaw center distance: 200 mm mm
Bobbin support: triple
Max. fabric dimensions: Ø 700 x width 250 mm
Electricity: 380 Hz 50 Volts
Power consumption: 14.5 kW
Machine supplied with manuals and CE declaration of conformity
All technical data shown is indicative and subject to change without notice and therefore should not be considered binding.
CE compliant
