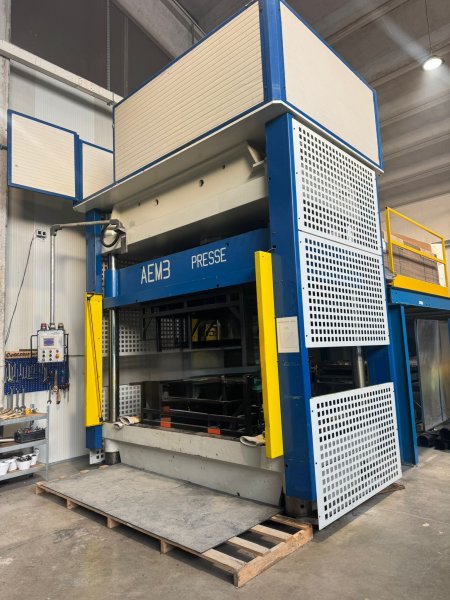

AEM3 300 TON 2002
- Condition: used
- published: 24/09/2026
- 26IND49637
Technical data
- Condition: used
- Year: 2002
- Race : > 800 mm
- Power : 0/500 ton
- Table size x : > 2000 mm
- Table size y : 1001/1500 mm
Description

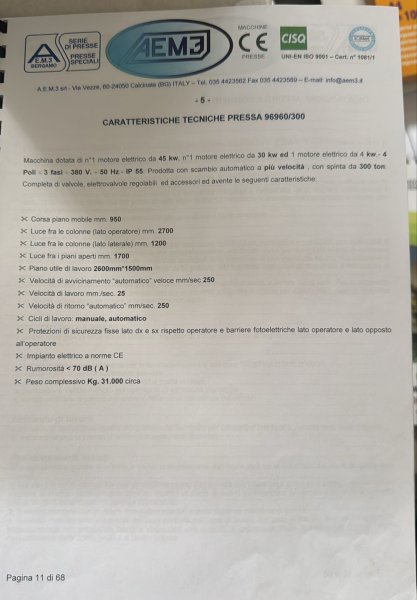

AEM3 brand
Machine equipped with one 45 kW electric motor, one 30 kW electric motor
and one 4 kW electric motor.
4-pole - 3-phase - 380 V - 50 Hz - IP 55.
Manufactured with multi-speed automatic cha ...
AEM3 brand
Machine equipped with one 45 kW electric motor, one 30 kW electric motor
and one 4 kW electric motor.
4-pole - 3-phase - 380 V - 50 Hz - IP 55.
Manufactured with multi-speed automatic changeover, with a 300 ton thrust.
Complete with valves, adjustable solenoid valves, and accessories, and having the following characteristics:
* Moving table stroke: 950 mm
* Clearance between columns (operator side): 2700 mm
* Clearance between columns (lateral side): 1200 mm
* Clearance between open tables: 1700 mm
* Usable work surface: 2600 mm x 1500 mm
* "Automatic" fast approach speed: 250 mm/s
* Working speed: 250 mm/s 25
* "Automatic" return speed: 250 mm/sec
* Work cycles: manual, automatic
* Fixed safety guards on the right and left sides of the operator and photoelectric barriers on the operator side and the side opposite
the operator
* CE-compliant electrical system
* Noise level < 70 dB (A)
* Total weight: approximately 31,000 kg
Machine in full working order
Can be seen in operation
Dismantling at buyer's expense
Working
Revised
CE compliant
