GIORIA ru/s 4000
- Condition: used
- published: 25/09/2026
- 26IND49640
Technical data
- Condition: used
- Year: undefined
- Distance between tips : > 2000 mm
Description

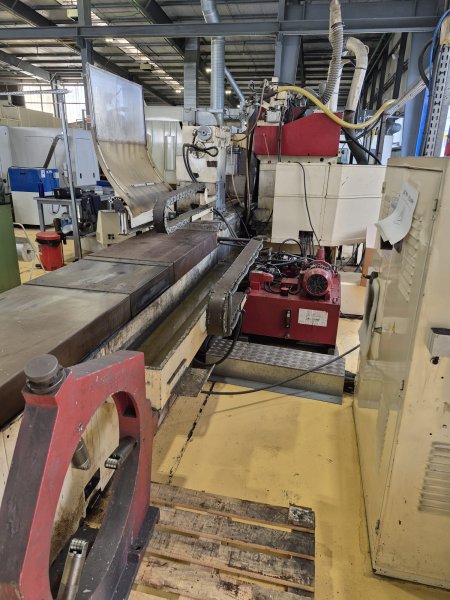

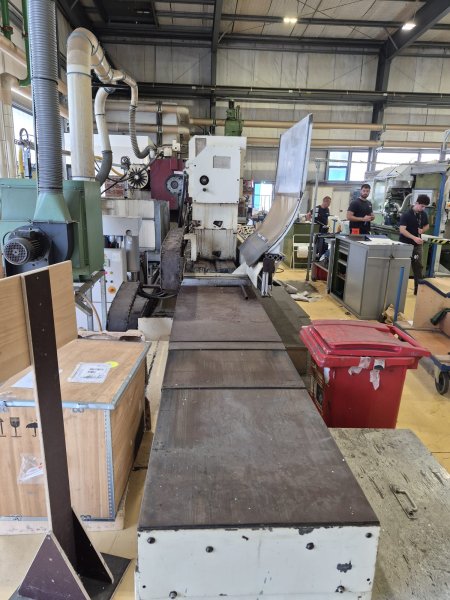

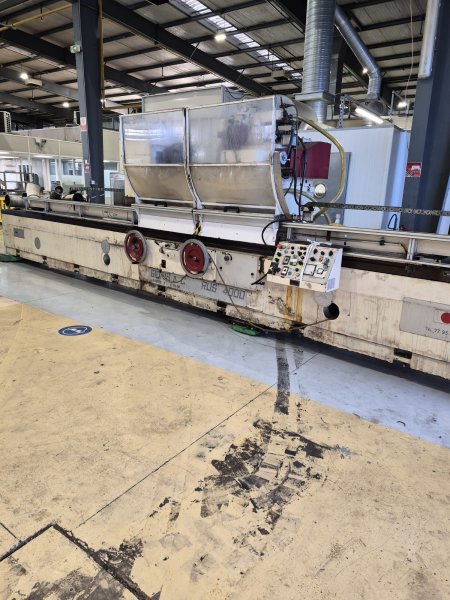

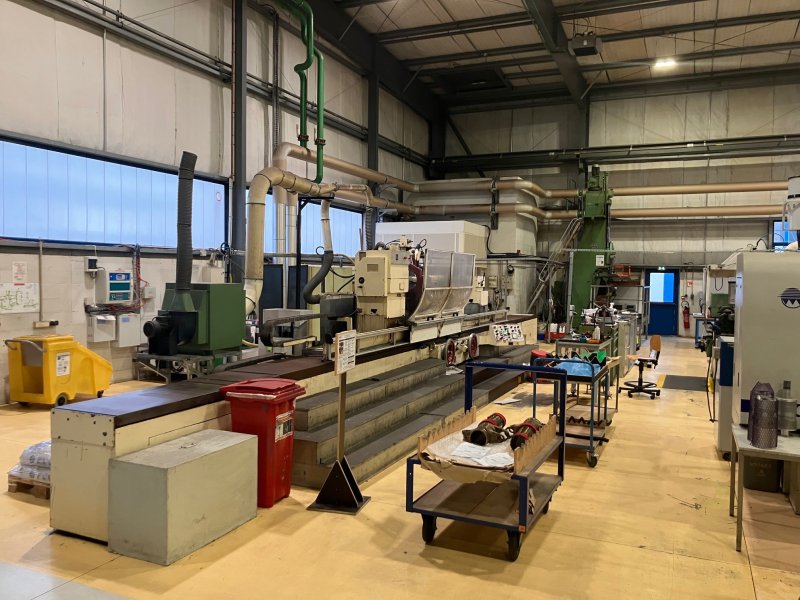

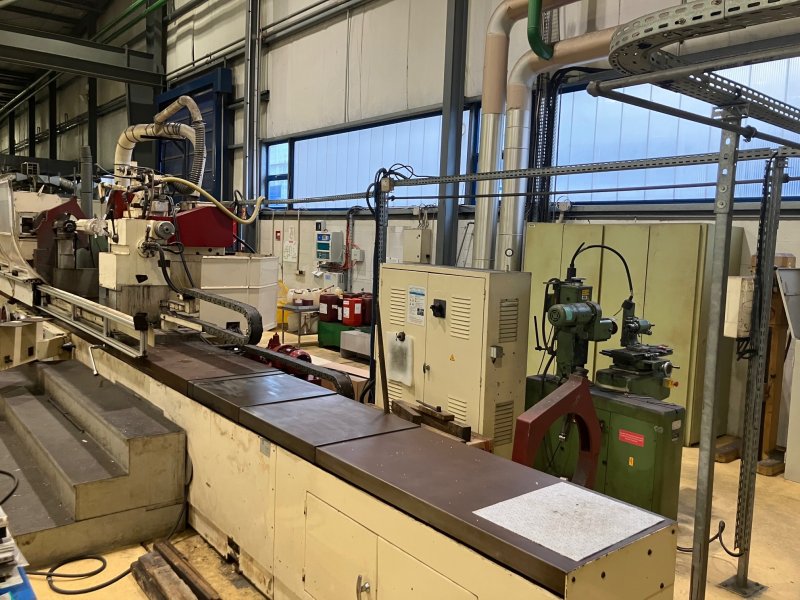

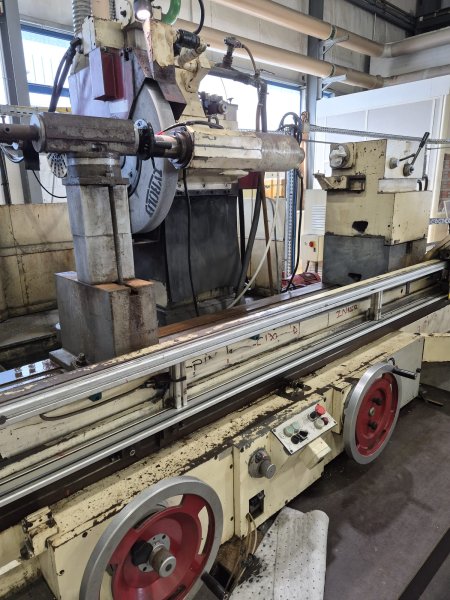

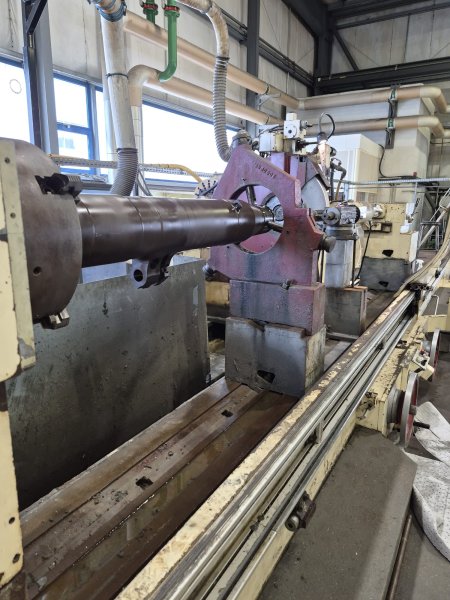

GIORIA RU/S 4000 UNIVERSAL GRINDING MACHINE
Height of centers: 750 mm.
Distance between centers: 4,000 mm.
Maximum rotation diameter: 1,490 mm.
Maximum external grinding diameter: 890 mm.
Load capacit ...
GIORIA RU/S 4000 UNIVERSAL GRINDING MACHINE
Height of centers: 750 mm.
Distance between centers: 4,000 mm.
Maximum rotation diameter: 1,490 mm.
Maximum external grinding diameter: 890 mm.
Load capacity between centers: 3,000 kg.
Maximum grinding wheel diameter: 750 mm.
Grinding wheel width: 100 mm.
Grinding wheel motor power: 25 kW.
Grinding wheel speed: 600 - 1,100 rpm.
Workhead speed: 30 - 270 rpm.
Total weight: 20,000 kg.
Year of construction/overhaul 1979/1992
Complete with:
- Internal grinding device with electric spindle, length 850 mm; min./max. grinding wheel diameter 60/200 mm.
- Self-centering chuck, diameter 400 mm.

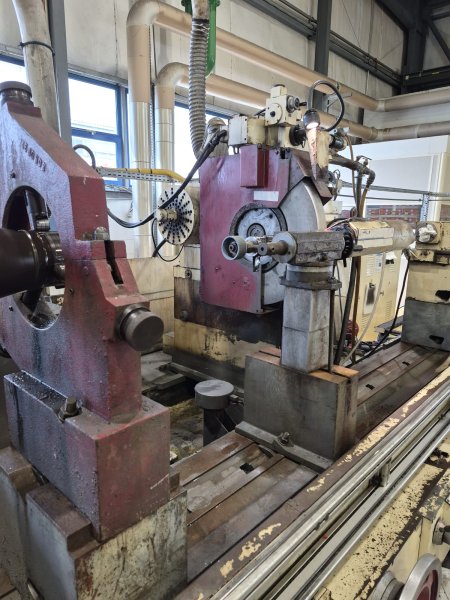

- 2 closed steady rests
- Tilting grinding head and table
- Diamond dressing tools
- Filter tank

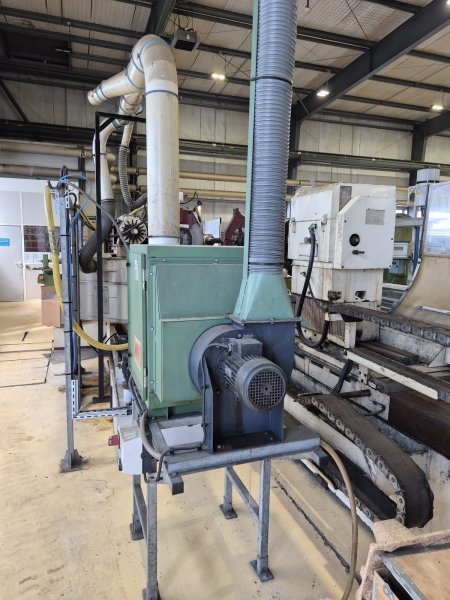

- Dust extractor
- Safety guards
