DORRIES CT 360 CNC 1975
- Condition: used
- published: 05/10/2026
- 26IND49653
Technical data
- Condition: used
- Year: 1975
- Max working diameter : > 3000 mm
- Max working height : > 2000 mm
Description

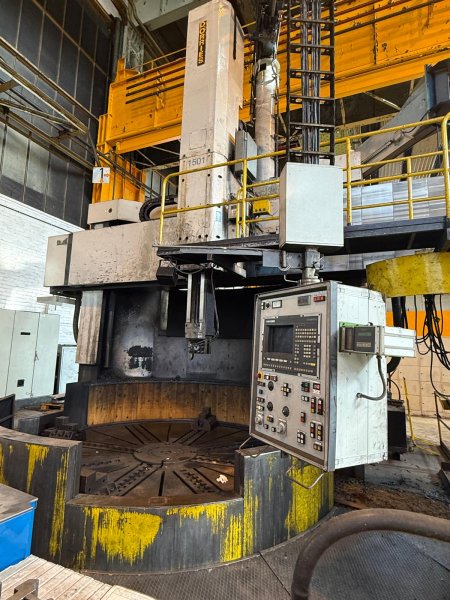

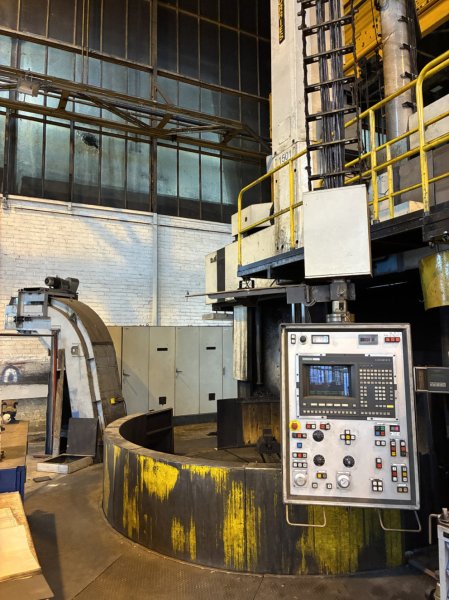

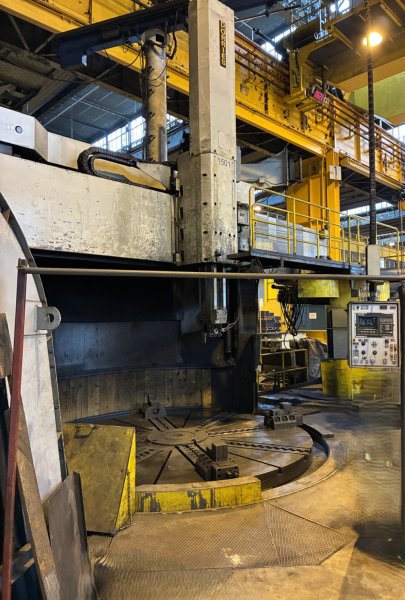

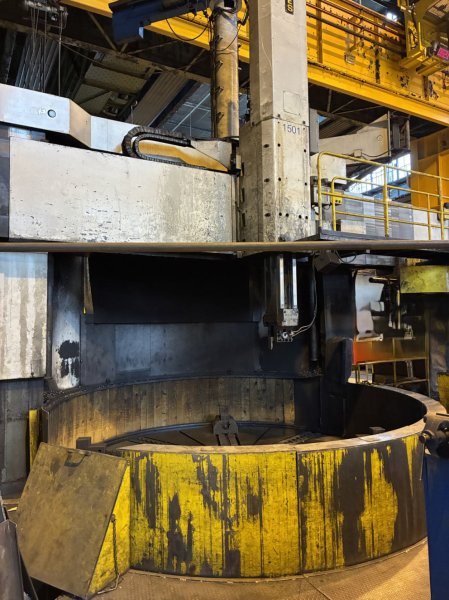

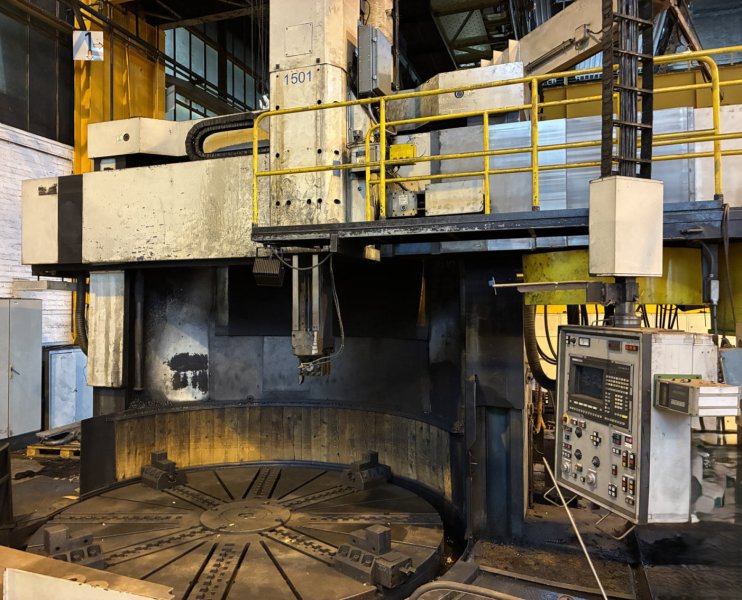

DORRIES CT 360 CNC VERTICAL LATHE
Table diameter: 3,600 mm
Maximum turning diameter: 3,800 mm
Maximum rotation diameter: 3,900 mm
Maximum clearance under crossbeam: 2,505 mm
Maximum turning height: 2, ...
DORRIES CT 360 CNC VERTICAL LATHE

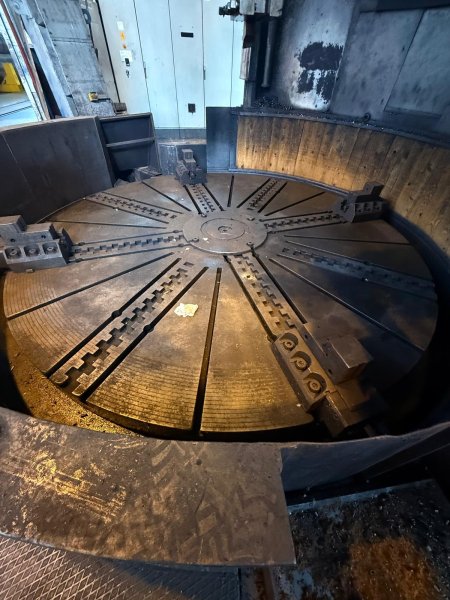

Table diameter: 3,600 mm
Maximum turning diameter: 3,800 mm
Maximum rotation diameter: 3,900 mm
Maximum clearance under crossbeam: 2,505 mm
Maximum turning height: 2,415 mm
Table load capacity: 60,000 kg
Table motor power: 125 kW
Table speed: 0.2 ÷ 71 rpm

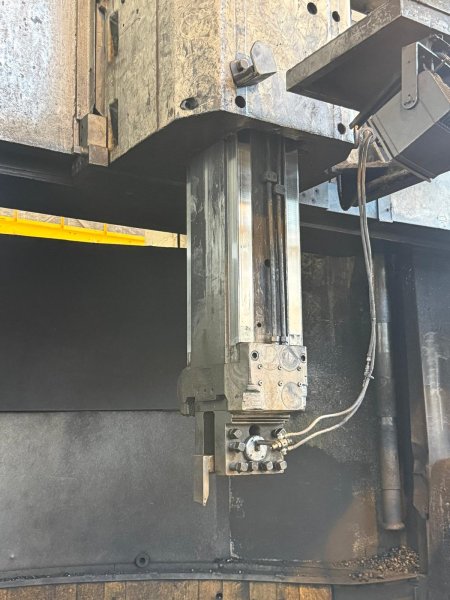

One vertical ram slide:
- vertical travel: 1,500 mm
- ram section: 320 x 280 mm

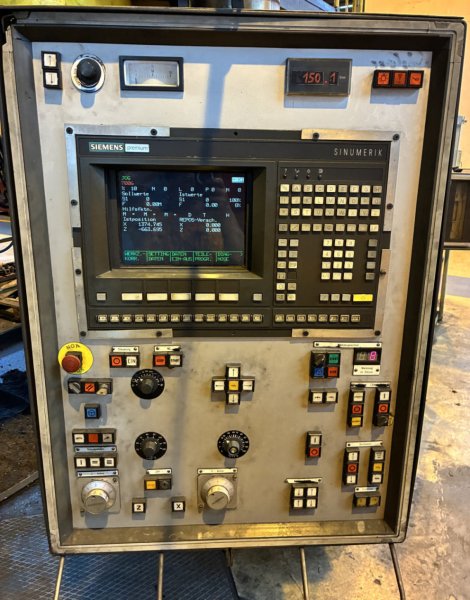

Siemens 820 T CNC
Year of construction/revision 1975/1992
Complete with:

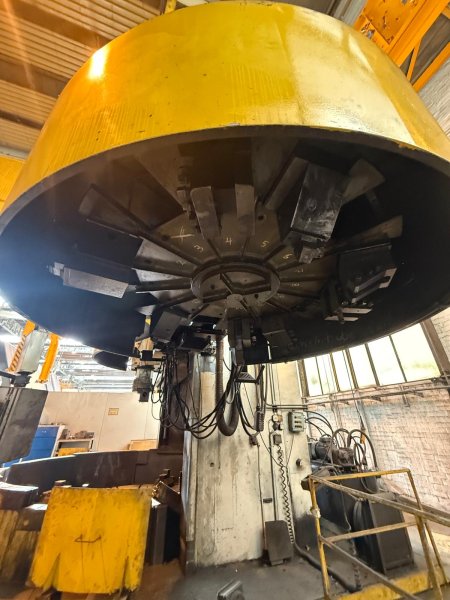

- 14-slot tool magazine
- Chip conveyor
