OMG ZANOLETTI 270
- Condition: used
- published: 09/10/2026
- 26IND49685
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 251/500 mm
Description

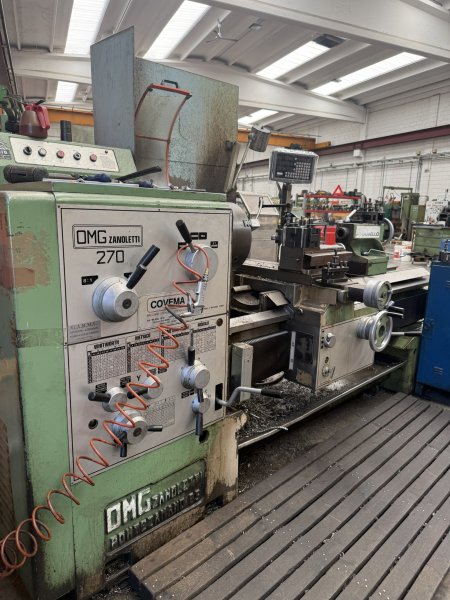

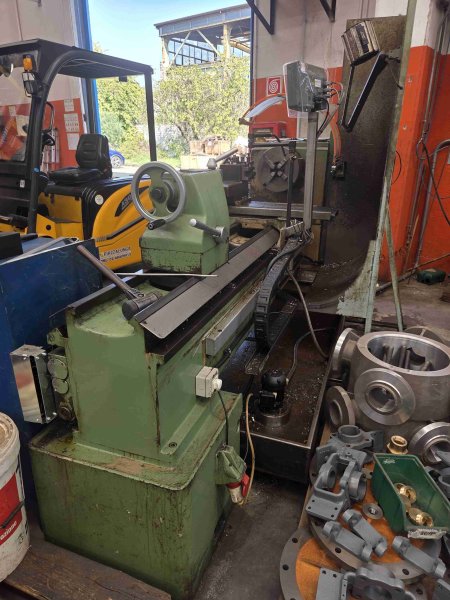

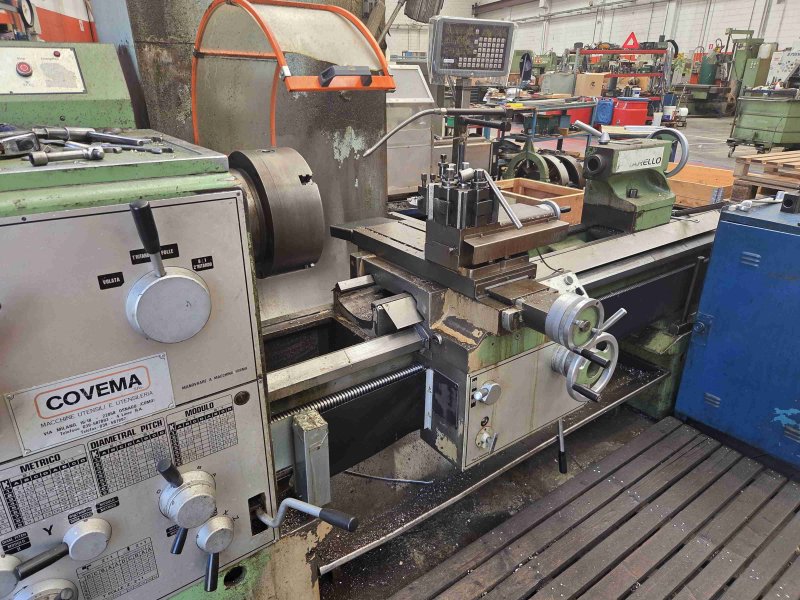

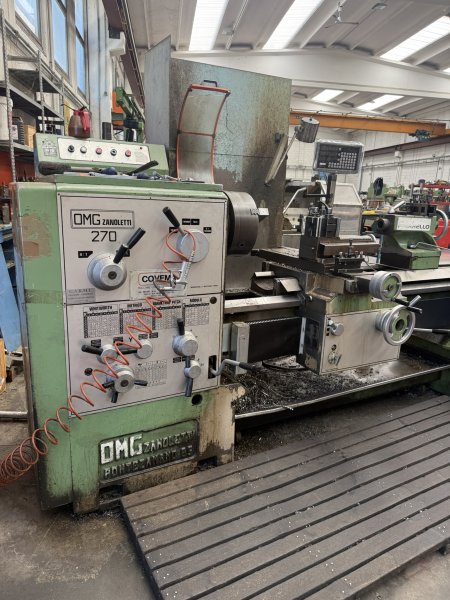

OMG ZANOLETTI 270 PARALLEL LATHE
Height of centers: 270 mm.
Distance between centers: 1,500 mm.
Max. diameter over bed: 540 mm.
Max. diameter over slide: 350 mm.
Bed width: 380 mm.
Spindle bore: 104 m ...
OMG ZANOLETTI 270 PARALLEL LATHE
Height of centers: 270 mm.
Distance between centers: 1,500 mm.
Max. diameter over bed: 540 mm.
Max. diameter over slide: 350 mm.
Bed width: 380 mm.
Spindle bore: 104 mm.
Spindle motor power: 12.5 hp.
Spindle rotation speed: 24; 28 - 1,600 rpm.
Tailstock quill diameter: 70 mm.
Tailstock quill travel: 250 mm.
Total weight: 2,700 kg.

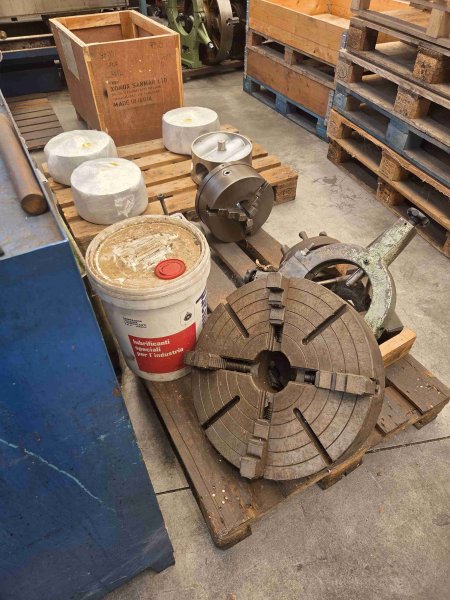

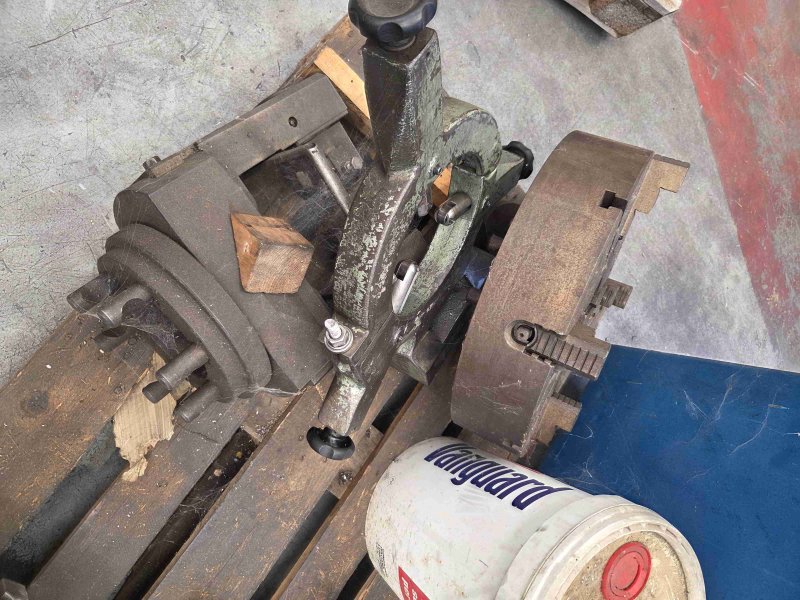

Complete with:
- display
- 1 platform: 500 mm in diameter
- 1 1 self-centering chuck, Ø 300 mm.
- 1 fixed steady rest
- 1 movable steady rest
- safety guards
