SECMU SE MACH 100 1998
- Condition: used
- published: 14/10/2026
- 26IND49726
Technical data
- Condition: used
- Year: 1998
Description

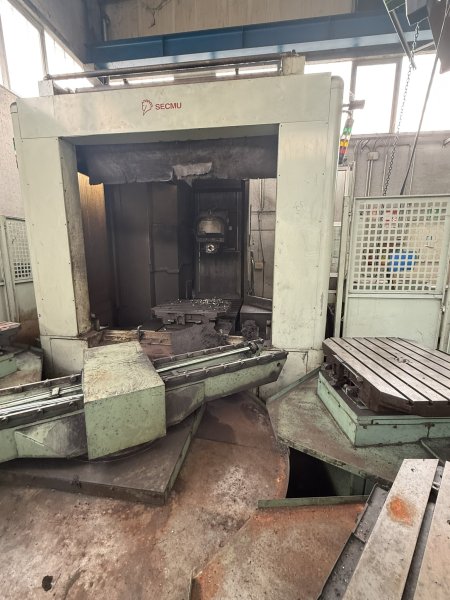

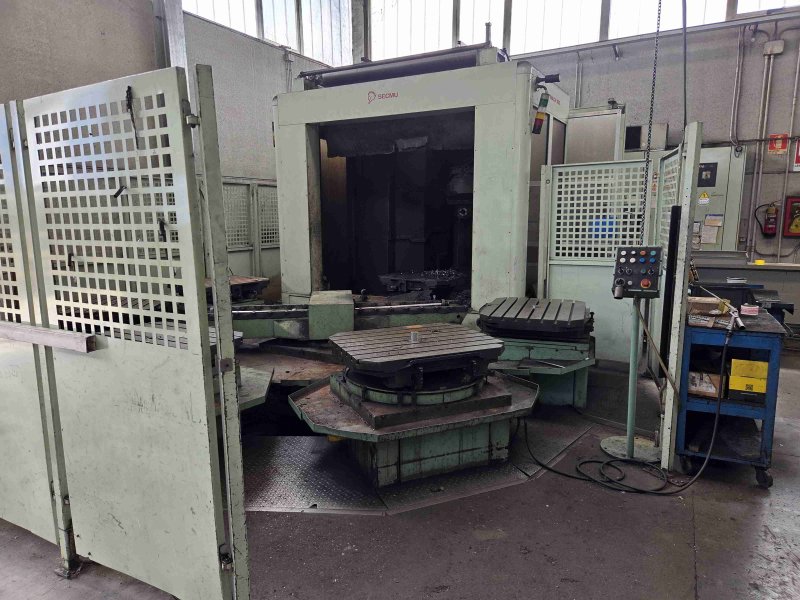

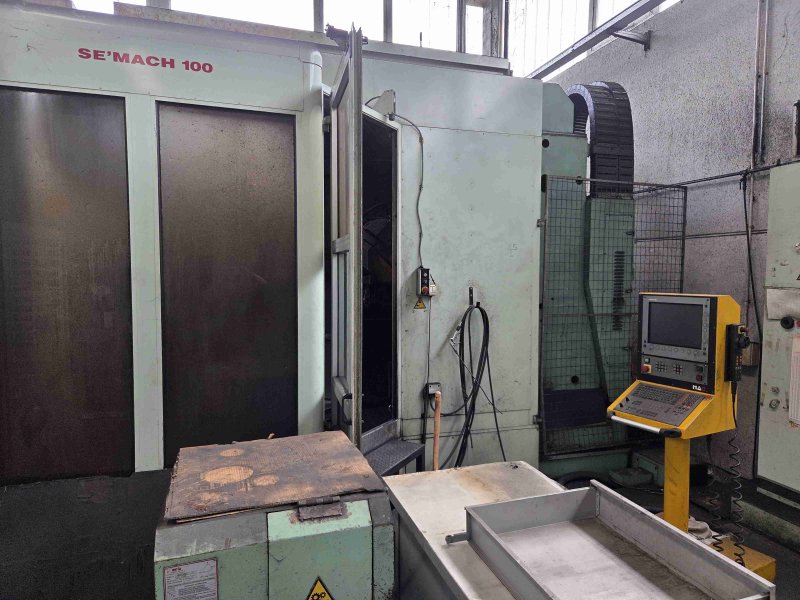

SECMU SE MACH 100 HORIZONTAL MACHINING CENTER

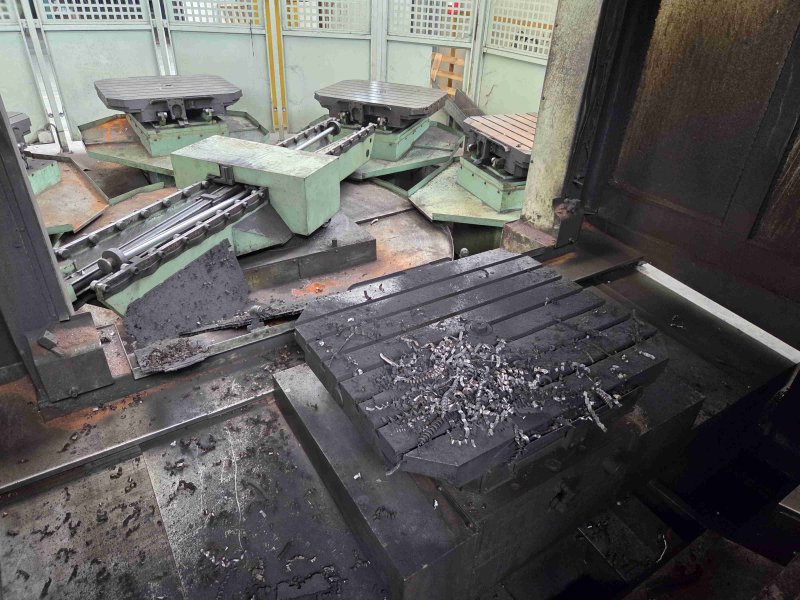

5 pallets 1,000 x 800 mm.
Maximum table load: 3,500 kg.
Transverse travel (X) 1,500 mm.
Longitudinal travel (W) 1,300 mm.
Vertical travel (Y) 1,600 mm.
Ta ...
SECMU SE MACH 100 HORIZONTAL MACHINING CENTER
5 pallets 1,000 x 800 mm.
Maximum table load: 3,500 kg.
Transverse travel (X) 1,500 mm.
Longitudinal travel (W) 1,300 mm.
Vertical travel (Y) 1,600 mm.
Table rotation (B) 360,000 rpm
Spindle taper ISO 50
Spindle speed: 20 ÷ 4,000 rpm
Spindle power: 30 kW.
Feed rates (X; W; Y) 10 ÷ 15,000 mm/min.

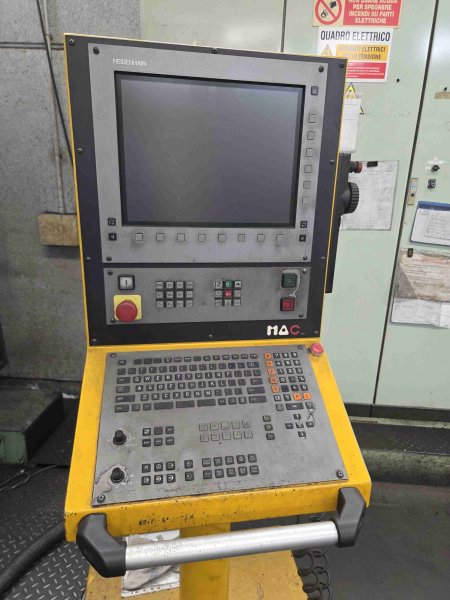

Heidenhain TNC 530 CNC
Year of construction/revision 1998/2006
Complete with:

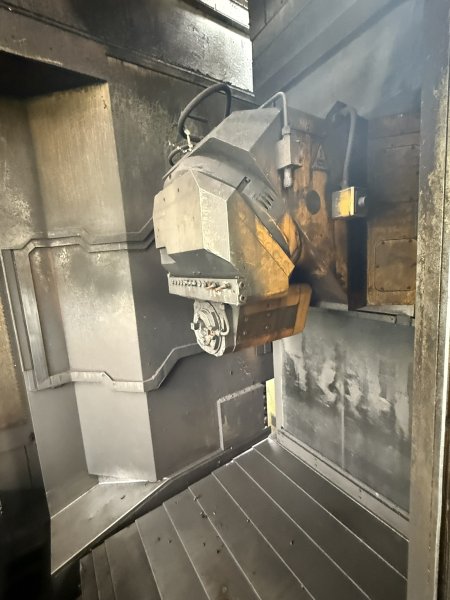

- automatic vertical/horizontal head

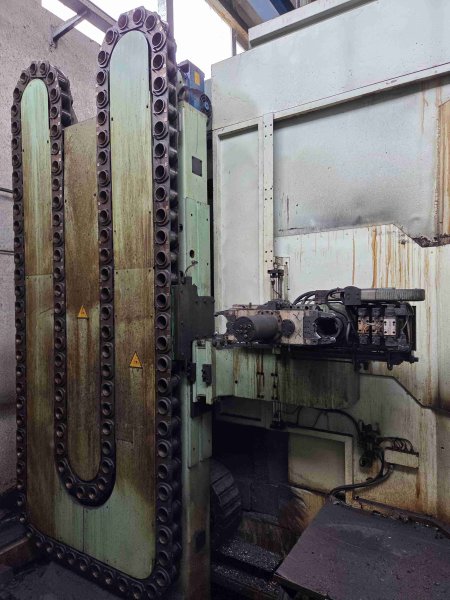

- 96-slot tool magazine
- chip conveyor
- enclosure
Revised
