SECMU SISTEMA 8-4 1987
- Condition: used
- published: 14/10/2026
- 26IND49727
Technical data
- Condition: used
- Year: 1987
Description
SECMU SYSTEM 8-4 HORIZONTAL MACHINING CENTER

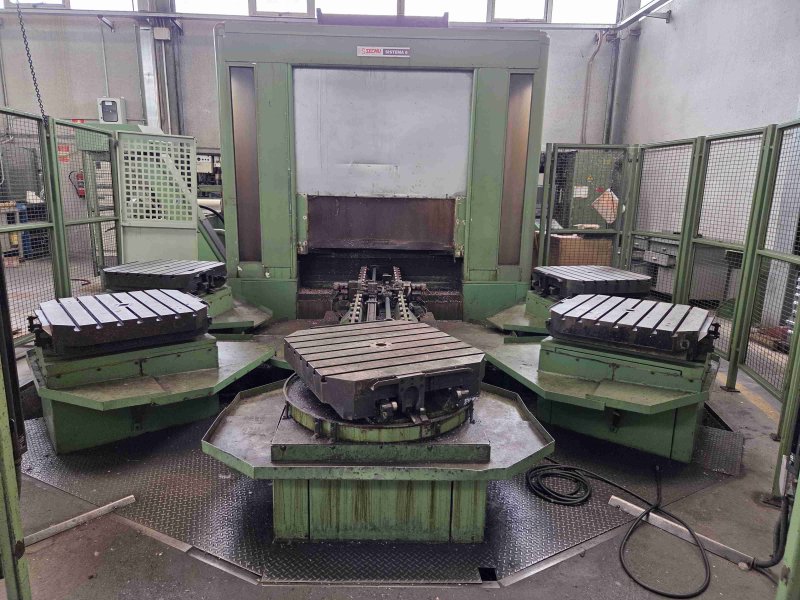

5 pallets 800 x 800 mm.
Maximum table load: 3,500 kg.
Transverse travel (X) 1,500 mm.
Longitudinal travel (W) 1,300 mm.
Vertical travel (Y) 1,100 mm.
Table ...
SECMU SYSTEM 8-4 HORIZONTAL MACHINING CENTER
5 pallets 800 x 800 mm.
Maximum table load: 3,500 kg.
Transverse travel (X) 1,500 mm.
Longitudinal travel (W) 1,300 mm.
Vertical travel (Y) 1,100 mm.
Table rotation (B) 360,000 rpm
Spindle taper ISO 50
Spindle speed: 20 ÷ 4,000 rpm
Spindle power: 30 kW.
Feed rates (X; W; Y) 10 ÷ 15,000 mm/min.

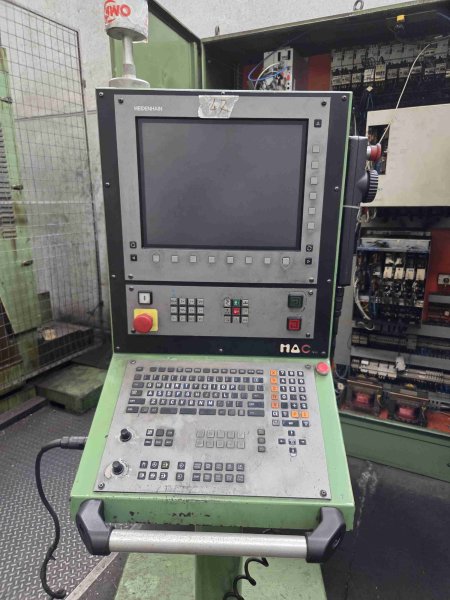

Heidenhain TNC 530 CNC
Year of construction/overhaul 1987/2007
Complete with:
- 96-slot tool magazine
- Chip conveyor
- Cover
