EMCO famup mmv 2000 2017
- Condition: used
- published: 14/10/2026
- 26IND49729
Technical data
- Condition: used
- Year: 2017
Description
Stock No.: 4053

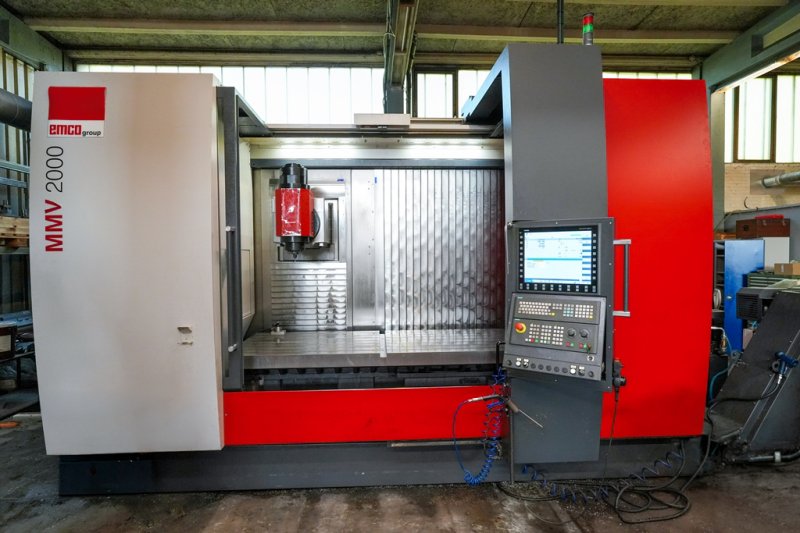

MACHINING CENTER VMC
Manuf.: EMCO, Type: MMV 2000
Serial No.: M-20906019, Build: 2017
Specifications:
Table Size 2400 x 950 ...
Stock No.: 4053
MACHINING CENTER VMC
Manuf.: EMCO, Type: MMV 2000
Serial No.: M-20906019, Build: 2017
Specifications:
Table Size 2400 x 950 mm
Max. table load 2200 kgs
Longitudinal travel (X) 2000 mm
Cross travel (Y) 800 mm
Vertical travel (Z) 750 mm
Spindle taper SK 40 ISO
Spindle speeds 50-15000 rpm
Spindle motor 46

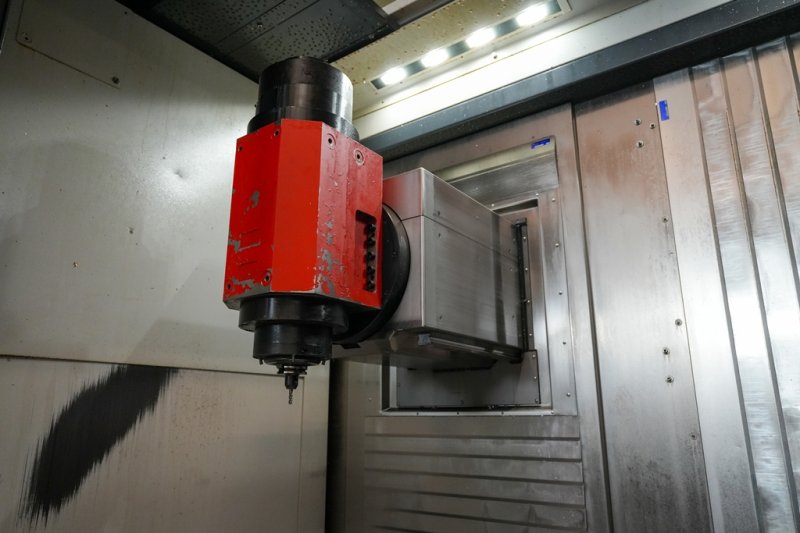

B axis angel +/- 120 degrees
Toolchanger ATC 40

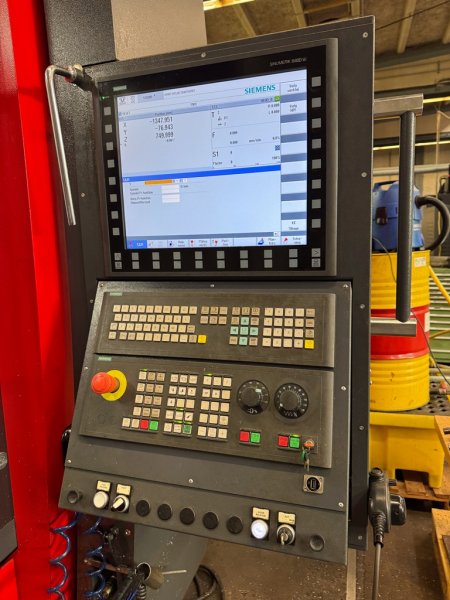

Control system Siemens 840 D SL
Controlled in axis 4
Spindel Running time 4488 Hours
Accessories:
Coolant through Spindel 20 bar
Chip conveyor.
Werkzeug abmessen
Dimensions:
Length: 2886 mm, Height: 3277 mm, Width: 4450 mm, Weight: 22 kg
Working
CE compliant
