MAZAK NEXUS Integrex 400 III-S 2005
- Condition: used
- published: 14/10/2026
- 26IND49731
Technical data
- Condition: used
- Year: 2005
- Mandrel diameter: >250 mm
Description
Stock No.: 3963

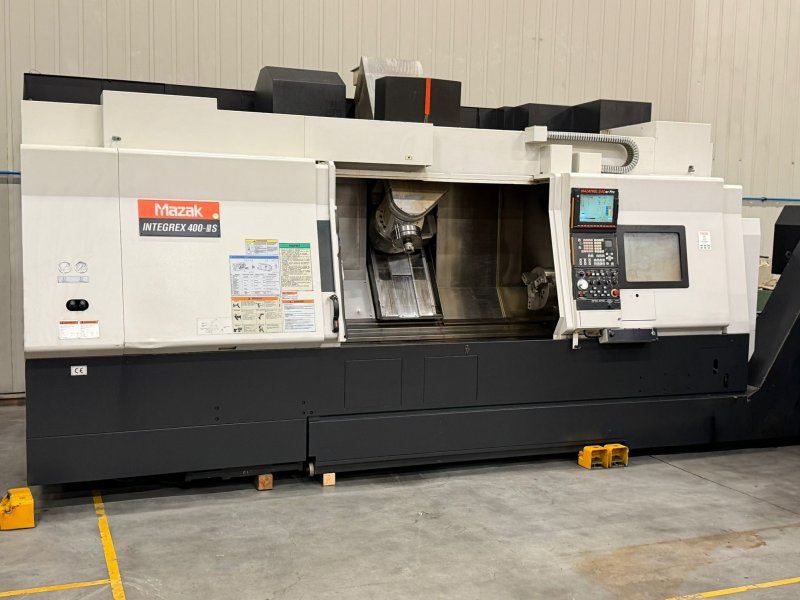

CNC LATHE
Manuf.: MAZAK, Type: INTEGREX 400 III-S
Serial No.: -, Build: 2005
Specifications:
Max. Turning diameter 420 mm dia.
Max. Turning dia o ...
Stock No.: 3963
CNC LATHE
Manuf.: MAZAK, Type: INTEGREX 400 III-S
Serial No.: -, Build: 2005
Specifications:
Max. Turning diameter 420 mm dia.
Max. Turning dia o/slide 850 mm dia.
Turning Length 1524 mm
Main motor power 30
Main Spindle speed Range 3300 rpm
Boring trough drawing pipe 102 mm dia.
C Axis - Mainspindle Stroke 0.001
Y axis +/- 115
B axis Stroke -30/+195
B axis spindrel rpm. 12000
B axis milling power 18.5
B axis system Capto C6

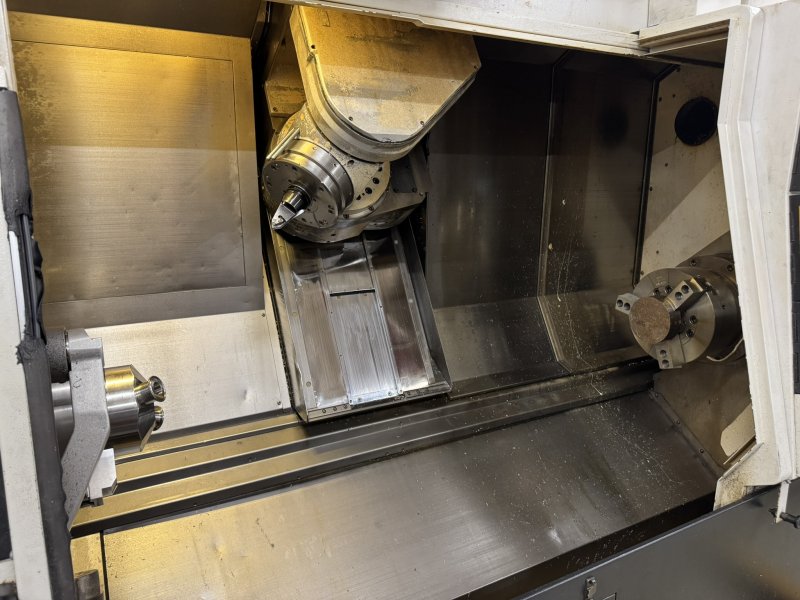

Sub Spindle
C Axis – Sub spindle Stroke 0.001 degree
Motor Power Subspindle 26/22
Total Power Source 99.9 kva

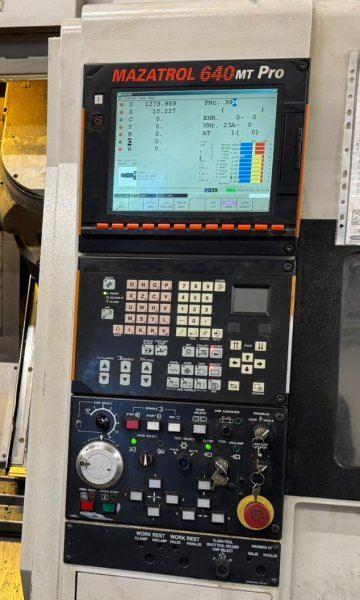

Control system Mazatrol 640
Working hours Spindle 2631
Controlled in 6
Accessories:
ATC Tool magazine with 40
Hydr. Chuck Mainspindle 300
Hydr. Chuck Supspindle 300
Various toolposts.
Tool setter
Dimensions:
Length: 5100 mm, Height: 2798 mm, Width: 2200 mm, Weight: 13300 kg
