TSUGAMI BS32S-III 2016
- Condition: used
- published: 14/10/2026
- 26IND49732
Technical data
- Condition: used
- Year: 2016
- Bar passage : 21/32 mm
Description
Stock No.: 4010

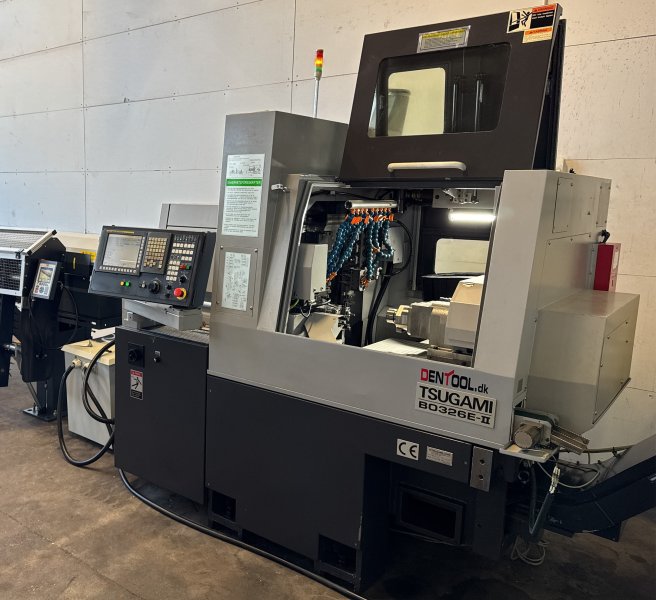

CNC LATHE -SWISS TYPE
Manuf.: TSUGAMI, Type: BO326E-II - 2016
Serial No.: 23031A, Build: 2016
Specifications:
Max. capacity 32 mm d ...
Stock No.: 4010
CNC LATHE -SWISS TYPE
Manuf.: TSUGAMI, Type: BO326E-II - 2016
Serial No.: 23031A, Build: 2016
Specifications:
Max. capacity 32 mm dia
Max. Turning length (fixed guide bush) 320
Max. Turning length (Rotary guide bush) 70
Max. tapping capacity of main spindle M 10
Max Rotary Drilling Capasity 12
Main Spindle power 3.7/5.5
Subspindle
Sub Spindle speeds 8000
spindle boring 32
Spindlespeeds Driven Tools 6000 ( 4800) - 1 kw
Sucspindle power 2.2/3.7

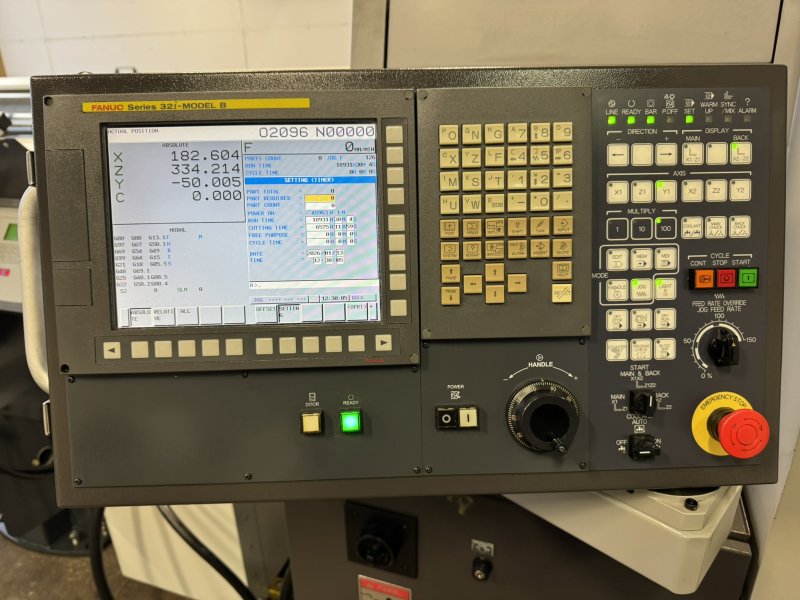

Control system Fanuc 32i-B
Controlled in number of axis X1-X2-Z1-Z2-Y1-Y2
Operation Time 6575
Accessories:
Chip Convoyer

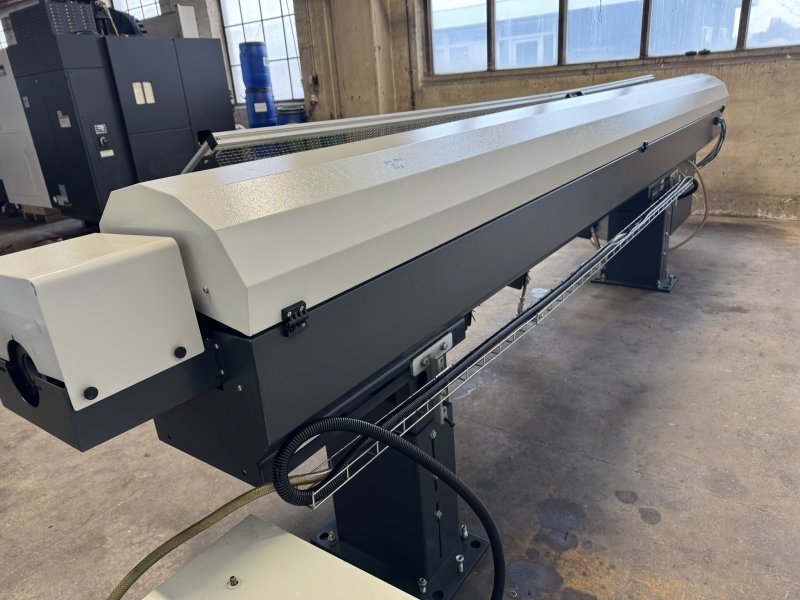

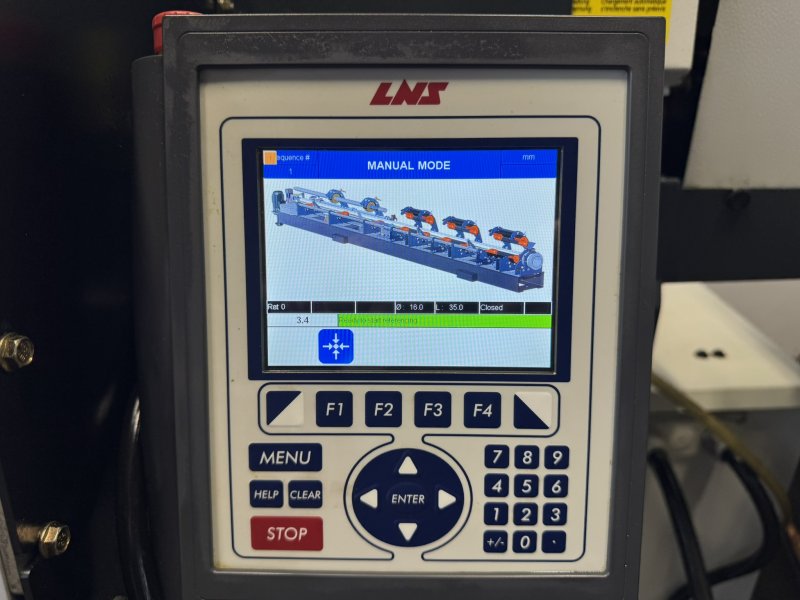

Loading Magazine LNS Sprint 545 - Build 2016
Dimensions:
Length: 2400 mm, Height: 2000 mm, Width: 1500 mm, Weight: 3500 kg
