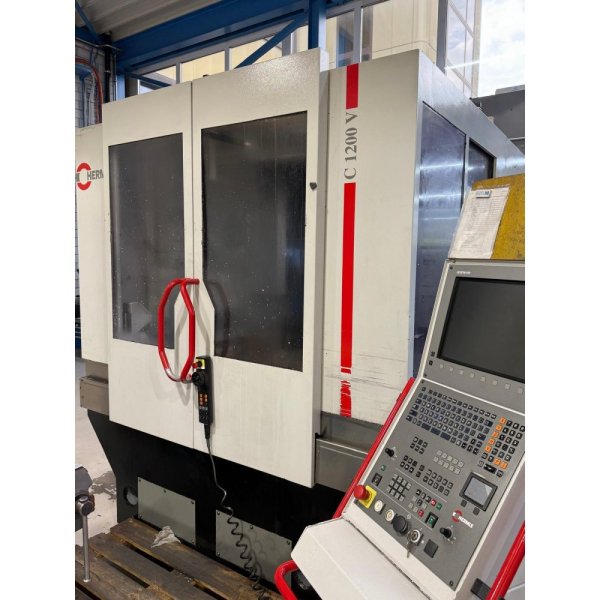

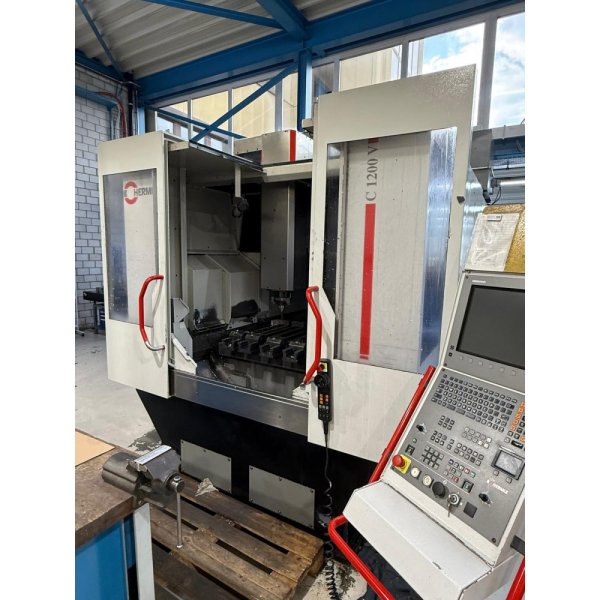

HERMLE C 1200 V 2003
- Condition: used
- published: 17/10/2026
- 26IND49739
Technical data
- Condition: used
- Year: 2003
Description
Numerical Control: Heidenhain iTNC 530
Axes
X-axis travel mm: 1,200
Y-axis travel mm: 900
Z-axis travel mm: 500
Rapid traverse m/min: 30

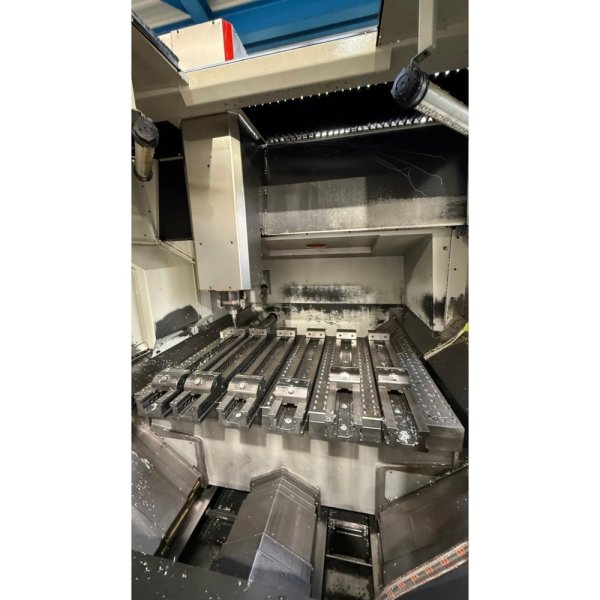

Working area
Table size mm: 1,400 × 900
Maximum workpiece weig ...
Numerical Control: Heidenhain iTNC 530
Axes
X-axis travel mm: 1,200
Y-axis travel mm: 900
Z-axis travel mm: 500
Rapid traverse m/min: 30
Working area
Table size mm: 1,400 × 900
Maximum workpiece weight kg: 1,800
Maximum workpiece size (W x L x H) mm: 1,400 × 900 x 240

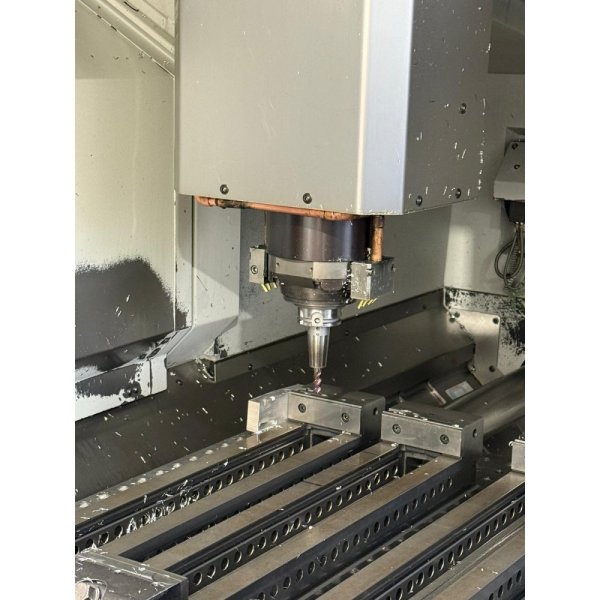

Spindle
Spindle speed rpm: 10,000 - 16,000 - 24,000
Spindle power kW: 32
Maximum torque Nm: 200

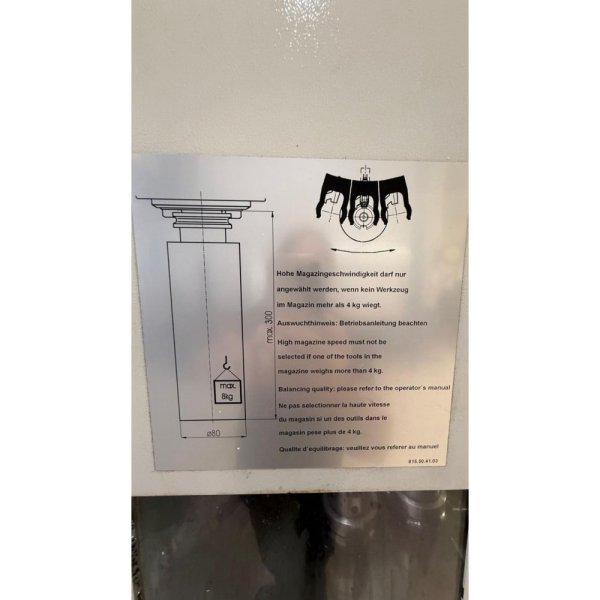

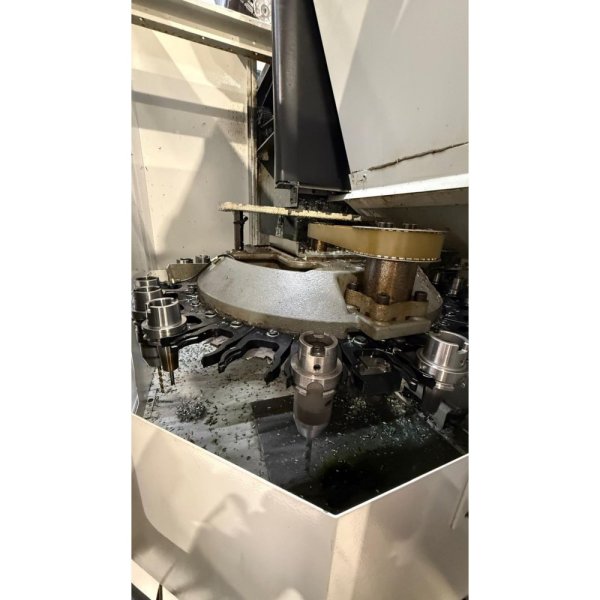

Tool magazine
Tool holder: HSK-A63
Positions Tool magazine: 30
Maximum tool diameter mm: 125
Maximum tool length mm: 300
Maximum tool weight kg: 4
Tool change time, chip to chip s: 6.5
Equipment
Electronic handwheel

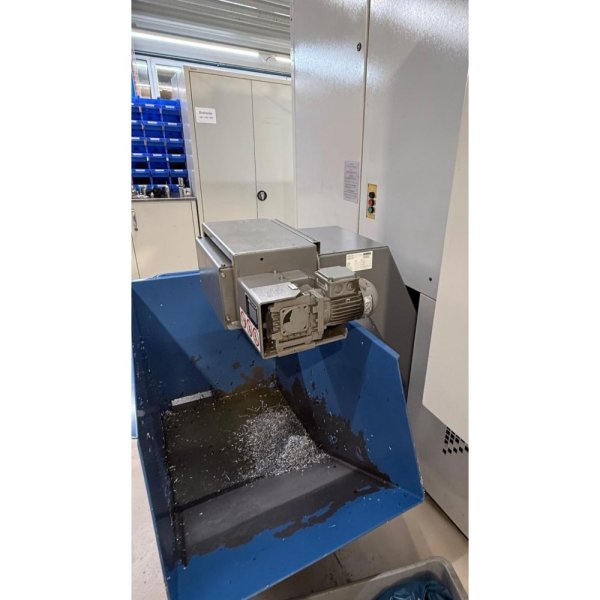

Chip conveyor
WORK AREA LAMP
Coolant
Tank capacity liters: 300 L

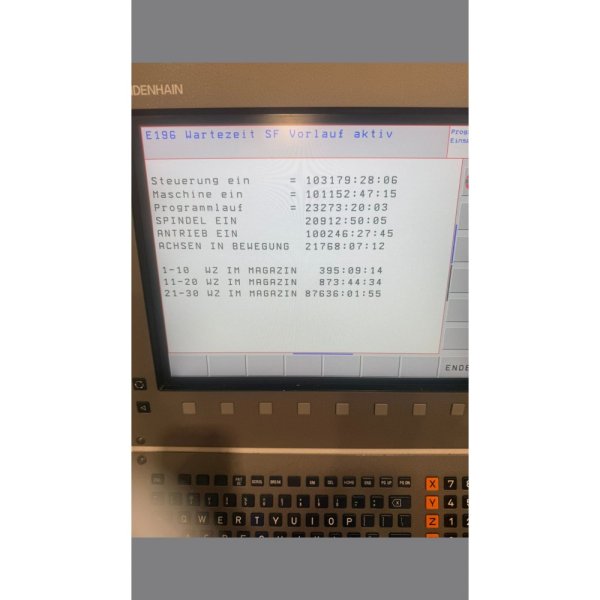

Working time
Powered: 103,179
Operating Time: 23,273
Rated power kVA: 31
Main machine dimensions / weight
Length mm: 4,000
Width mm: 3,000
Height mm: 2,800
Weight kg: 13,200
