TORGIM 360
- Condition: used
- published: 21/10/2026
- 26IND49754
Technical data
- Condition: used
- Year: undefined
- Distance between tips : 0/1500 mm
- Tip height : 251/500 mm
Description

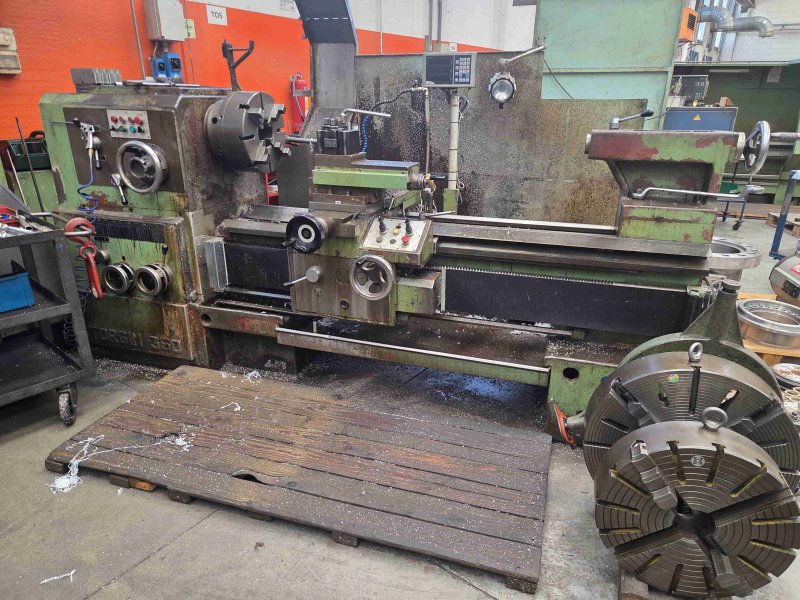

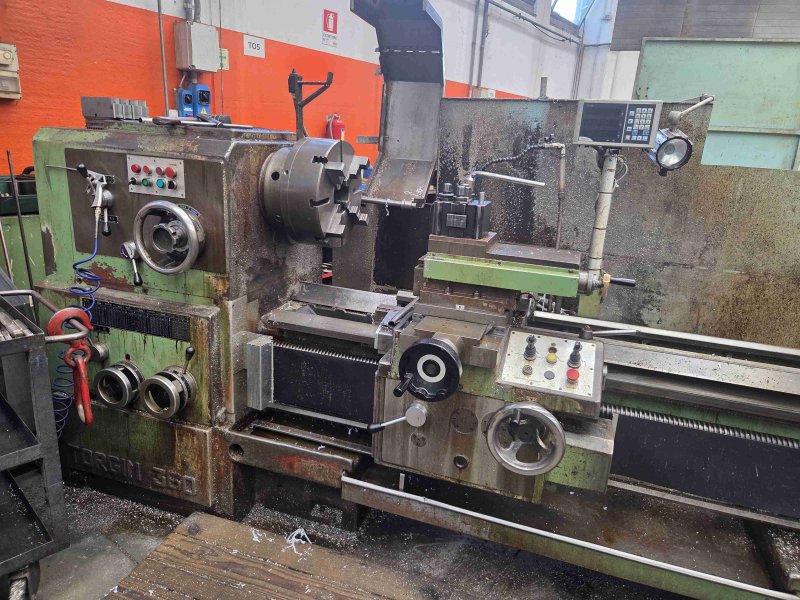

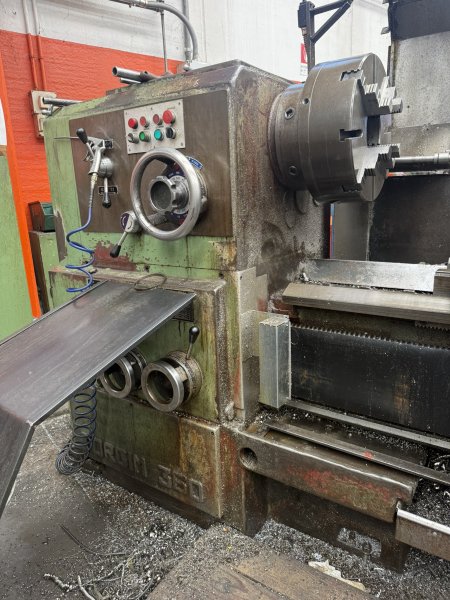

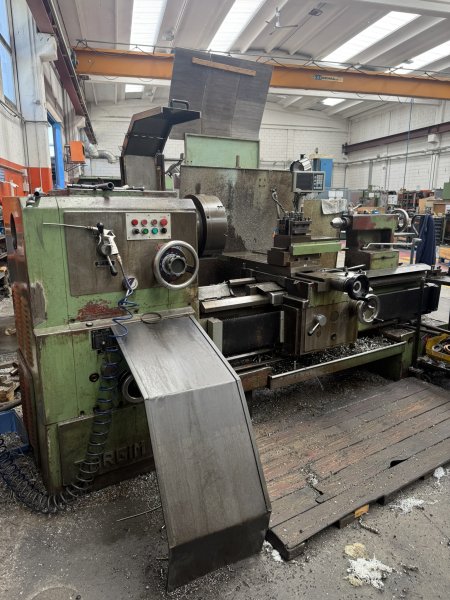

TORGIM 360 x 1500 PARALLEL LATHE
Height of centers: 360 mm.
Distance between centers: 1,500 mm.
Turning diameter over bed: 730 mm.
Turning diameter over slide: 500 mm.
Turning diameter in pocket: 880 ...
TORGIM 360 x 1500 PARALLEL LATHE
Height of centers: 360 mm.
Distance between centers: 1,500 mm.
Turning diameter over bed: 730 mm.
Turning diameter over slide: 500 mm.
Turning diameter in pocket: 880 mm.
Pit length: 450 mm.
Bed width: 415 mm.
Spindle motor power: 15 hp.
Spindle rotation speed: 24 N; 10 - 1,300 rpm

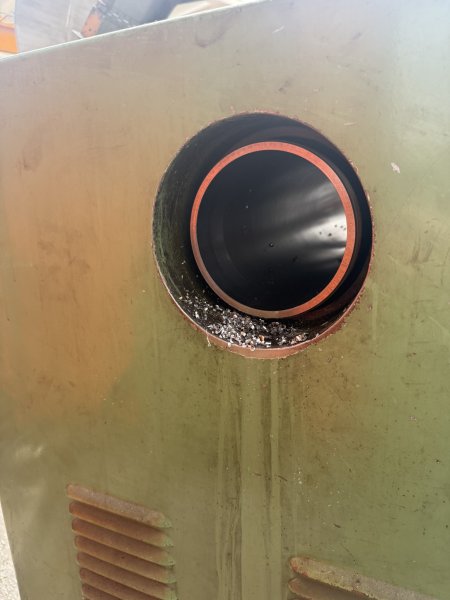

Spindle bore diameter: 133 mm.
Total weight: 3,900 kg.
Complete with:
- display

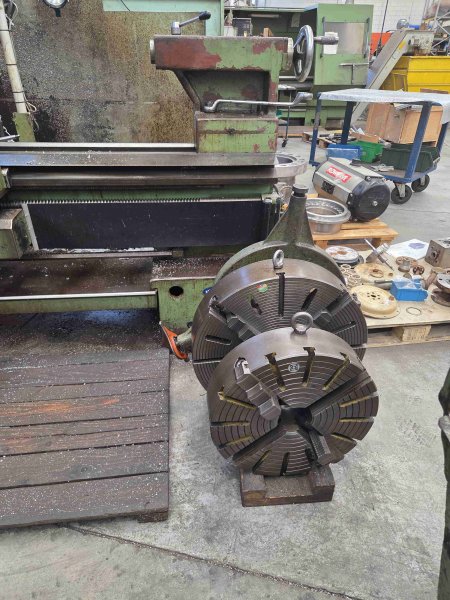

- 1 platform, 600 mm in diameter
- 1 1 self-centering chuck, Ø 375 mm.
- 1 closed steady rest
- Safety guards
