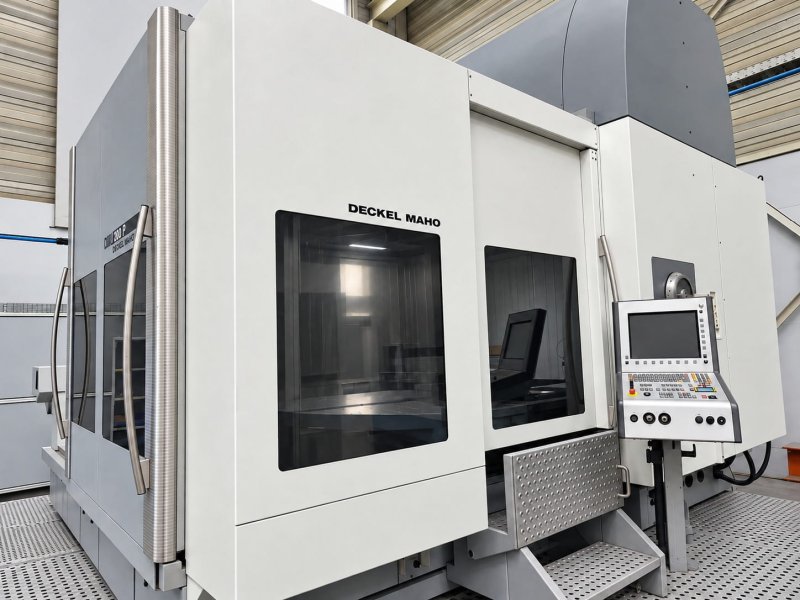

DMG MORI DMU 80 P duoBLOCK 2016
- Condition: used
- published: 23/10/2026
- 26IND49762
Technical data
- Condition: used
- Year: 2016
Description
Year of manufacture: 2016
Numerical control: CELOS with SIEMENS 840D sl operate 21.5" ERGOline Control with Multi-Touch Screen
Axes
X-axis travel mm: 800
Y-axis travel mm: 1050
Z-axis travel mm: 850
C ...
Year of manufacture: 2016
Numerical control: CELOS with SIEMENS 840D sl operate 21.5" ERGOline Control with Multi-Touch Screen
Axes
X-axis travel mm: 800
Y-axis travel mm: 1050
Z-axis travel mm: 850
C-axis angle: 360º (0.001)
B-axis angle: -30º/180º (0.001)
Feed m/min: 60
Rapid traverse m/min: 60
Axis acceleration m/s2: 7

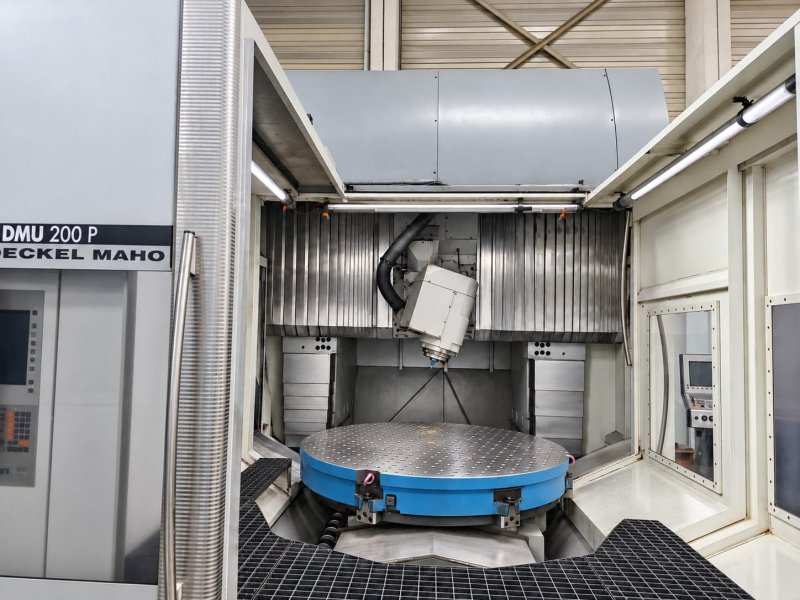

NC milling/turning table:
Table dimensions mm: Ø900x700
Maximum workpiece weight kg: 1800
Table rotation speed rpm: 40

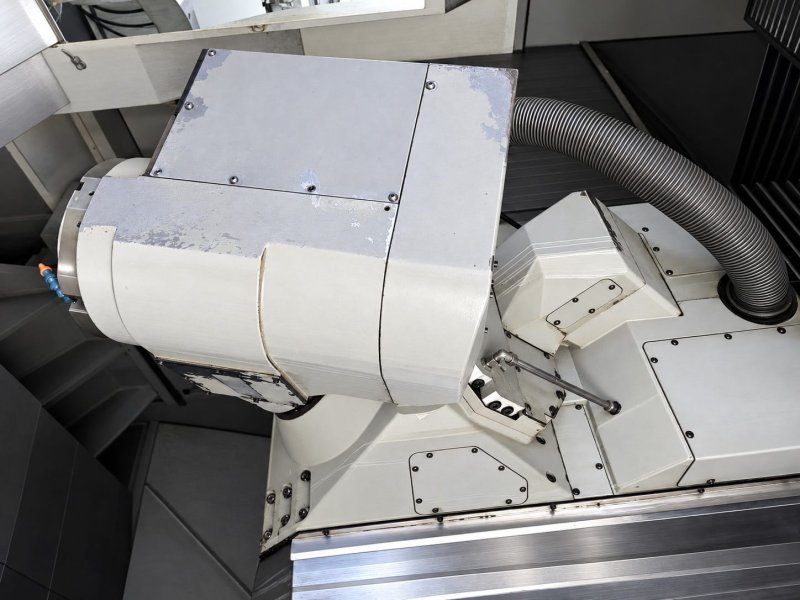

Spindle
Spindle rotation speed rpm: 18,000
Spindle power kW: 35/25 (40/100% DC)
Maximum torque Nm: 130/86 (40/100% DC)

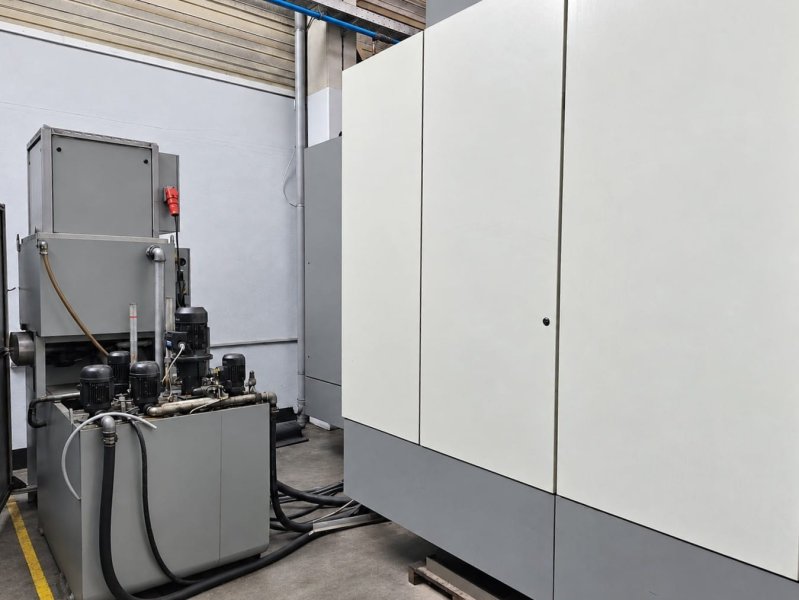

Coolant
Coolant via spindle center bar: 40
Tank capacity liters: 600

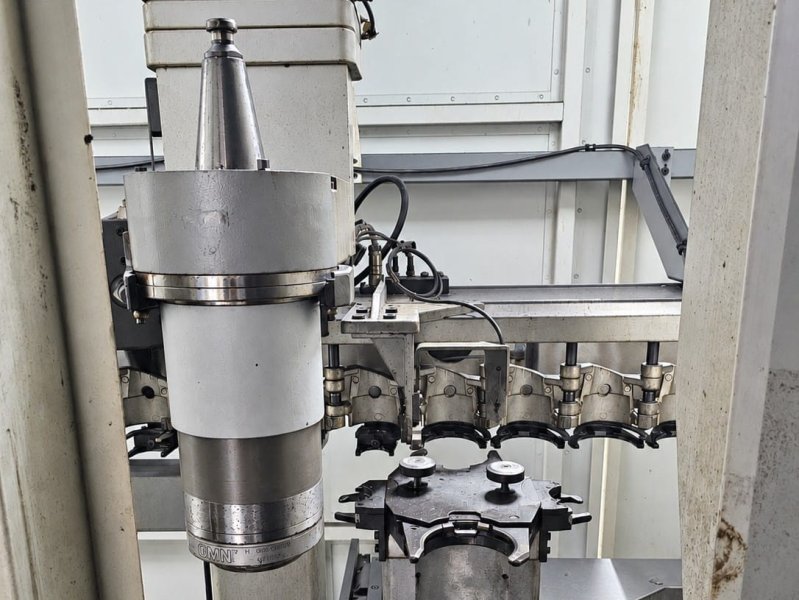

Tool magazine
HSK-A 63 tool holder
Tool magazine positions: 63
Double gripper tool changer
With adjacent tool positions free mm: 120
With adjacent tool positions occupied mm: 80
Maximum tool length mm: 650
Maximum tool weight kg: 15
Tool change time, chip-to-chip s: 4.2
Equipment
Handwheel Electronic
Chip conveyor
Infrared probe
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Flushing gun
4 operating modes
Air flow through the spindle activated by the M function
Status indicator light
Tool integrity monitor
Oil mist filter
3D quickSET
MPC – Machine Protection Control
Paper belt filter
Active vibration suppression (ACC), improved surface finish with reduced machining times, longer tool life

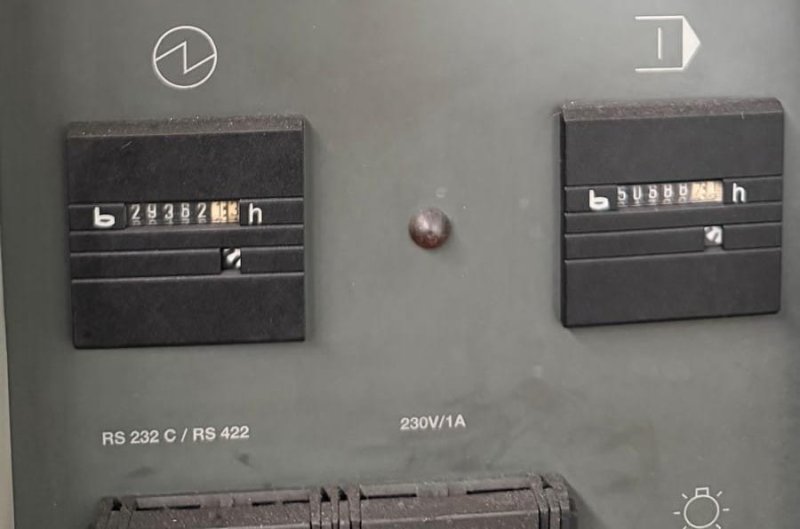

Working time
Powered: 38,383
Working spindle: 16,803
Rated power kVA: 63

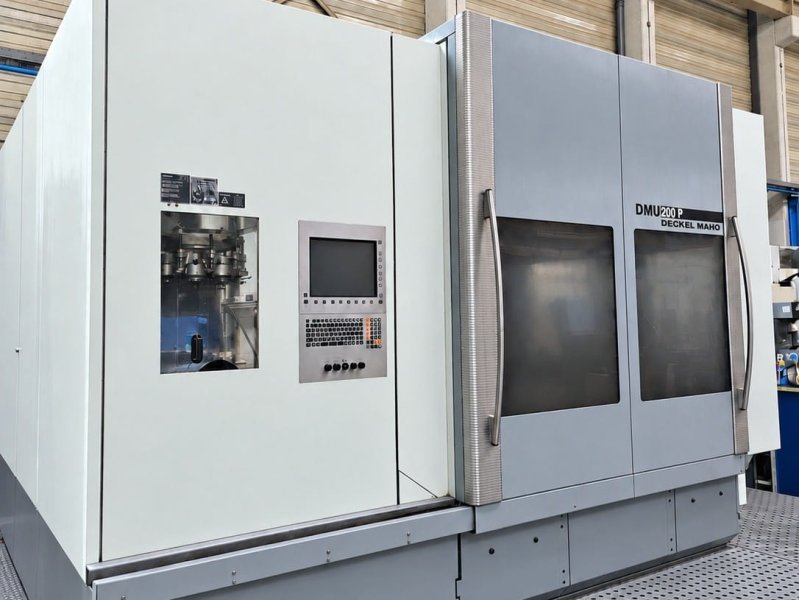

Main machine dimensions / weight
Length mm: 5000
Width mm: 5600
Height mm: 3700
Weight kg: 21500
