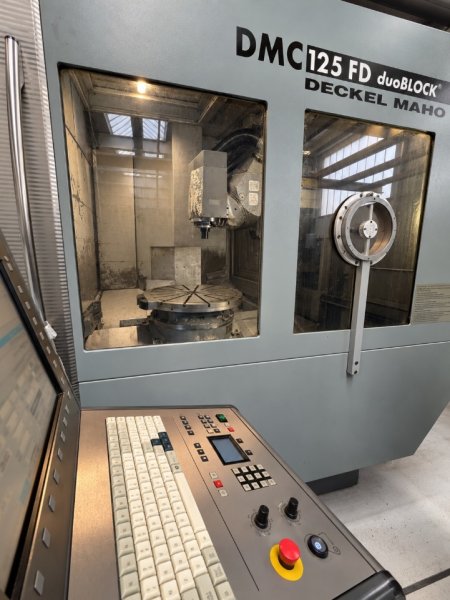

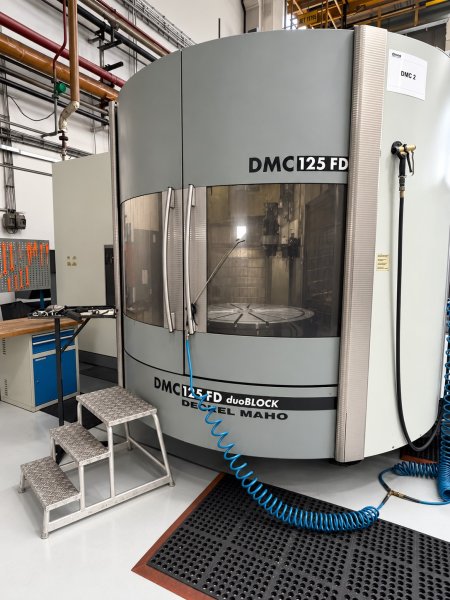

DECKEL MAHO DMC 125 FD duoBLOCK 2007
- Condition: used
- published: 26/10/2026
- 26IND49764
Technical data
- Condition: used
- Year: 2007
- X-axis travel: 1001/2000 mm
Description
Year of manufacture: 2007

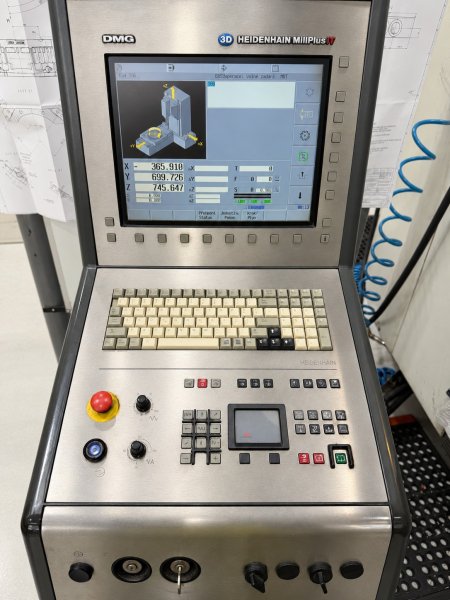

Numerical control: Heidenhain MillPlus IT FD
Axes
X-axis travel mm: 1250
Y-axis travel mm: 1000
Z-axis travel mm: 1000
C-axis angle: 360º (0.001)
B-axis angle: 0º/190º
Fee ...
Year of manufacture: 2007
Numerical control: Heidenhain MillPlus IT FD
Axes
X-axis travel mm: 1250
Y-axis travel mm: 1000
Z-axis travel mm: 1000
C-axis angle: 360º (0.001)
B-axis angle: 0º/190º
Feed rate m/min: 60
Rapid feed m/min: 60
NC milling/turning table:
Number of pallets: 2
Table size mm: Ø1100
Maximum workpiece weight kg: 2000
Table rotation speed rpm: 500
Maximum torque Nm: 5600
Spindle
Spindle rotation speed rpm: 8000
Spindle power kW: 28/19 (40/100% DC)
Maximum torque Nm: 727/492 (40/100% DC)

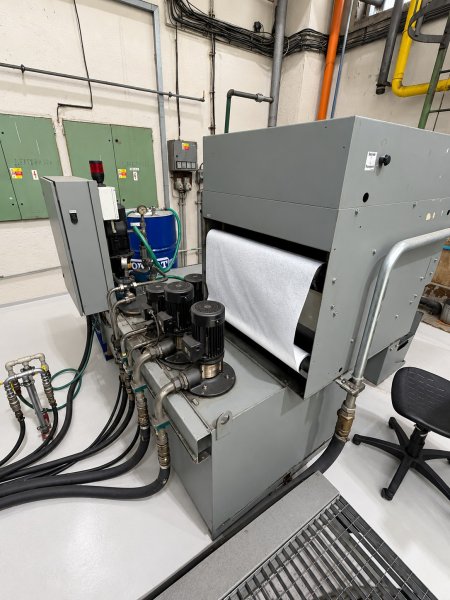

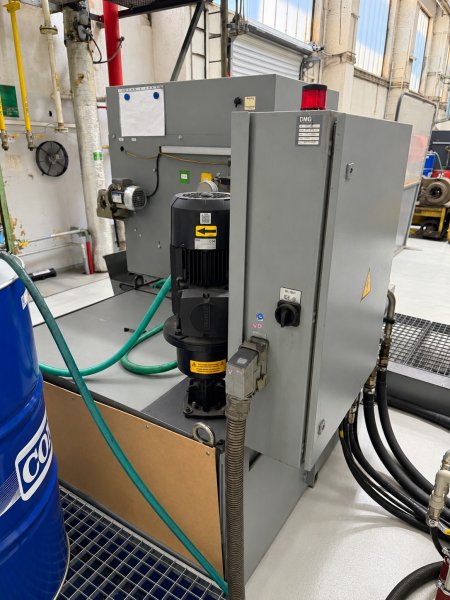

Coolant
Coolant via spindle center bar: 40
Tank capacity liters: 980

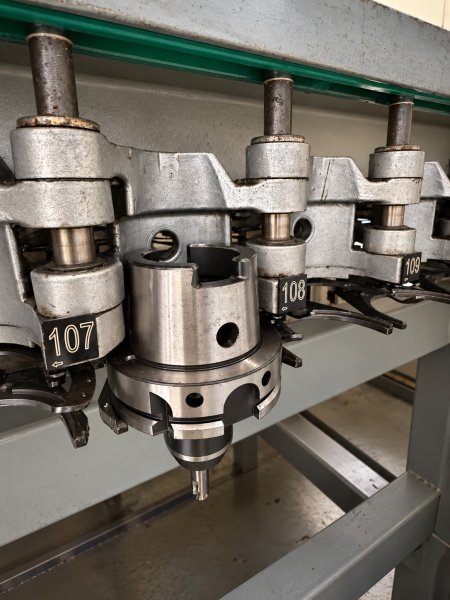

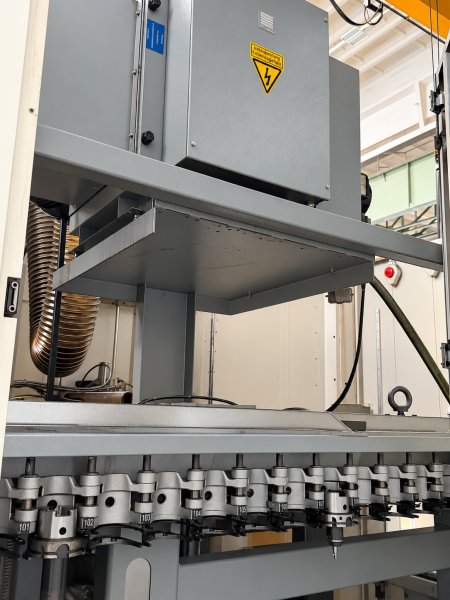

Tool magazine
HSK-A 100 tool holder
Tool magazine positions: 120
Tool change time, chip-to-chip s: 5
Equipment
Electronic handwheel
Chip conveyor
Internal cooling lubricant supply (via center)
Inspection windows with rotating device
Wash gun
4 operating modes
Air flow through the spindle activated by M function
Oil mist filter
3D quickSET
Working time
Powered: 91,090
Working spindle: 40,967
Main machine dimensions / weight
Length mm: 7,500
Width mm: 5,600
Height mm: 3,500
Weight kg: 24,000
