SEI LASER NRG-L CONVEJOR mod. 2215 V300 2020
- Condition: used
- published: 26/10/2026
- 26IND49765
Technical data
- Condition: used
- Year: 2020
Description

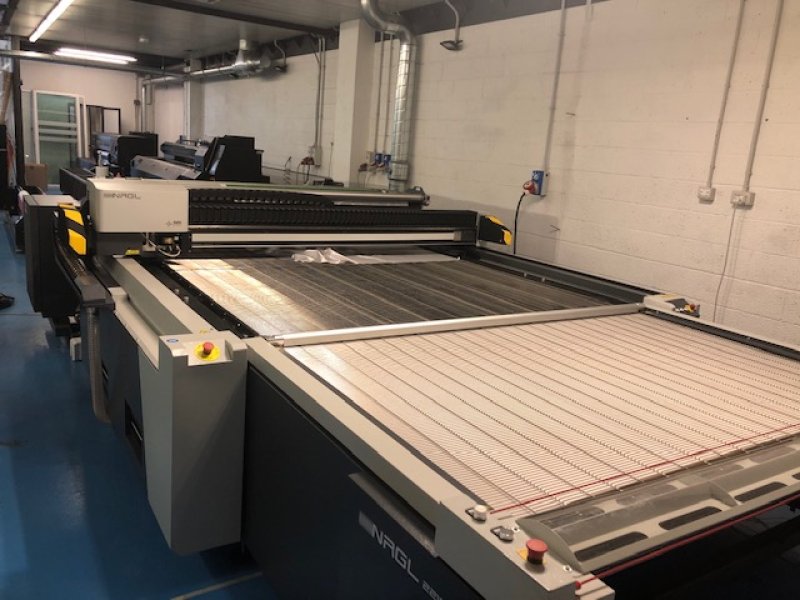

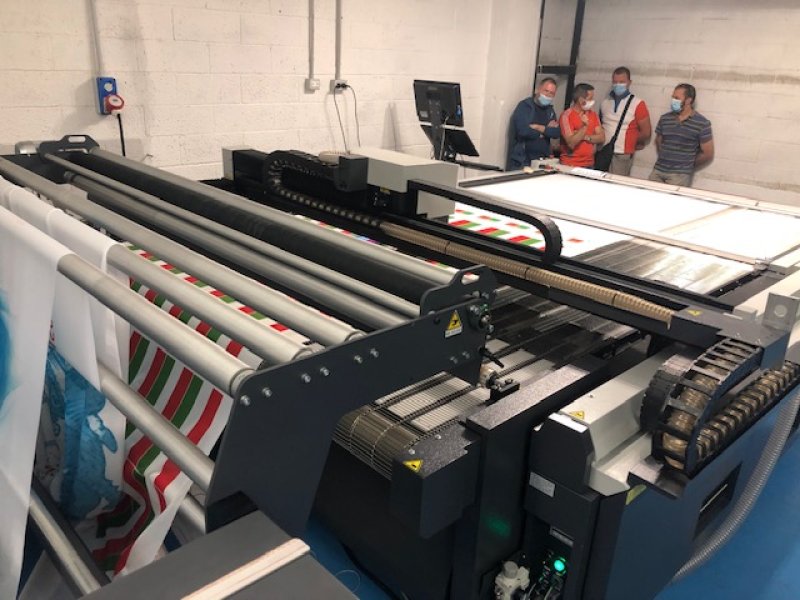

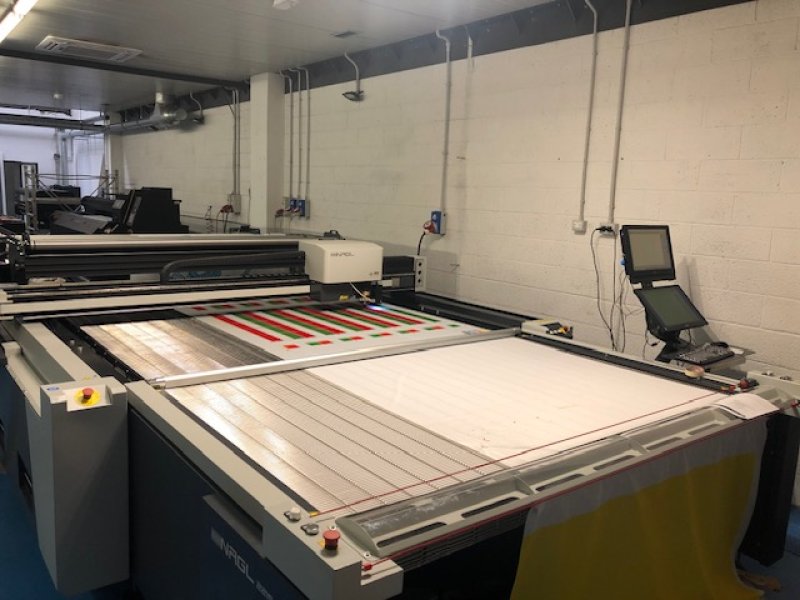

Laser cutting table for fabrics in excellent condition (like new) - year 2020
Brand: SEI LASER (Made in Italy) - NRG-L CONVEJOR series, model 2215 V300
Sealed CO2 laser source, typical power 300W with ...
Laser cutting table for fabrics in excellent condition (like new) - year 2020
Brand: SEI LASER (Made in Italy) - NRG-L CONVEJOR series, model 2215 V300
Sealed CO2 laser source, typical power 300W with radio frequency drive.
Closed-circuit liquid refrigeration/thermostat unit for the laser source.
Cutting head with interchangeable focusing lens holder, input for cutting-assist gas (compressed air).
Repeatability (short-term): +/- 0.05 mm
Z-axis speed: 66 mm/s
Z-axis resolution: 0.05 mm
Maximum speed: 2000 mm/s
X-Y axis transmission: belt. Z-axis: ball screw.
Motorization: 5 interpolated brushless motors with digital control.
Control: SEI with 4-axis electronic board, EtherCat bus communication: in use
3 for X-Y and Z axes.
24V digital I/O for: diagnostics, controls, and external interfaces.
Communication: Ethernet LAN network 10/100 Mbps, via personal computer with a Windows® operating system.
Software interface: “ICARO” SEI CAM software interface.
Processing modes: vector and/or raster.
Semi-automatic setting of the focal point (distance between the cutting head and the material) via software.

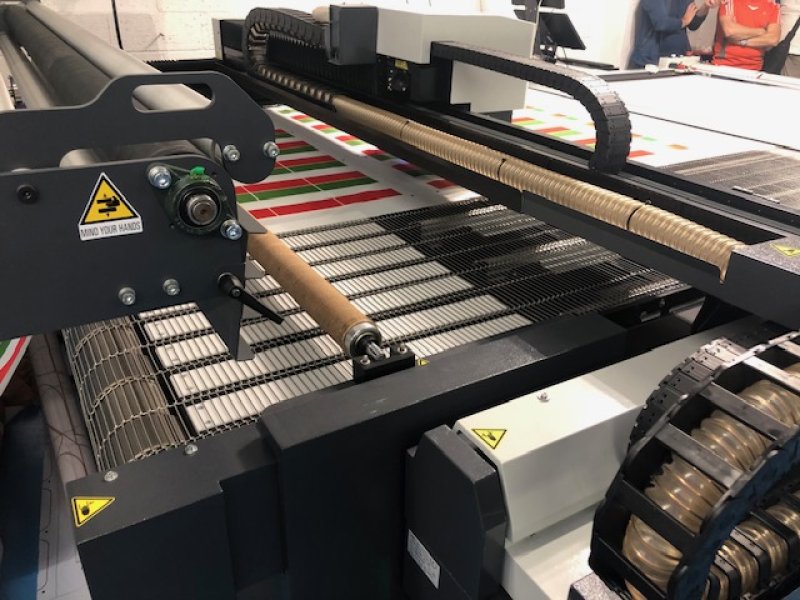

Mobile work surface with motorized conveyor, speed and position controlled, metal mesh material support, provision for fume extraction. Removable fume extraction nozzle on the cutting head.
LED pointer for visual identification of the X-Y axes position.
Gas circuit (compressed air) for cutting and/or marking assistance; software management for controlling the proportional solenoid valve.
MACHINE OVERALL DIMENSIONS (mm): (with extended unloading table at the front of the machine)
Length: 4350 mm; Width: 3250 mm; Height: 1390 mm
Machine weight: approximately 950 kg
Chiller: 570 x 740 x 1146 mm; Weight: 140 kg
Working area (Y-X): 2200 x 1500 mm
Maximum material thickness: 50 mm
Motorized Z-axis, stroke: 70 mm
Clearance under head/nozzle: 55 mm
Ambient temperature: 15°- 40° C
Humidity: 75% RH, non-condensing
