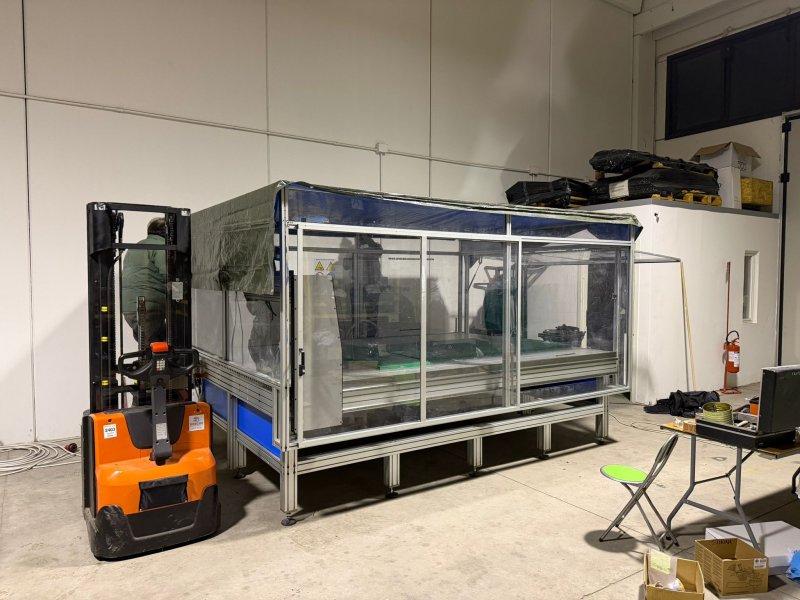

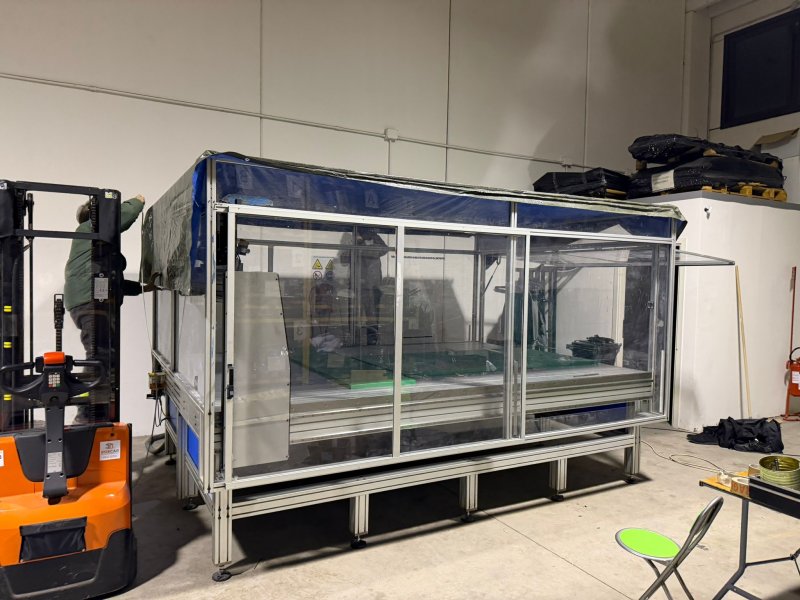

RONCHINI Alustep 2003
- Condition: used
- published: 27/10/2026
- 26IND49774
Technical data
- Condition: used
- Year: 2003
Description
3D pantograph technical specifications:
- 380 volts
- XY work area 3000x2000mm
- Maximum Z-axis travel 430mm
- Machined and assembled aluminum frame
- Precision recirculating ball screws with
preload
...
3D pantograph technical specifications:
- 380 volts
- XY work area 3000x2000mm
- Maximum Z-axis travel 430mm
- Machined and assembled aluminum frame
- Precision recirculating ball screws with
preload
- Sliding on recirculating ball bearings and
ground guides (4 circuits)
- Aluminum worktable with T-slots
for mechanical workpiece fastening
- 2.2kW HF electrospindle 24,000rpm
- XMCPro 3D control software with
direct ISO G-Code file import
- Complete ArtCAM Express CAM software
- Axes driven by brushless motors,
CANOpen control
- Maximum speed 20m/min XY, 12m/min Z
- 230V single-phase power supply
- Network connection to a PC via
port RJ45 standard
- Weight 1800 kg
- Electrical panel integrated on the machine
- Vertically opening front door with
gas springs
- Side doors sliding on rollers
- CE certification in full compliance with
current regulations
- Manuals and documentation in Italian
pcs
1
Chip extraction bell/nozzles
Working
Revised
CE compliant
